2.5mm Pitch JST XAD XADR Dual Row Wire to Board Connector Harness
XADRP-08V, XADRP-10V, XADRP-12V, XADRP-16V
2.5mm Pitch Connector Wire Harness, 2.5mm Pitch Wire Harness, JST XADR Series Wire Harness
FLECONN can custom 2.5mm pitch JST XAD XADR dual row 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 Pin wire to board connector harness.
Product Description
2.5mm Pitch JST XAD XADR Dual Row Wire to Board Connector Harness
Product Description:
FLECONN can custom 2.5mm Pitch JST XAD XADR Dual Row Wire to Board Connector Harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. Housing Series
1.1 2.5mm pitch JST XAD series wire to wire housing
| Circuits | Receptacle Housing |
| 8 | XADRP-08V |
| 10 | XADRP-10V |
| 12 | XADRP-12V |
| 14 | XADRP-14V |
| 16 | XADRP-16V |
| 18 | XADRP-18V |
| 20 | XADRP-20V |
| 22 | XADRP-22V |
| 24 | XADRP-24V |
| 26 | XADRP-26V |
| 28 | XADRP-28V |
| 30 | XADRP-30V |
| 32 | XADRP-32V |
| 34 | XADRP-34V |
| 36 | XADRP-36V |
| 40 | XADRP-40V |
II. Crimp Terminal
XAD Crimp Terminal: SXA-001T-P0.6 /SXA-001T-P0.6 / SXA-01T-P0.6L (Receptacle)
Applicable Wire: 24AWG - 20AWG / 28AWG - 22AWG / 26AWG - 22AWG
0.22mm2~0.5mm2 / 0.08mm2 - 0.332mm / 0.13mm2 - 0.332mm
Insulation OD: 1.5~1.9mm / 0.8~1.9mm / 1.3~1.7mm
III. Product Specifications
1. Electrical Performance:
Rating voltage: 250V AC DC
Rating Current: 3.0A (20AWG)
Applicable Wire: 28AWG - 22AWG / 24AWG - 20AWG
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

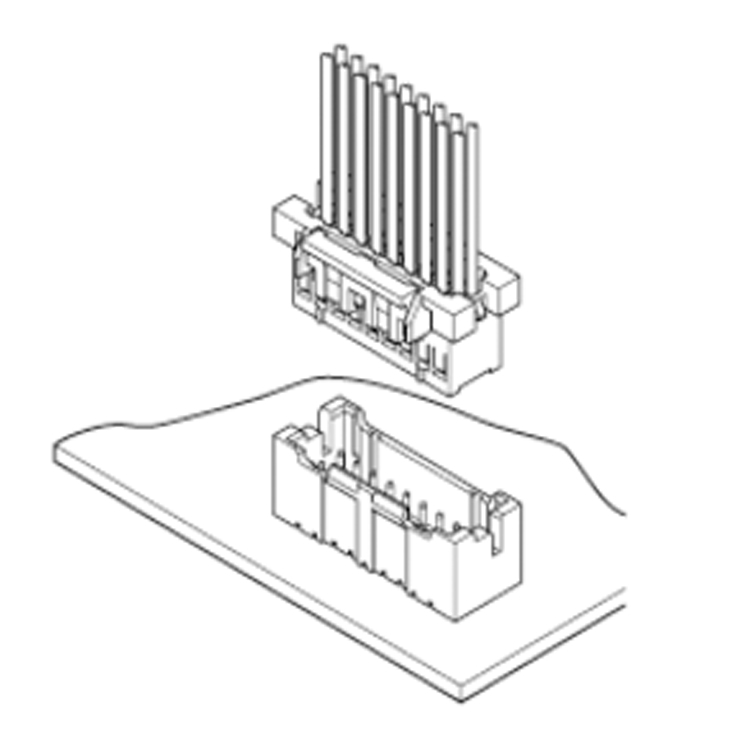

IV. Product Pictures

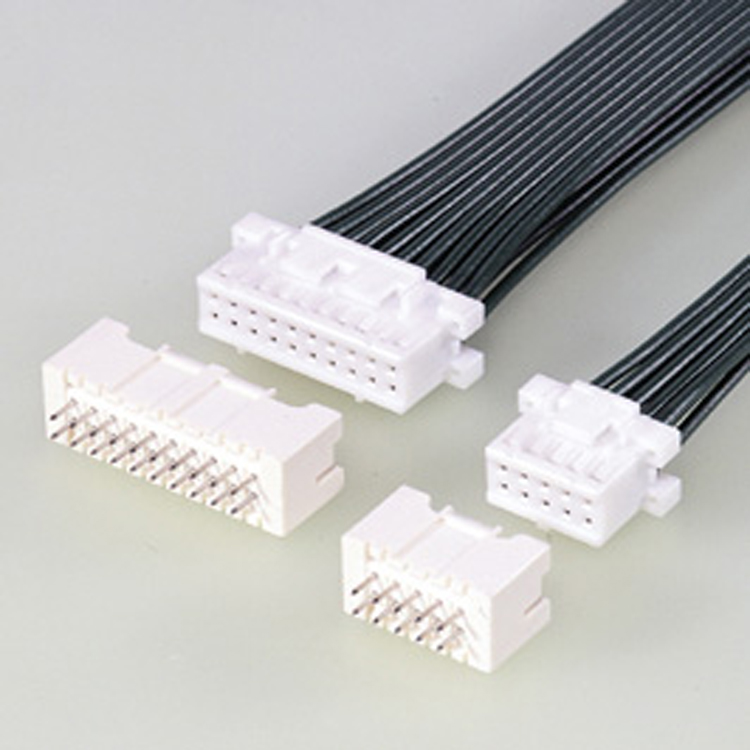

2.5mm Pitch JST XAD XADR Double Row Wire to Board Connector Harness
JST 2.5mm Pitch Connector Wire Harness
Send Inquiry Now!
* Relative Products & 2.5mm Pitch JST XAD XADR Dual Row Wire to Board Connector Harness
-
2.5mm Pitch JST EH EHR Wire Harness with Thin Type Wire to Board Connector
-
2.5mm Pitch JST RCY XA Wire-to-Wire Plug Receptacle Wire Harness
-
JST XNI Series Wire to Board Connector, 2.5mm Pitch Wire Harness Assembly
-
JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness
-
2.5mm Pitch JST XAD 2 Row Wire to Wire Connector Harness
