Product Description

2.5mm Pitch JST RCY XA Wire-to-Wire Plug Receptacle Wire Harness

Product Description:

FLECONN can custom 2 3 4 6 8 pin 2.0mm pitch JST RCY XA series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JSTHousing Series

2.0mm Pitch JST RCY XA series wire to wire connector housing

1.1 2.5mm Pitch JST RCY series wire to wire receptacle housing

1.2 2.5mm Pitch JST RCY series wire to wire plug housing

1.3 2.5mm pitch JST XA series wire to wire receptacle housing

1.4 2.5mm pitch JST XA series wire to wire plug housing

II. Crimp Terminal

RCY Crimp Terminal: SYF-001T-P0.6 (Plug) / SYM-001T-P0.6 (Receptacle)

XA Crimp Terminal: SXA-001T-P0.6 / SXA-001T-P0.6  (Plug) / SXAM-001T-P0.6 / SXAM-001T-P0.6 (Receptacle)

Applicable Wire: 26AWG - 22AWG

Insulation OD: 1.4mm - 1.7mm

III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 250V AC DC
   Rating Current: 3.0A (20AWG)
   Applicable Wire: UL1007 AWG #26 to #20AWG

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

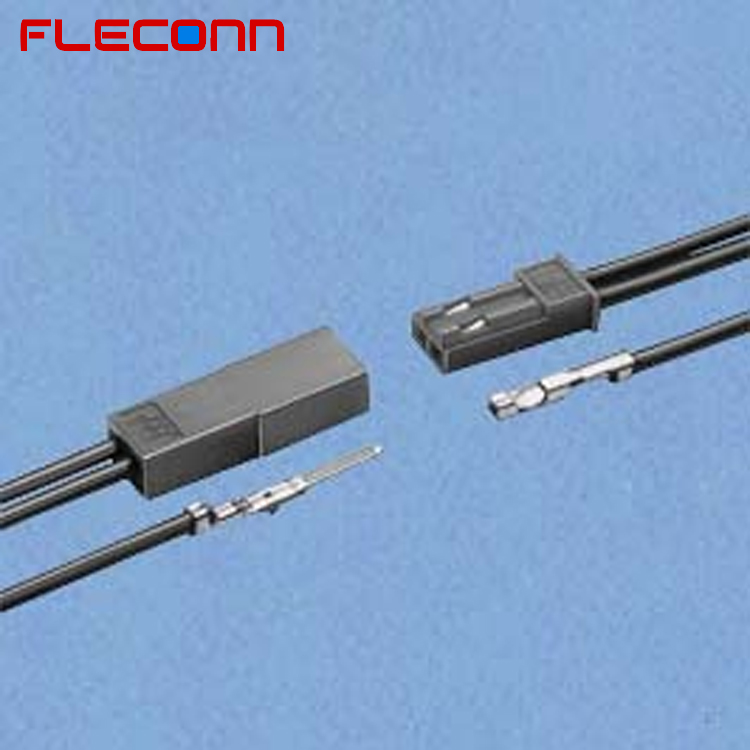

JST 2.5mm Pitch RCY Connector Wire Harness

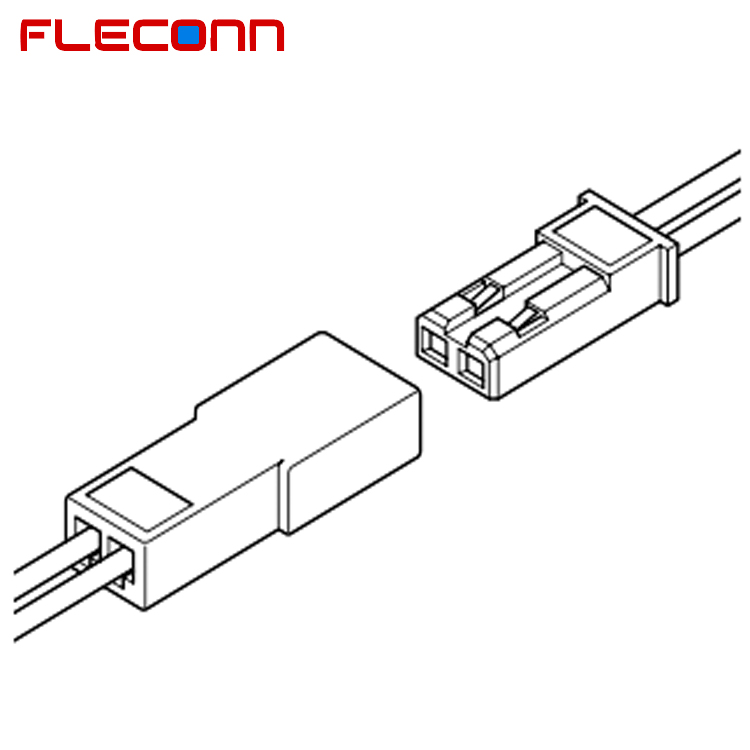

JST 2.5mm Pitch RCY Wire-to-wire Harness

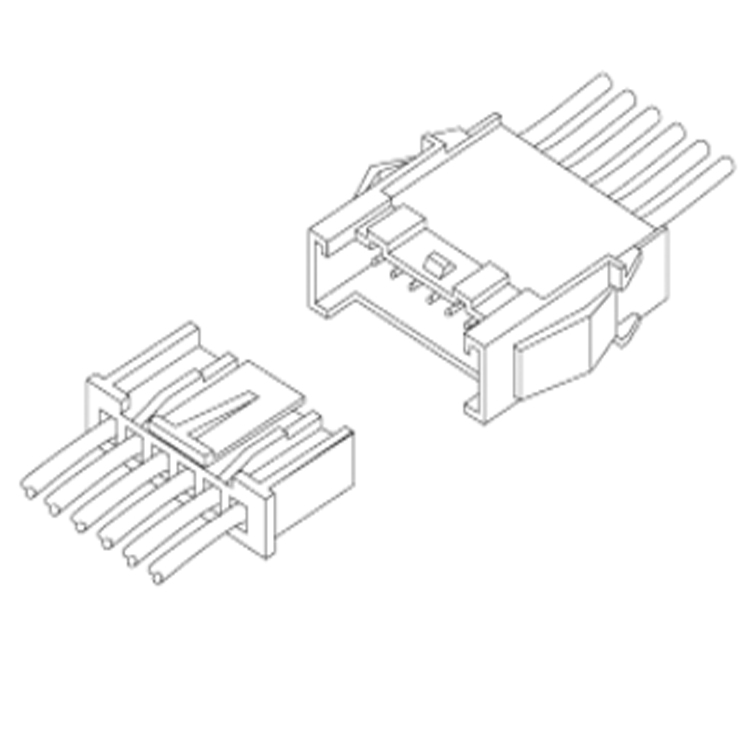

JST 2.5mm Pitch XA Connector Wire Harness

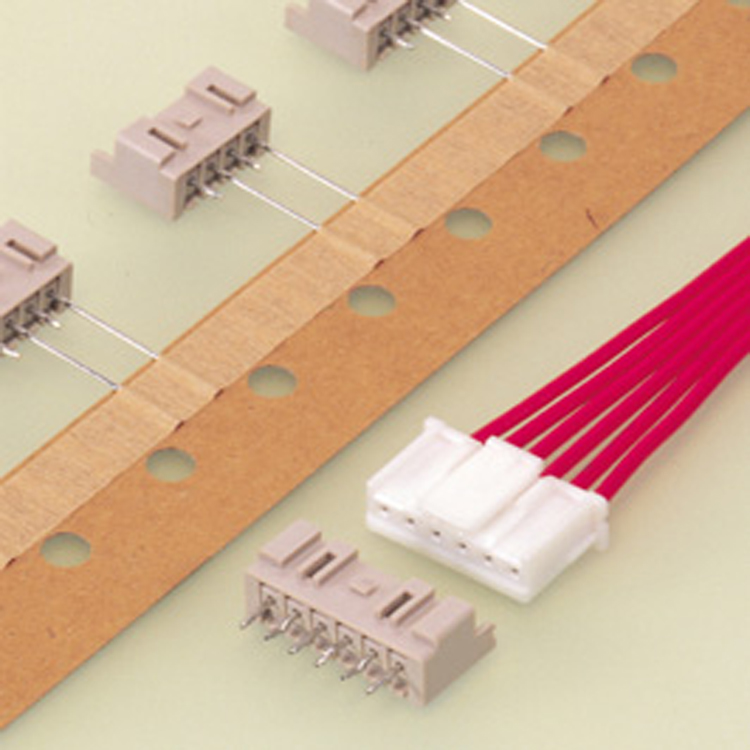

JST 2.5mm Pitch XAP Wire-to-Board Wire Harness

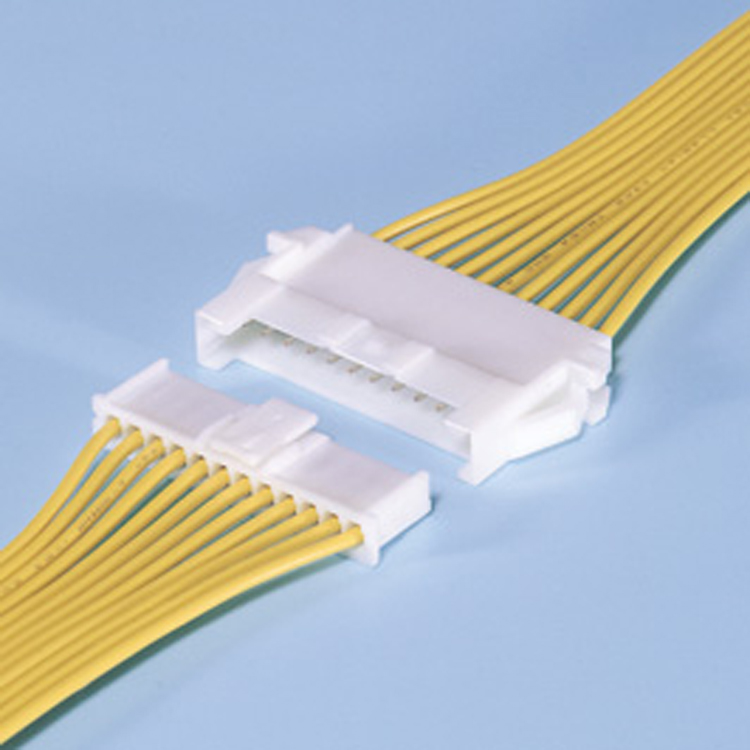

JST XA XAP Wire to Wire Harness
