2.5mm Pitch JST XAD 2 Row Wire to Wire Connector Harness

Part Number:
XADRP-08V, XADRP-10V, XADRP-12V, XADRP-14V

Keywords:
2.5mm Pitch JST XAD Wire Harness, 2.5mm Pitch Wire to Wire Connector Harness, 2.5mm Pitch 2 Row Wire Harness,

Description:
FLECONN can custom 2.5mm pitch JST XAD XADRP Series 2 Row wire to wire connector harness.

General Description:
Pitch: 2.5mm, Current rating: 3A (20AWG), Voltage rating, 250V, Applicable Wire: Conductor size /AWG #28 to #20AWG, Insulation O.D. 0.8mm to 1.9mm, Wire Stype: UL1007, UL1571

Product Description

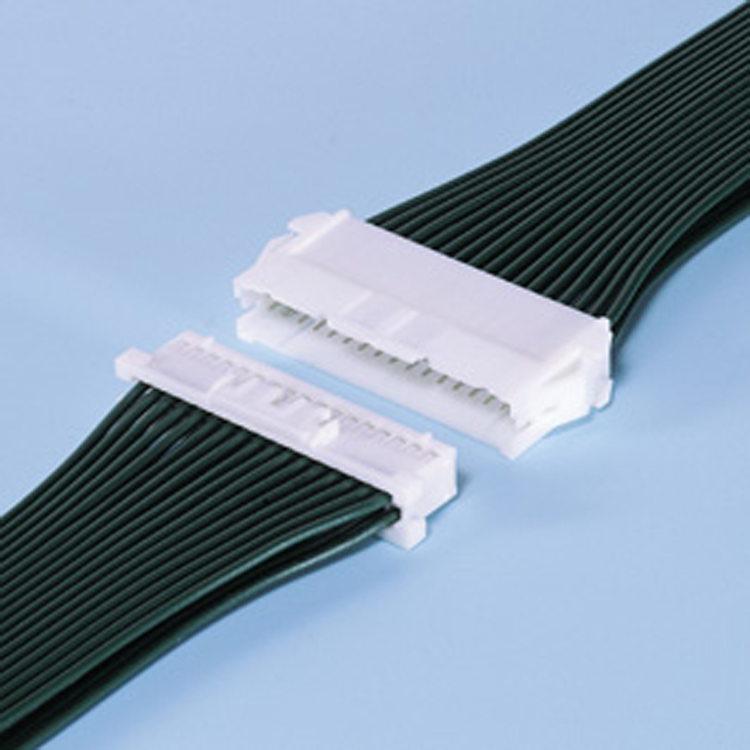

2.5mm Pitch JST XAD 2 Row Wire to Wire Connector Harness

Product Description:

FLECONN can custom 2.5mm pitch JST XAD XADRP Series 2 Row wire to wire connector harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. Housing Series

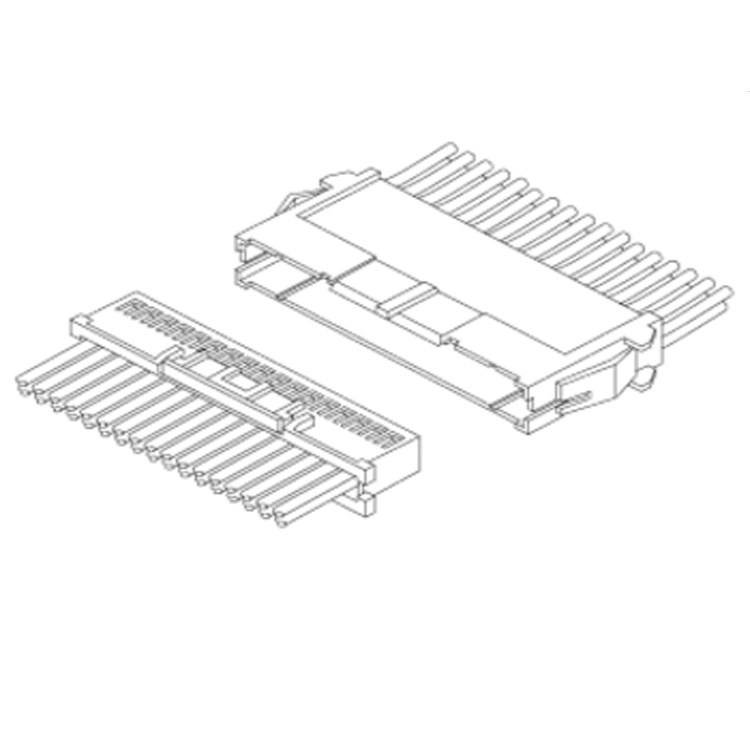

1.1 2.5mm pitch JST XAD series wire to wire housing

Circuits	Receptacle Housing	Plug Housing
8	XADR-08V	XADRP-08V
10	XADR-10V	XADRP-10V
12	XADR-12V	XADRP-22V
14	XADR-14V	XADRP-14V
16	XADR-16V	XADRP-16V
18	XADR-18V	XADRP-18V
20	XADR-20V	XADRP-20V
22	XADR-22V	XADRP-22V
24	XADR-24V	XADRP-24V
26	XADR-26V	XADRP-26V
28	XADR-28V	XADRP-28V
30	XADR-30V	XADRP-30V
32	XADR-32V	XADRP-32V
34	XADR-34V	XADRP-34V
36	XADR-36V	XADRP-36V
40	XADR-40V	XADRP-40V
