JST 1.0 mm Pitch 20 Pin NSHD Dual Row Wire Harness, NSHDR-20V-Z

Part Number:
NSHDR-16V-Z, NSHDR-20V-Z, NSHDR-24V-Z

Keywords:
1.0 mm Pitch 20 Pin Wire Harness, 20 Pin Dual Row Wire Harness, JST NSHD Connector Wire Harness

Description:
FLECONN can customize JST 1.0 mm Pitch 20 Pin NSHD Dual Row Wire Harness with NSHDR-20V-Z housing

General Description:
Pitch: 1.0mm, Current rating: 0.5-1A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.4 to 0.8mm, Wire Stype: UL1571, UL1061

Product Description

1.0mm Pitch JST SH Connector Wire Harness, 2 3 4 5 6 7 8 9 10 Pin

Product Description:

FLECONN can custom jst NSHD series dual row connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JST Housing Series

Circuits	Housing
16	NSHDR-16V-Z
20	NSHDR-20V-Z
24	NSHDR-24V-Z
28	NSHDR-28V-Z
32	NSHDR-32V-1-Z
40	NSHDR-40V-1-Z

II. Crimp Terminal

Crimp Terminal: SNSHD-003T-P0.2

Applicable conductor size: 32AWG - 28AWG

Insulation OD: 0.4mm - 0.8mm

III. Product Specifications

1. Electrical Performance:
Rating voltage: 50V AC DC
Rating Current: 0.5 - 1.0A
Applicable Wire: UL1571, UL1061 AWG #32 to #28AWG

2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

IV. Product Pictures

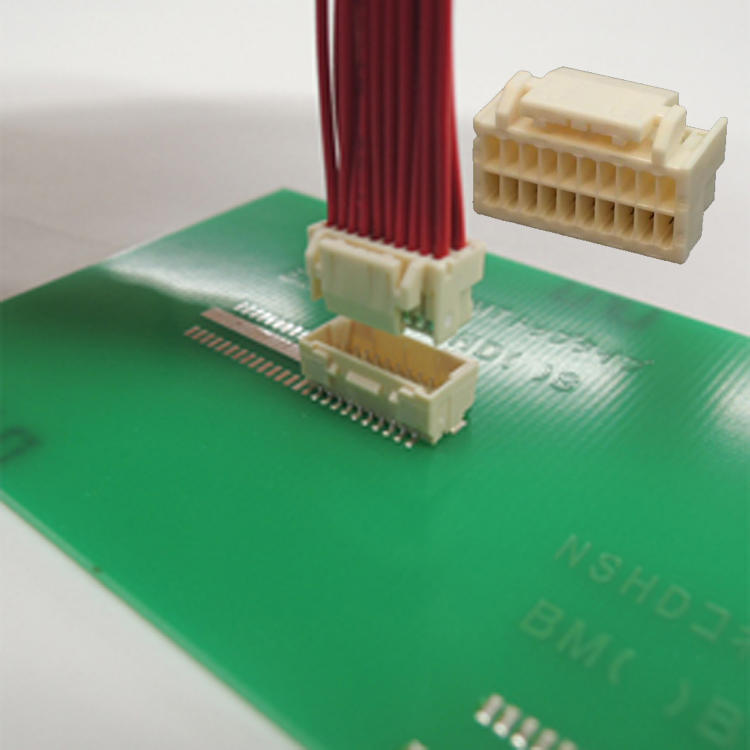

JST 1.0 mm Pitch 20 Pin Wire Harness with NSHDR-20V-Z housing

JST 1.0 mm Pitch NSHDR-20V-Z 20 Pin Wire Harness.jpg

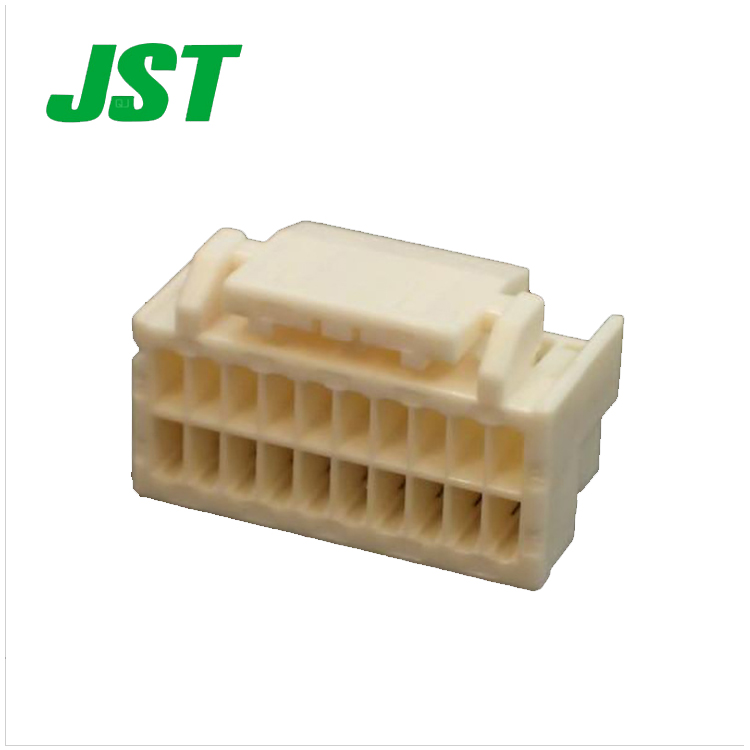

JST 1.0 mm Pitch NSHD Dual Row Wire Harness

JST 1.0 mm Pitch NSHD Dual Row Wire Harness.jpg

JST 1.0 mm Pitch 20P Connector Wire Harness

JST 1.0 mm Pitch 20P Connector Wire Harness.jpg
