Home > Products > Custom Cable Assembly >Wire Harness Manufacturer >1.0mm Pitch Connector Wire Harness

Send Inquiry Now

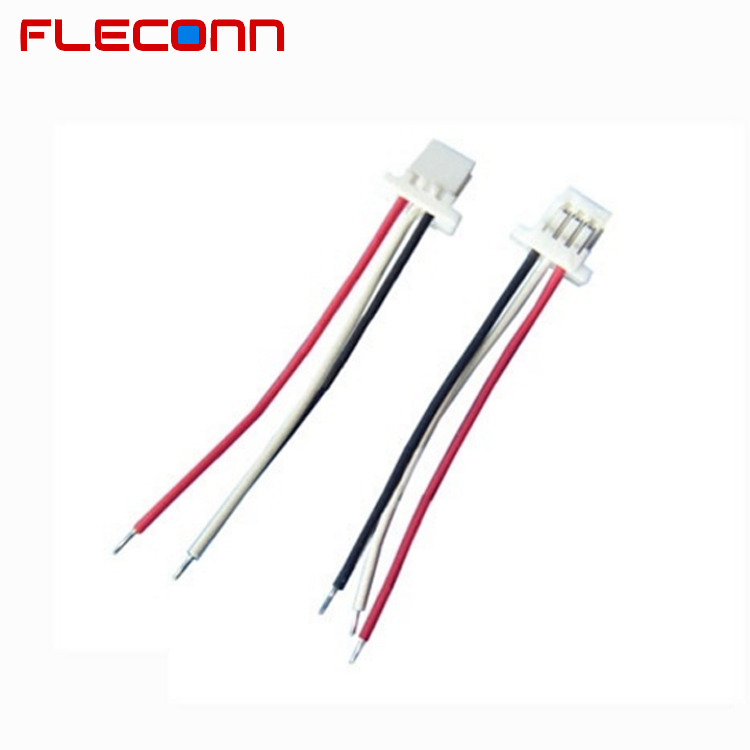

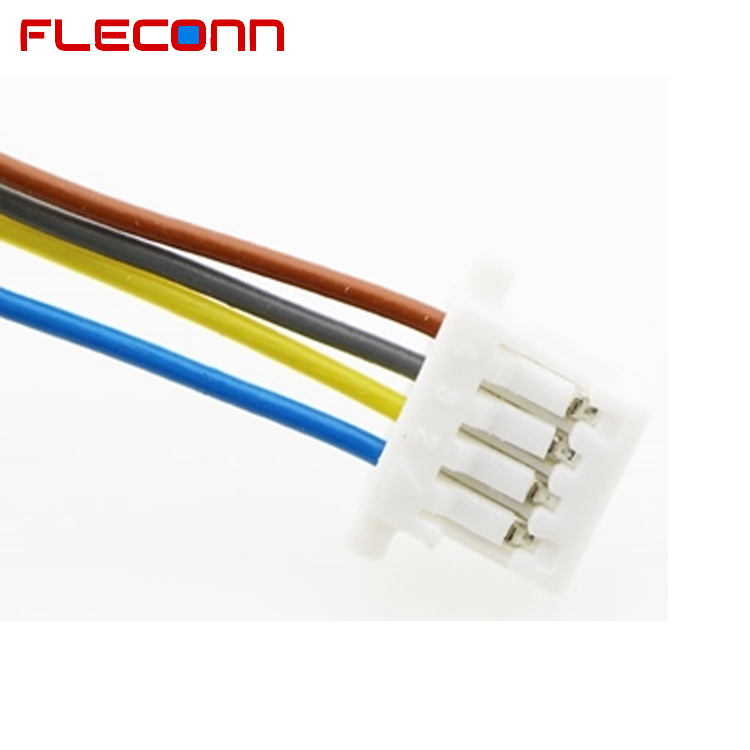

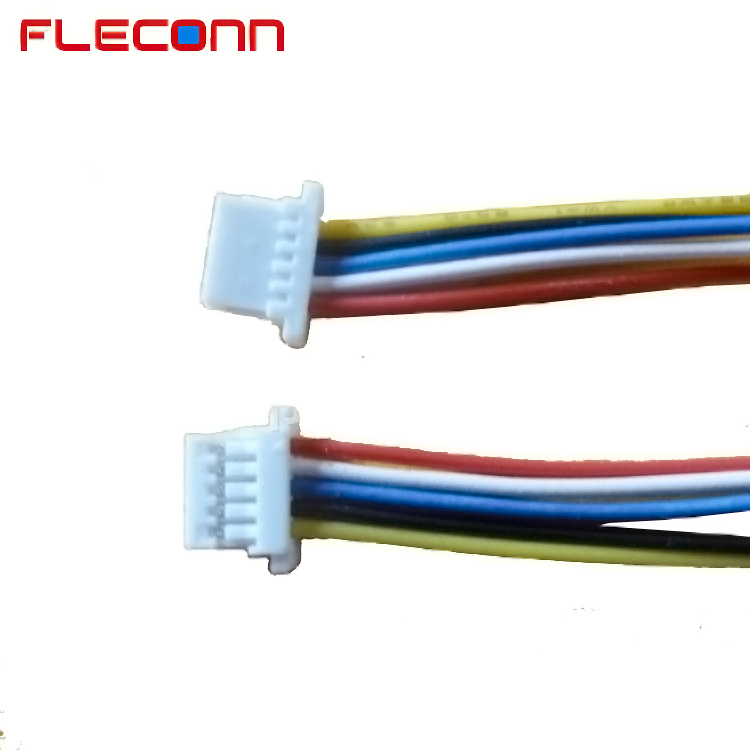

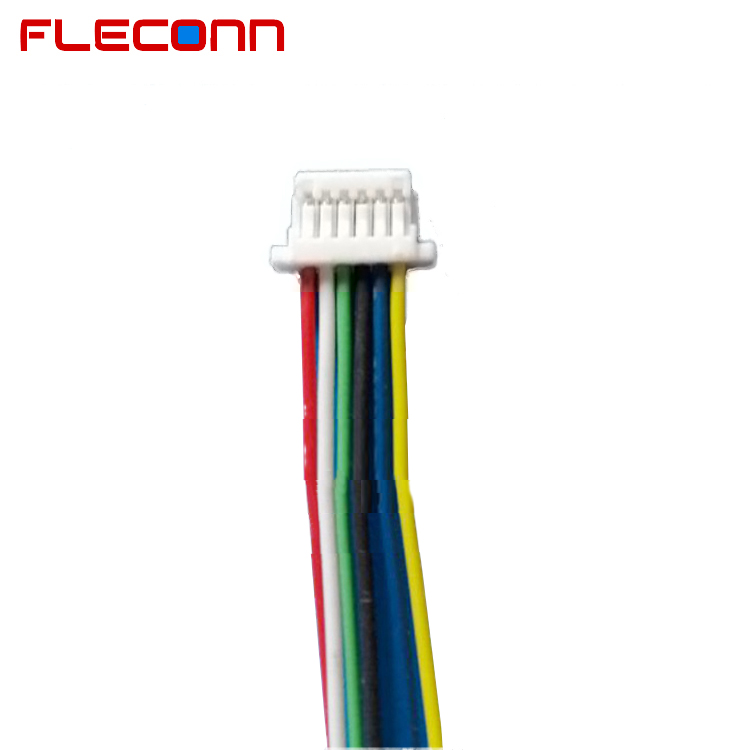

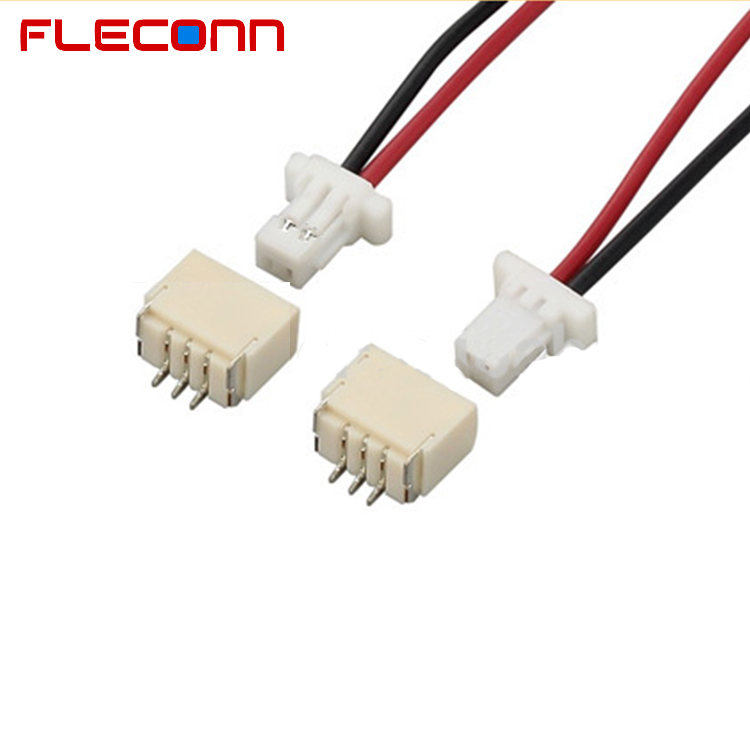

1.0mm Pitch JST SH Connector Wire Harness, 2 3 4 5 6 7 8 9 10 Pin

Part Number:
SHR-02V-S-B, SHR-03V-S-B, SHR-04V-S-B, SHR-05V-S-B

Keywords:
1.0 mm Pitch Connector Wire harness, JST SH Connector Wire Harness, JST 3 Pin Wire Harness

Description:
FLECONN can custom 1.0mm Pitch JST SH Connector Wire Harness with 2 3 4 5 6 7 8 9 10 circuits

General Description:
Pitch: 1.0mm, Current rating: 0.5-1A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.4 to 0.8mm

Product Description

1.0mm Pitch JST SH Connector Wire Harness, 2 3 4 5 6 7 8 9 10 Pin

Product Description:

FLECONN can custom jst SH series wire-to-board connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JST Housing Series

Circuits	Housing (With Protrusions	Housing (Without Protrusions)
2	SHR-02V-S-B	SHR-02V-S
3	SHR-03V-S-B	SHR-03V-S
4	SHR-04V-S-B	SHR-04V-S
5	SHR-05V-S-B	SHR-05V-S
6	SHR-06V-S-B	SHR-06V-S
7	SHR-07V-S-B	SHR-07V-S
8	SHR-08V-S-B	SHR-08V-S
9	SHR-09V-S-B	SHR-09V-S
10	SHR-10V-S-B	SHR-10V-S
11	SHR-11V-S-B	SHR-11V-S
12	SHR-12V-S-B	SHR-12V-S
13	SHR-13V-S-B	SHR-13V-S
