Product Description

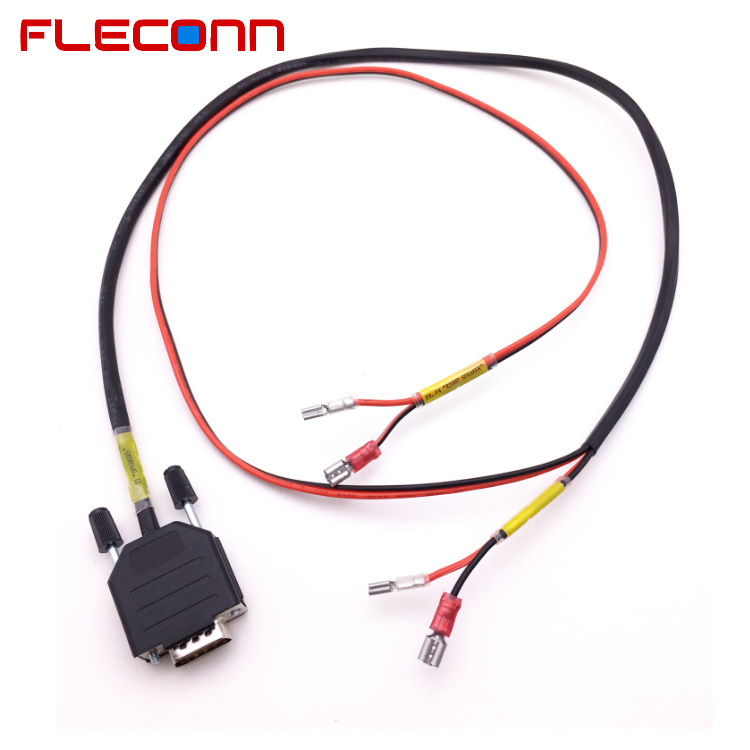

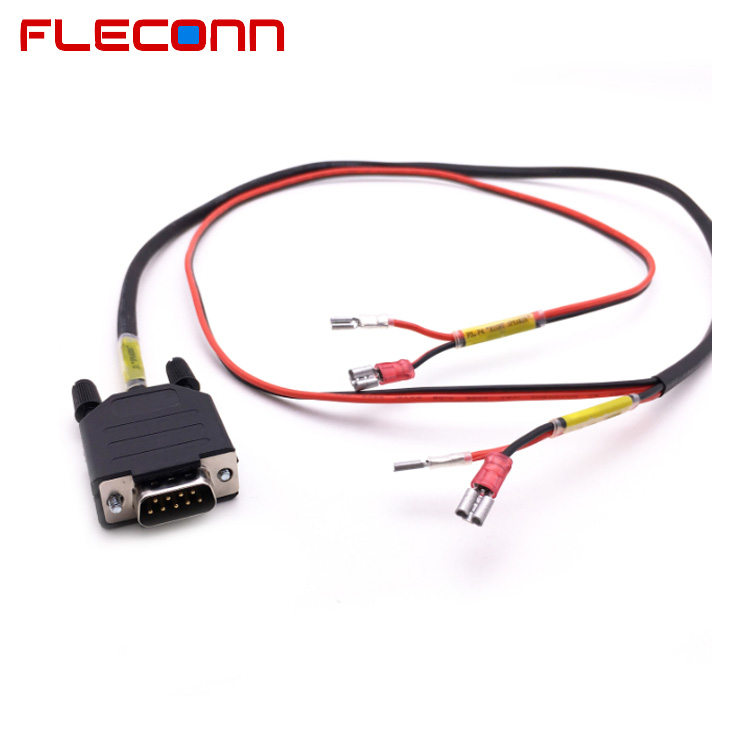

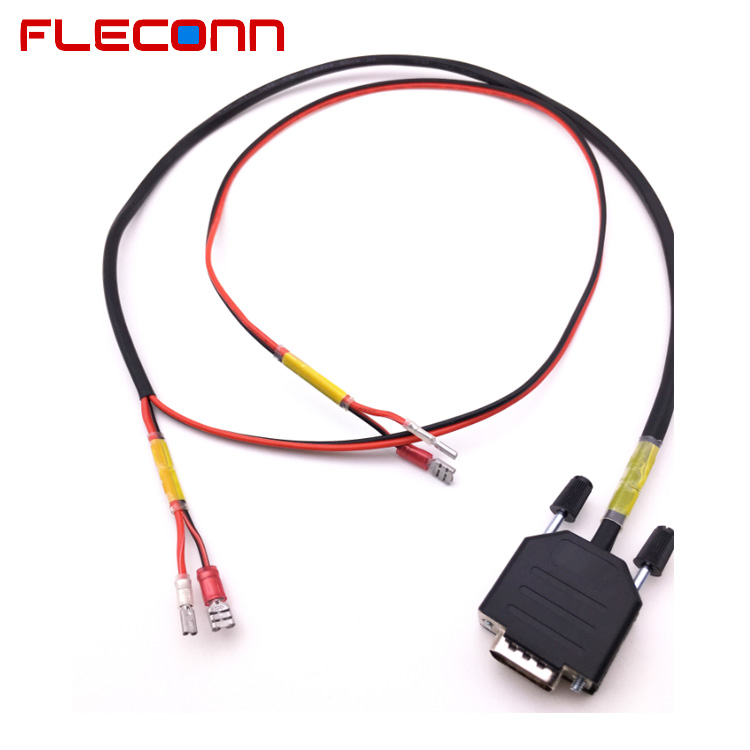

Custom 9 Pin Pole DB9 Male Connector Cable Harness with UL2468 18AWG Wire

FLECONN can custom 9 pin pole db9 male connector cable harness with ul2468 18awg wire.

9. Pin DB9 male connector cable assembly process

1. 9 pole db9 male connector cable parts

 1.1 Cable

1. 2-core 18AWG unshielded MINIMUM 20 STRANDS (DC power cable red/black) – 600mm (left

speaker)

(PRO POWER CB0045 RED/BLACK, Element14 1717979)

2. 2-core 18AWG unshielded MINIMUM 20 STRANDS (DC power cable red/black) – 1150mm

(right speaker)

(PRO POWER CB0045 RED/BLACK, Element14 1717979)

1.2 Termination J1 Parts

. D Sub 9-way MALE Solder Cup

AMPHENOL G17S0910110EU (Element14 1849899) or equivalent.

. D Sub Backshell, Size DE, Black, Nylon with manual screws

ENCITECH DPPK09-BK-K (Element 14 2135585) or equivalent.

1.3 Termination P1 Parts

1. TERMINAL, FEMALE QUICK DISCONNECT, 5.21mm x 0.51mm,

(TE CONNECTIVITY 8-640909-1)

1.4 Termination P2 Parts

1. TERMINAL, FEMALE QUICK DISCONNECT, 2.79mm x 0.51mm,

(TE CONNECTIVITY 61060-1)

1.5 Termination P3 Parts

1. TERMINAL, FEMALE QUICK DISCONNECT, 5.21mm x 0.51mm,

(TE CONNECTIVITY 8-640909-1)

1.6 Termination P4 Parts

1. TERMINAL, FEMALE QUICK DISCONNECT, 2.79mm x 0.51mm,

(TE CONNECTIVITY 61060-1)

2. D-sub 9 way male connector wire harness assembly

 2.1 Assembly J1

. Strip cores wires over 2mm

. Twist core wire ends and tin as required

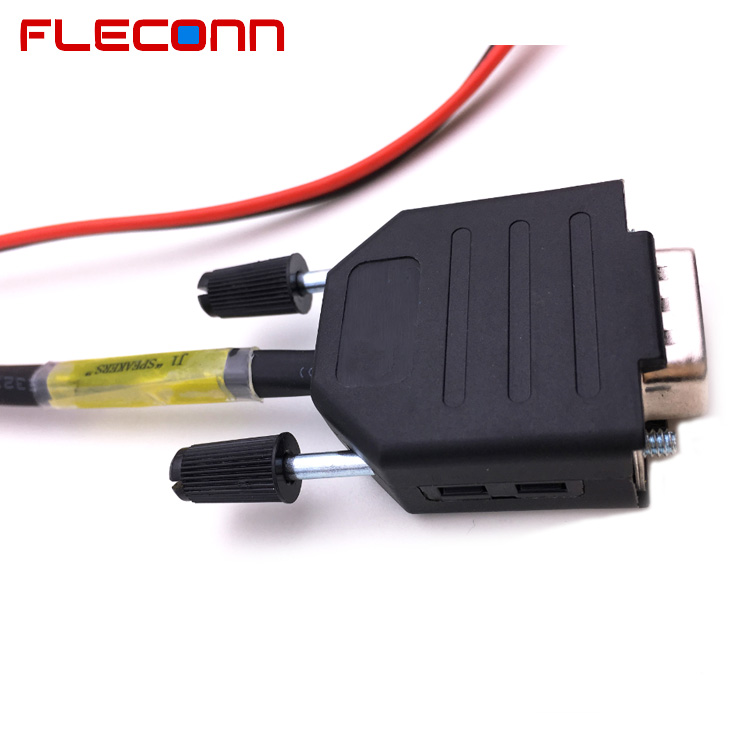

. Add label “SPEAKERS” onto cable and cover with clear heatshrink.

. Solder core wires into D-sub solder cups as per connection details.

. Put D-sub into shell.

. Attach strain relief.

. Complete shell assembly.

2.2 Assembly P1, P2

. Strip core wires over 5mm

. Twist core wire end together

. Add label “LEFT SPEAKER” onto cable and cover with clear heatshrink.

. Slide narrow crimp terminal over red core end and crimp.

. Slide larger crimp terminal over black core end and crimp.

2.3 Assembly P3, P4

. Strip core wires over 5mm

. Twist core wire end together

. Add label “RIGHT SPEAKER” onto cable and cover with clear heatshrink.

. Slide narrow crimp terminal over red core end and crimp.

. Slide larger crimp terminal over black core end and crimp.

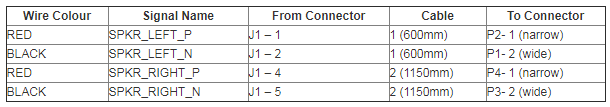

3. 9 Pin DB9 Cable Wiring Connection Details
