Custom Molex 2139 Series KK 3.96mm Connector Wire Harness
09-50-3021, 09-50-3031, 09-50-3041, 09-50-3051
Custom KK 3.96mm Wire Harness, Molex 2139 Series Wire Harness, Molex KK Connector Wire Harness
FLECONN can custom molex 2139 series KK 3.96mm connector wire harness with friction ramp housing.
Product Description
Custom Molex 2139 Series KK 3.96mm Connector Wire Harness
Product Description:
FLECONN can custom molex 2139 series KK 3.96mm connector wire harness with friction ramp housing for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
KK 396 Connector Wire Harness
Delivering 7.0A and 600V per circuit in an industry-standard 3.96mm pitch, power application KK 396 connectors are ideal for low- to mid-power wire-to-board and board-to-board applications
I. Housing Series
1.1 Molex 2139 Series KK 3.96mm pitch wire-to-board housing
| Circuits | Housing | ENG. NO. |
| 2 | 09-50-3021 | 2139-2A |
| 3 | 09-50-3031 | 2139-3A |
| 4 | 09-50-3041 | 2139-4A |
| 5 | 09-50-3051 | 2139-5A |
| 6 | 09-50-3061 | 2139-6A |
| 7 | 09-50-3071 | 2139-7A |
| 8 | 09-50-3081 | 2139-8A |
| 9 | 09-50-3091 | 2139-9A |
| 10 | 09-50-3101 | 2139-10A |
| 11 | 09-50-3111 | 2139-11A |
| 12 | 09-50-3121 | 2139-12A |
| 13 | 09-50-3131 | 2139-13A |
| 14 | 09-50-3141 | 2139-14A |
| 15 | 09-50-3151 | 2139-15A |
| 16 | 09-50-3161 | 2139-16A |
| 17 | 09-50-3171 | 2139-17A |
| 18 | 09-50-3181 | 2139-18A |
| 19 | 09-50-3191 | 2139-19A |
| 20 | 09-50-3201 | 2139-20A |
| 21 | 09-50-3211 | 2139-21A |
| 22 | 09-50-3221 | 2139-22A |
| 23 | 09-50-3231 | 2139-23A |
| 24 | 09-50-3241 | 2139-24A |
II. Crimp Terminal
Crimp Terminal: 2478-1(P909) (08-50-0105) / 2578-(P909) (08-50-0107)
Applicable Wire: 24AWG - 18AWG / 26AWG - 22AWG
Insulation OD: 2.79mm max / 1.65mm max
III. Product Specifications
1. Electrical Performance:
Rating voltage: 600V AC
Rating Current: 7A (18AWG)
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS
IV. Product Pictures

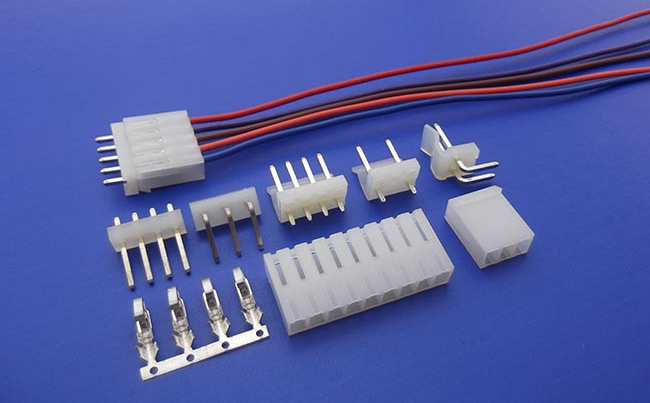

custom molex 2139 series KK 3.96mm connector wire harness with friction ramp housing
