3.96mm Pitch JST VHR-6N VHR 6 Pin Connector Wiring Harness
VHR-6N
6 Pin Wiring Harness, 3.96mm Pitch 6 Pin Wiring Harness, JST 6 Pin VH Connector Wiring Harness
FLECONN can custom 3.96mm Pitch JST VHR-6N VHR 6 Pin / Way / circuit / Position Connector Wiring Harness.
Product Description
3.96mm Pitch JST VHR-6N VHR 6 Pin Connector Wiring Harness
Product Description:
FLECONN can custom 3.96mm pitch JST VHR-6N VHR 6 pin / way / circuit / position connector wiring harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. Housing Series
1.1 3.96mm pitch JST VH series wire-to-board housing
| Circuits | Receptacle Housing |
| 2 | VHR-2N |
| 3 | VHR-3N |
| 4 | VHR-4N |
| 5 | VHR-5N |
| 6 | VHR-6N |
| 7 | VHR-7N |
| 8 | VHR-8N |
| 9 | VHR-9N |
| 10 | VHR-10N |
| 11 | VHR-11N |
II. Crimp Terminal
Crimp Terminal: SVH-21T-P1.1 / SVH-41T-P1.1
Applicable Wire: 22AWG - 28AWG / 20AWG - 16AWG
Insulation OD: 1.7mm - 3.0mm / 1.7mm - 3.0mm
III. Product Specifications
1. Electrical Performance:
Rating voltage: 250V AC DC
Rating Current: 10A (16AWG)
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS
IV. Product Pictures

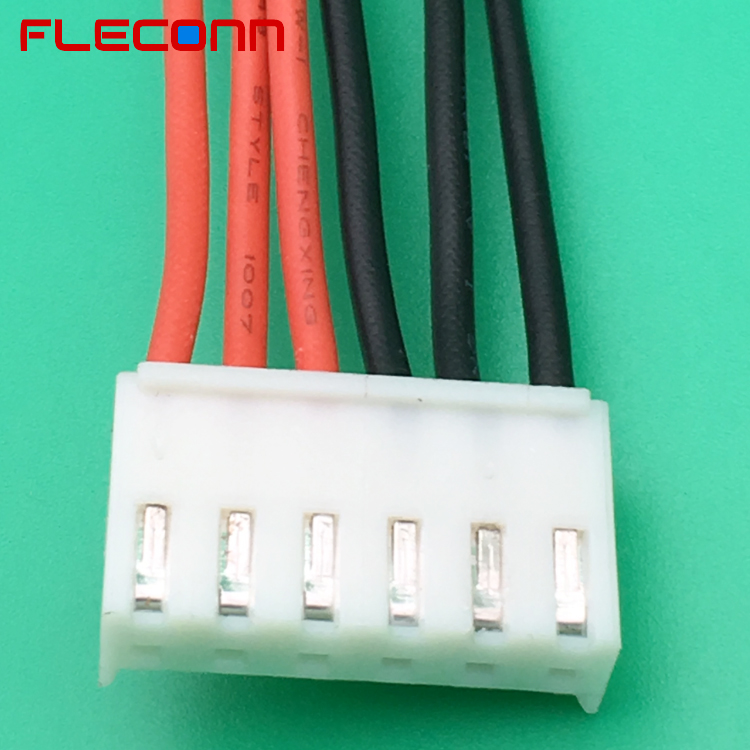

3.96mm Pitch JST VHR-6N 6 Pin Connector Wire Harness

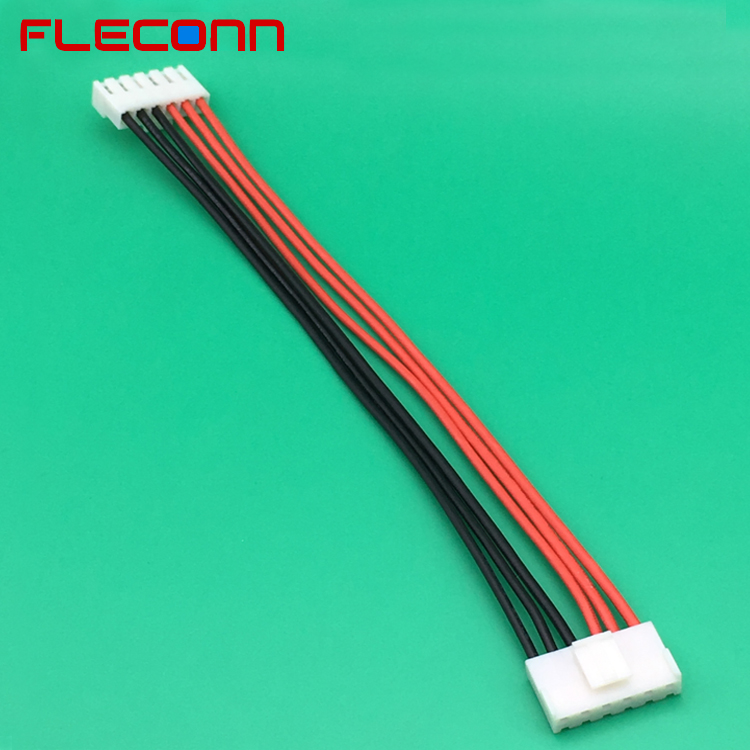

JST 3.96mm Pitch VH 6P Wiring Harness

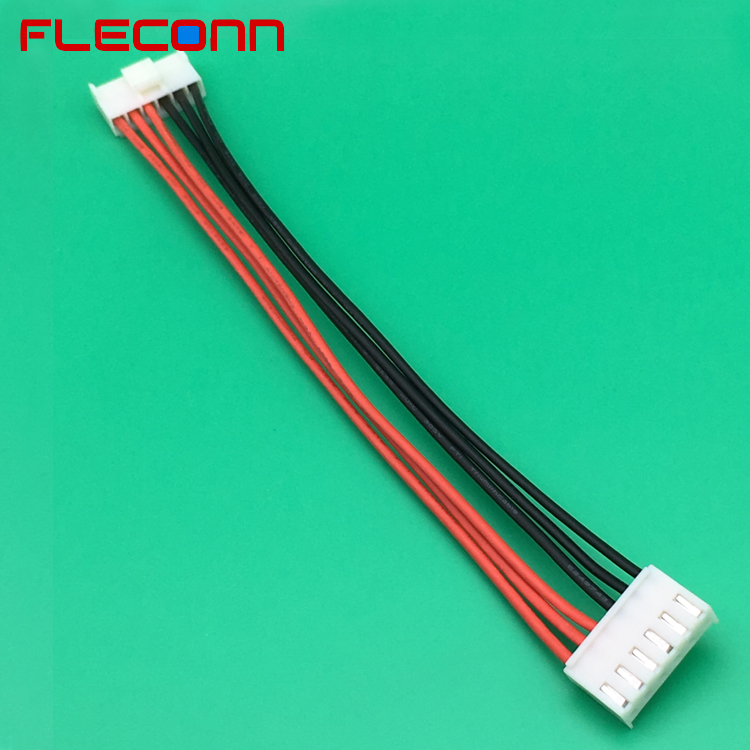

6 Postion JST VH 3.96mm Pitch Wiring Harness

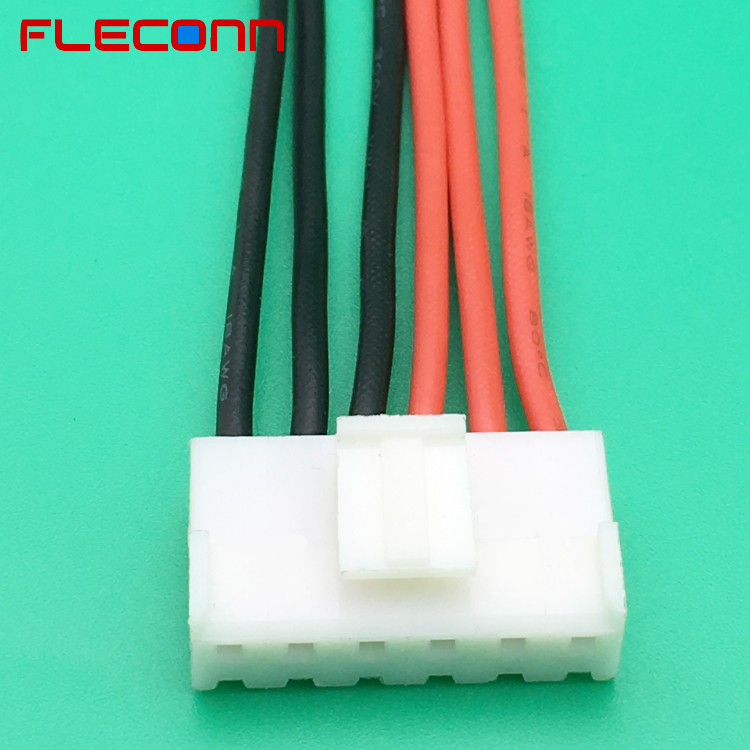

JST 3.96 mm Pitch VHR 6N Wire Harness

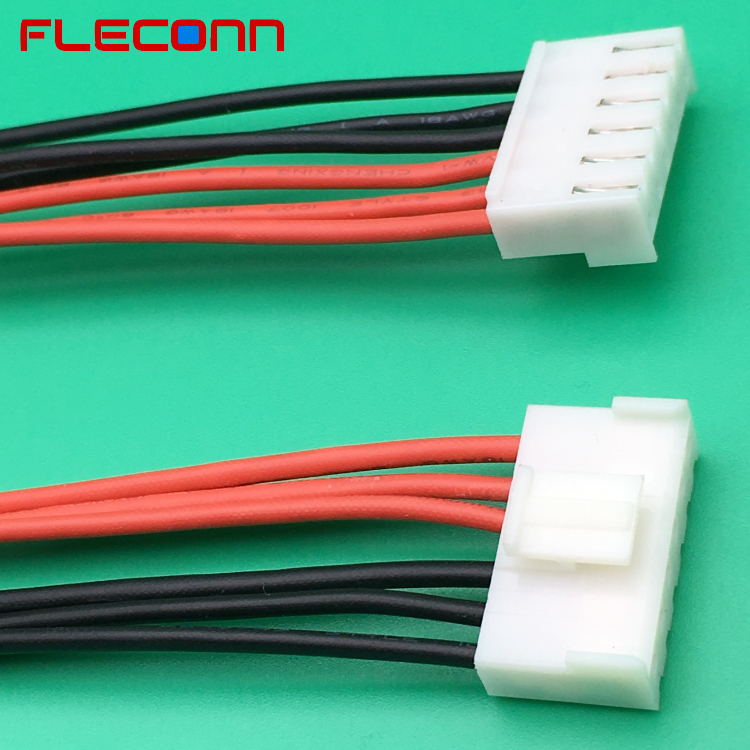

JST VH 6 Way Circuit Wiring Harness
JST VH Series 6 Pin Wire Harness
