Home > Products > Custom Cable Assembly >Wire Harness Manufacturer >1.5mm Pitch Connector Wire Harness

Send Inquiry Now

1.5mm Pitch 2 Two Dual Double Row JST ZPD Connector Wire Harness

Part Number:
ZPDR-10V-S, ZPDR-12V-S, ZPDR-16V-S, ZPDR-20V-S

Keywords:
JST ZPD Connector Wire Harness, 1.5mm Pitch Dual Row Wire Harness, doulbe row connector wire harness

Description:
FLECONN can custom 1.5mm Pitch 2 Two Dual Double Row JST ZPD Connector Wire Harness with the housing of ZPDR-10V-S, ZPDR-12V-S, ZPDR-14V-S, ZPDR-16V-S, ZPDR-18V-S, ZPDR-20V-S etc.

General Description:
Pitch: 1.5mm, Current rating: 1.5-2A, Voltage rating, 100V, Applicable Wire: Conductor size /AWG #28 to #24AWG, Insulation O.D. 0.76 to 1.2mm, Wire Stype: UL1571, UL1061

Product Description

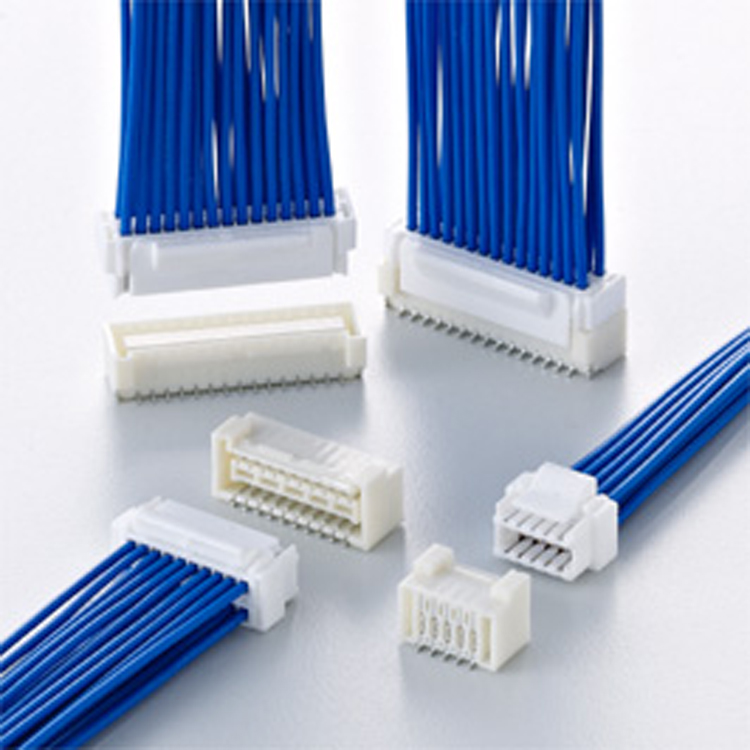

1.5mm Pitch 2 Two Dual Double Row JST ZPD Connector Wire Harness

Product Description:

FLECONN can custom 10 pin - 40 pin 1.5mm pitch JST ZPD series 2 / two / dou row connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JSTHousing Series

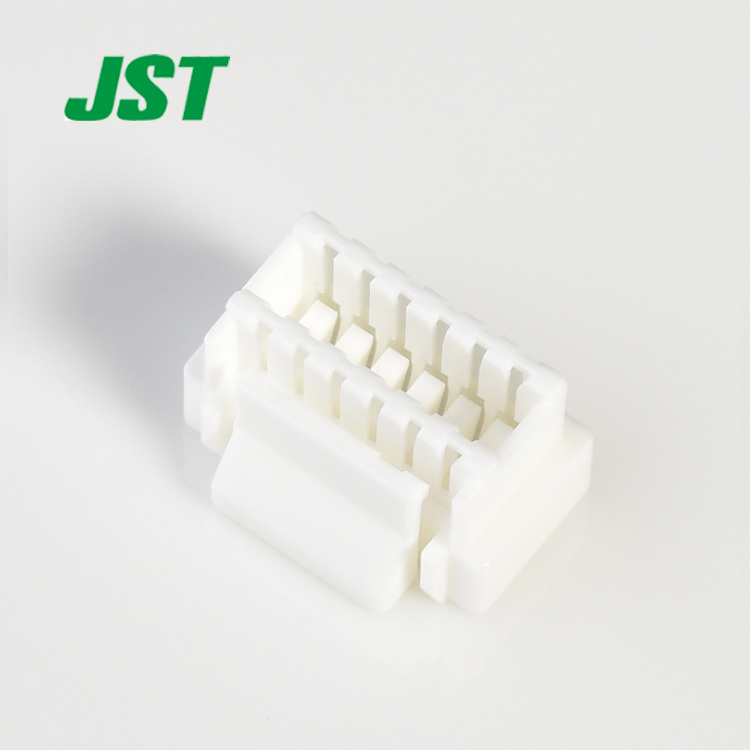

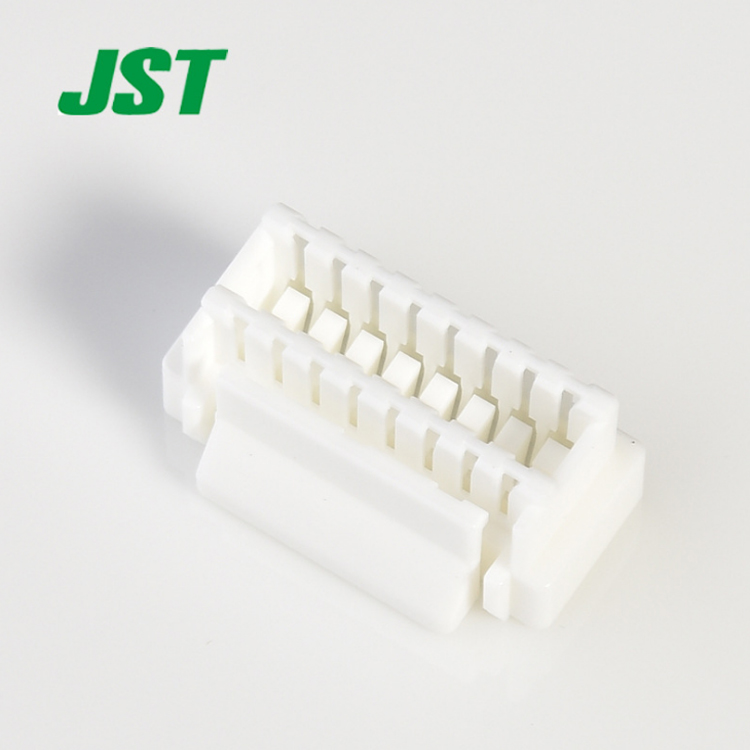

1.5mm Pitch JST ZPD series wire to board connector housing

Circuits	Housing
10	ZPDR-10V-S
12	ZPDR-12V-S
14	ZPDR-14V-S
16	ZPDR-16V-S
18	ZPDR-18V-S
20	ZPDR-20V-S
22	ZPDR-22V-S
24	ZPDR-24V-S
28	ZPDR-28V-S
30	ZPDR-30V-S
32	ZPDR-32V-S
34	ZPDR-34V-S
36	ZPDR-36V-S
38	ZPDR-38V-S
40	ZPDR-40V-S
