JST ZH Seiries ZHR-9 9 Pin 1.5mm pitch Connector Wiring Harness
ZHR-2, ZHR-3, ZHR-4, ZHR-5, ZHR-6, ZHR-8, ZHR-9
1.5mm Pitch Connector Wire Harness, JST ZH Connector Wire Harness, 1.5mm Pitch ZH Series Wire Harness
FLECONN can custom JST ZH Seiries 1.5mm pitch Connector Wiring Harness with the housing of ZHR-2, ZHR-3, ZHR-4, ZHR-5, ZHR-6, ZHR-8, ZHR-9.
Product Description
JST ZH Seiries ZHR-9 9 Pin 1.5mm pitch Connector Wiring Harness
Product Description:
FLECONN can custom 2 pin - 13pin 1.5mm pitch JST ZH series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. JSTHousing Series
1.5mm Pitch JST ZH series wire to board connector housing
| Circuits | Housing |
| 2 | ZHR-2 |
| 3 | ZHR-3 |
| 4 | ZHR-4 |
| 5 | ZHR-5 |
| 6 | ZHR-6 |
| 7 | ZHR-7 |
| 8 | ZHR-8 |
| 9 | ZHR-9 |
| 10 | ZHR-10 |
| 11 | ZHR-11 |
| 12 | ZHR-12 |
| 13 | ZHR-13 |
II. Crimp Terminal
Crimp Terminal: SZH-002T-P0.5 / SZH-003T-P0.5
Applicable conductor size: 28AWG - 26AWG / 32AWG - 28AWG
Insulation OD: 0.8mm - 1.1mm / 0.5mm - 0.9mm
III. Product Specifications
1. Electrical Performance:
Rating voltage: 50V AC DC
Rating Current: 1.0A
Applicable Wire: UL1571, UL1061 AWG #32 to #26AWG
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS
IV. Product Pictures

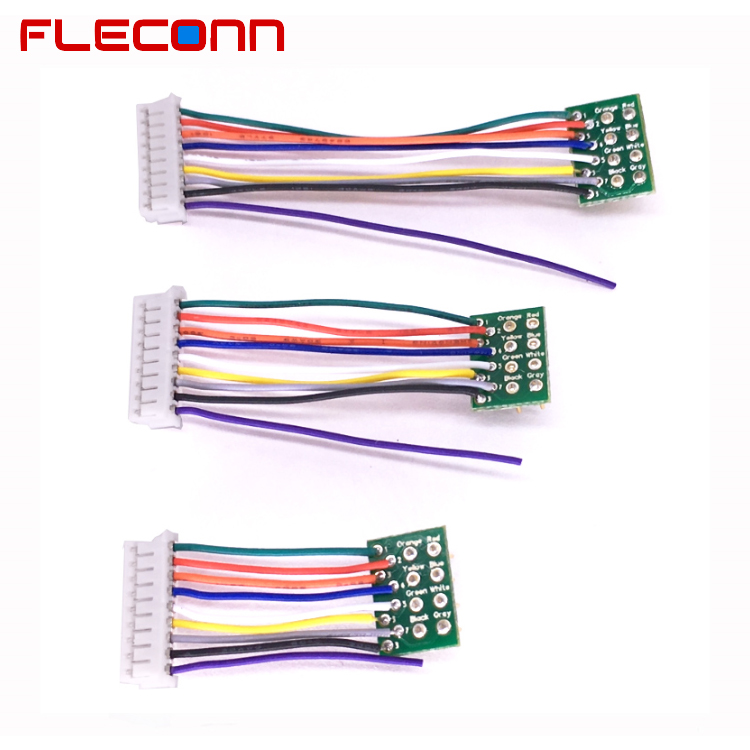

1.5mm Pitch JST 9 Pin Connector Wiring Harness

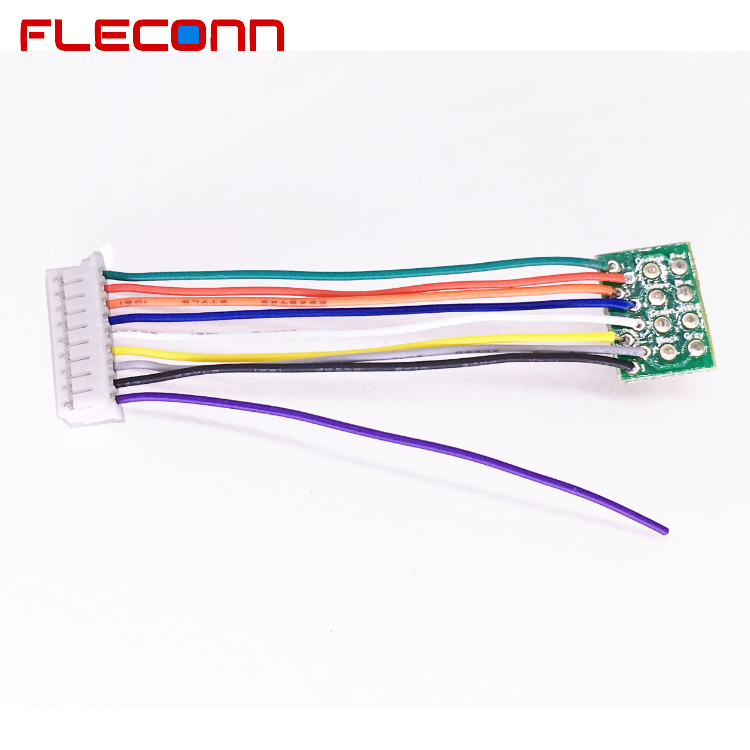

9 Pin Wire to Board Connector Wire Harness

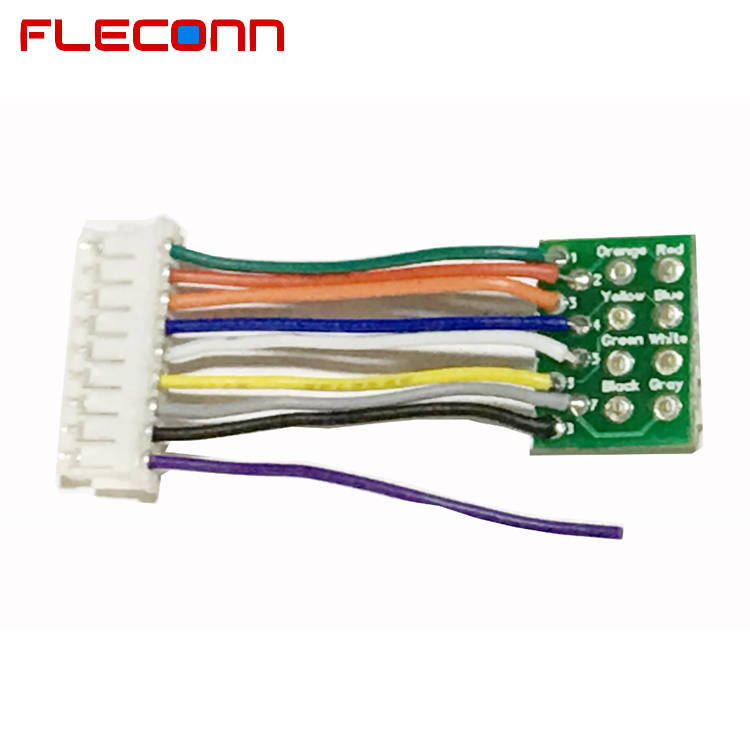

JST 9 Pin Connector Wire Harnes

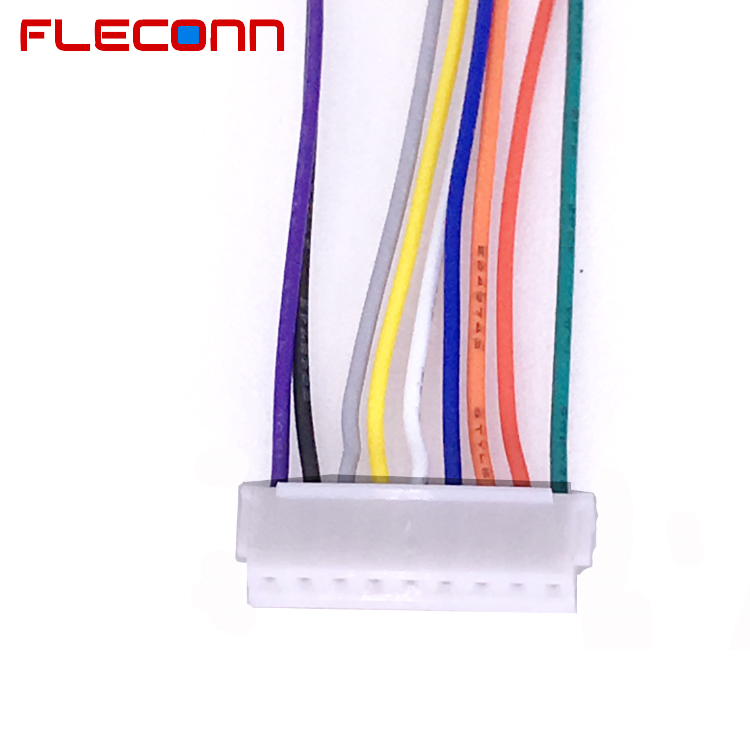

JST 9 Pin Wiring Harness

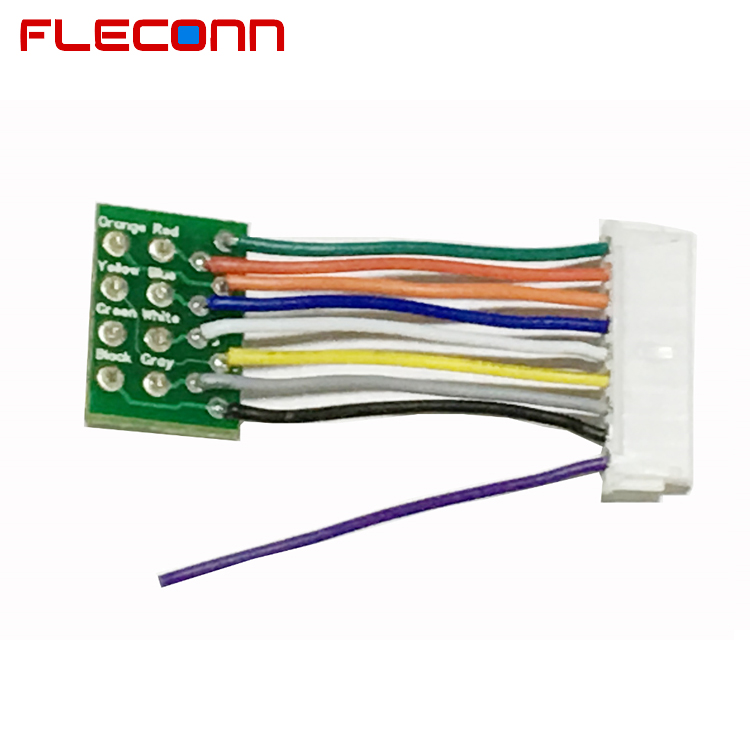

JST ZH Series Wiring Harness

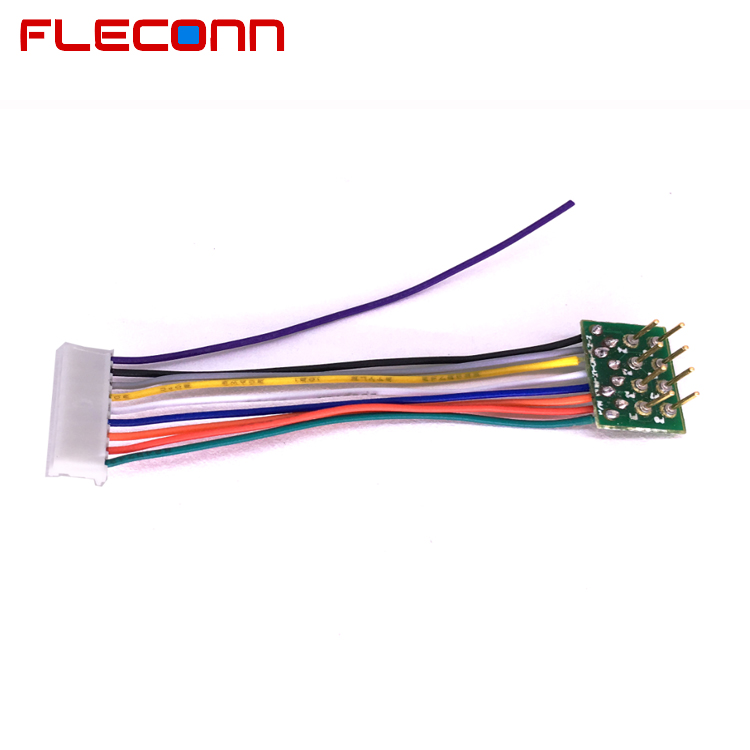

JST ZHR-9 9 Pin Wire Harness
