Ptich 1.2mm 3 4 6 Pin JST ACHF ACHL Connector Wire Harness
Part Number:
ACHLR-02V-S, ACHFR-03V-H, ACHFR-04V-H, ACHFR-06V-H
ACHLR-02V-S, ACHFR-03V-H, ACHFR-04V-H, ACHFR-06V-H
Keywords:
3 Pin JST ACHF Connector Wire Harness, Pitch 1.2mm 4 Pin Wire Harness, 6 Pin JST ACHL Connector Wire Harness
3 Pin JST ACHF Connector Wire Harness, Pitch 1.2mm 4 Pin Wire Harness, 6 Pin JST ACHL Connector Wire Harness
Description:
FLECONN can custom Ptich 1.2mm 3 4 6 Pin JST ACHF ACHL Connector Wire Harness with ACHLR-02V-S, ACHFR-03V-H, ACHFR-04V-H, ACHFR-06V-H housing
FLECONN can custom Ptich 1.2mm 3 4 6 Pin JST ACHF ACHL Connector Wire Harness with ACHLR-02V-S, ACHFR-03V-H, ACHFR-04V-H, ACHFR-06V-H housing
General Description:
Pitch: 1.2mm, Current rating: 1-2.5A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #30 to #28AWG, Insulation O.D. 0.5 to 0.63mm, Wire Stype: UL1571, UL1061
Product Description
Ptich 1.2mm 3 4 6 Pin JST ACHF ACHL Connector Wire Harness
Product Description:
FLECONN can custom jst ACHF ACHL series connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. JST Housing Series
| Circuits | Housing (ACHF) | Housing (ACHL) |
| 2 | ACHLR-02V-S | |
| 3 | ACHFR-03V-H | |
| 4 | ACHFR-04V-H | |
| 6 | ACHFR-06V-H |
II. Crimp Terminal
Crimp Terminal: SACHF-003GAC-P0.2 (Mating ACHF Housing)
Crimp Terminal: SACHL-003G-P0.2 (Mating ACHL Housing)
Applicable conductor size: 30AWG - 28AWG
Insulation OD: 0.5mm - 0.63mm
III. Product Specifications

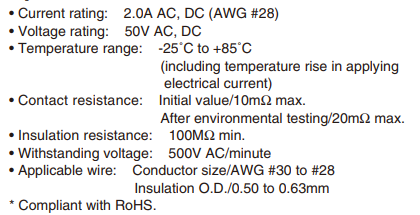

1. ACHF Specifications:
2. ACHL Specifications
IV. Product Pictures

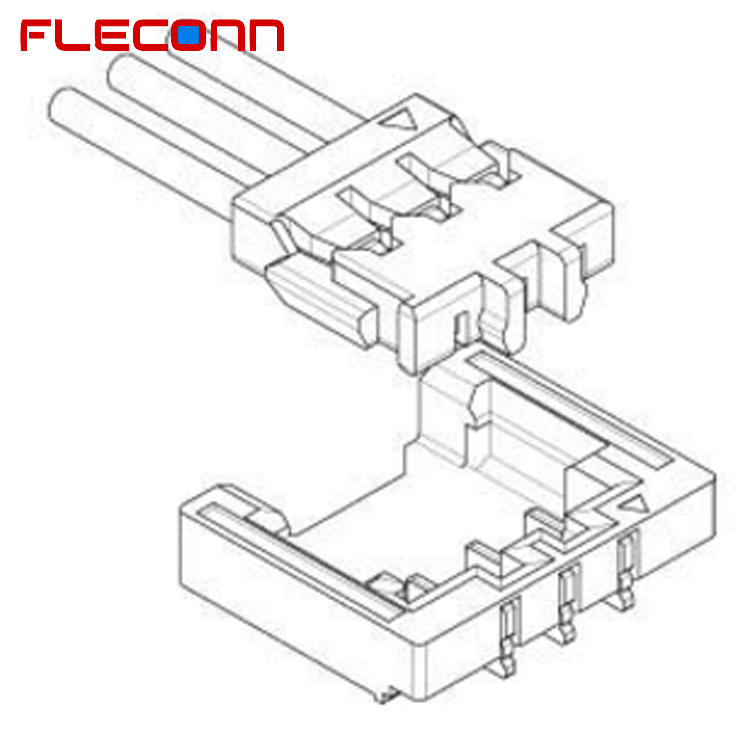

JST 1.2mm Pitch ACHF Connector Wire Harness

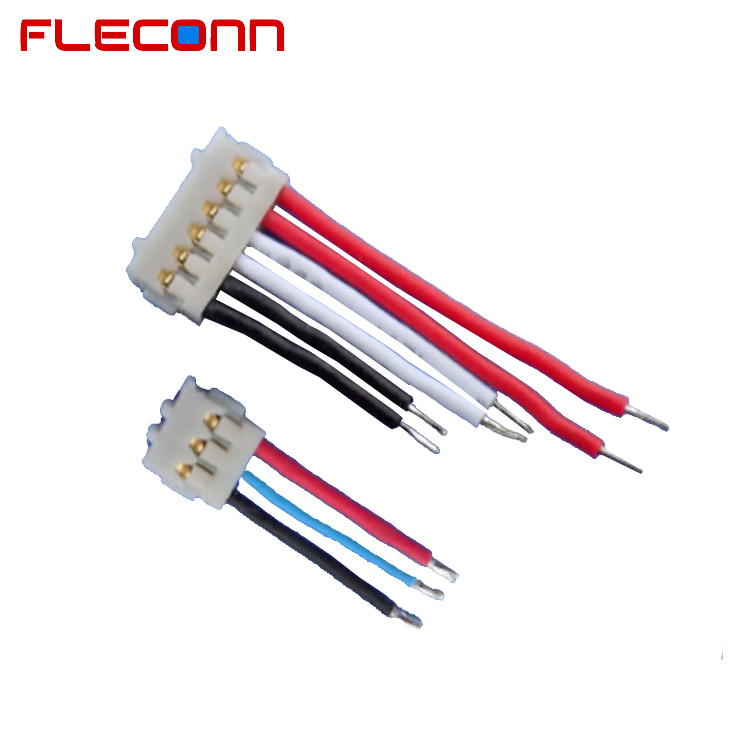

JST 1.2mm Pitch ACHFR Connector Wire Harness, 3 Pins 4 6 circuits

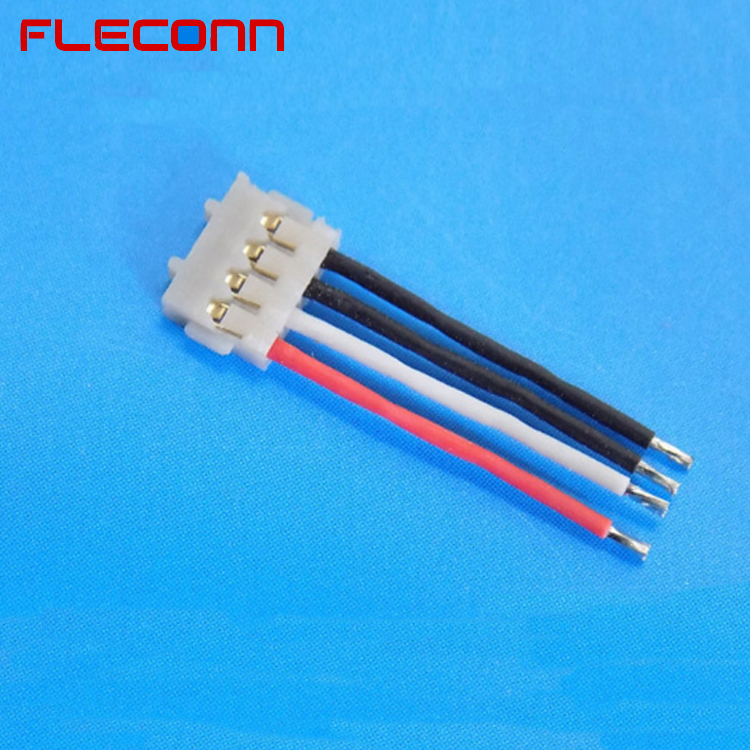

JST 1.2mm Pitch ACHFR-04V-H 4 Pin Connector Wire Harness

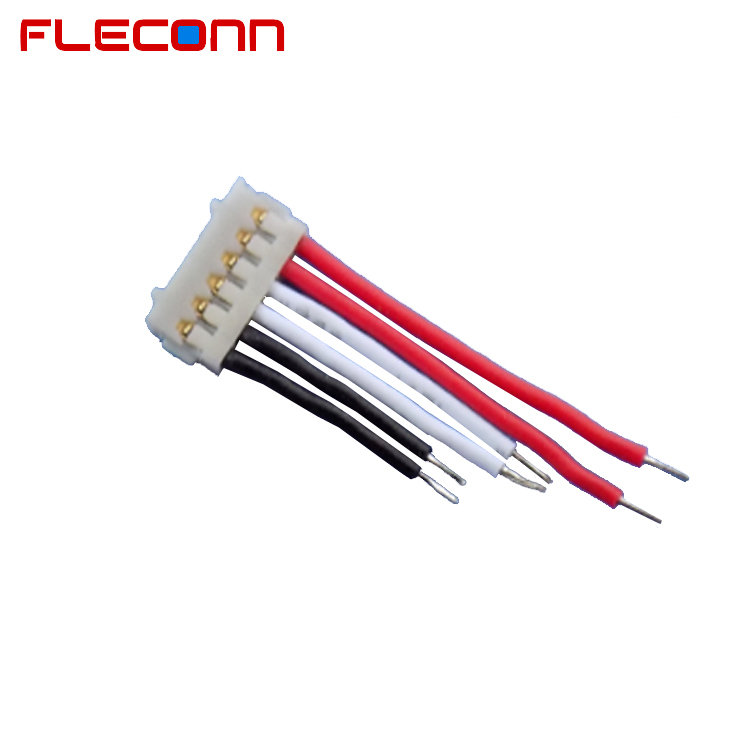

JST 1.2mm Pitch ACHFR-06V-H Connector Wire Harness
JST 1.2mm Pitch ACHFR-03V-H Connector Wire Harness
