1.2mm Pitch Molex Pico-EZmate 78172 Batter Wire Harness, 2 3 4 5 6 Pin

Part Number:
78172-0002, 78172-0003, 78172-0004, 78172-0005

Keywords:
1.2mm Pitch Batter Wire Harness, Molex Pico-EZmate 78172 Connector Wire Harness, 2 3 4 5 6 Pin Batter Wire Harness

Description:
FLECONN can custom 1.2mm Pitch Molex Pico-EZmate 78172 Batter Wire Harness with 2 3 4 5 6 Pin housing

General Description:
Pitch: 1.2mm, Housing: Molex Pico-EZmate Wire-to-Board Receptacle Housing, Crimp Terminal: Pico-EZmate 78172-0410, Series: Molex 78172 Series

Product Description

1.2mm Pitch Molex Pico-EZmate 78172 Batter Wire Harness, 2 3 4 5 6 Pin Housing

Product Description:

FLECONN can custom molex Pico-EZmate 78172 series single row connector for batter wire harness in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. Molex Housing Series

1.2mm Pitch Molex 78172 wire to board connector housing

Circuits	Housing
2	78172-0002
3	78172-0003
4	78172-0004
5	78172-0005
6	78172-0006

II. Crimp Terminal

Crimp Terminal:78172-0410

Applicable conductor size: 32AWG - 28AWG

Insulation OD: 0.5mm - 0.63mm

III. Product Specifications

1. Electrical Performance:
Rating voltage: 50V AC DC
Rating Current: 0.5 - 1.0A
Applicable Wire: UL1571, UL1061 AWG #32 to #28AWG

2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

IV. Product Pictures

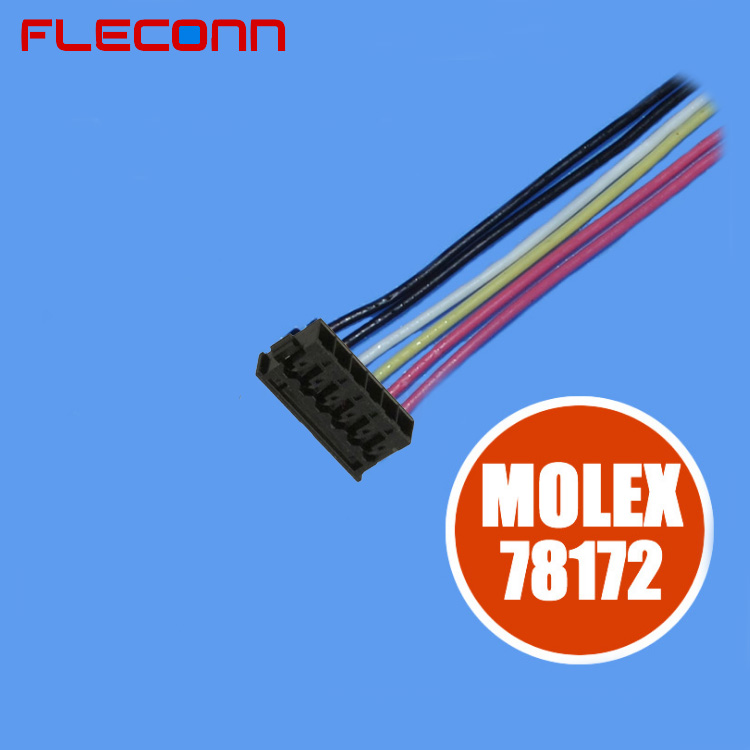

Molex 1.2mm Pitch 6 Pin Wire Harness

Molex 1.2mm Pitch 6 Pin Wire Harness.jpg

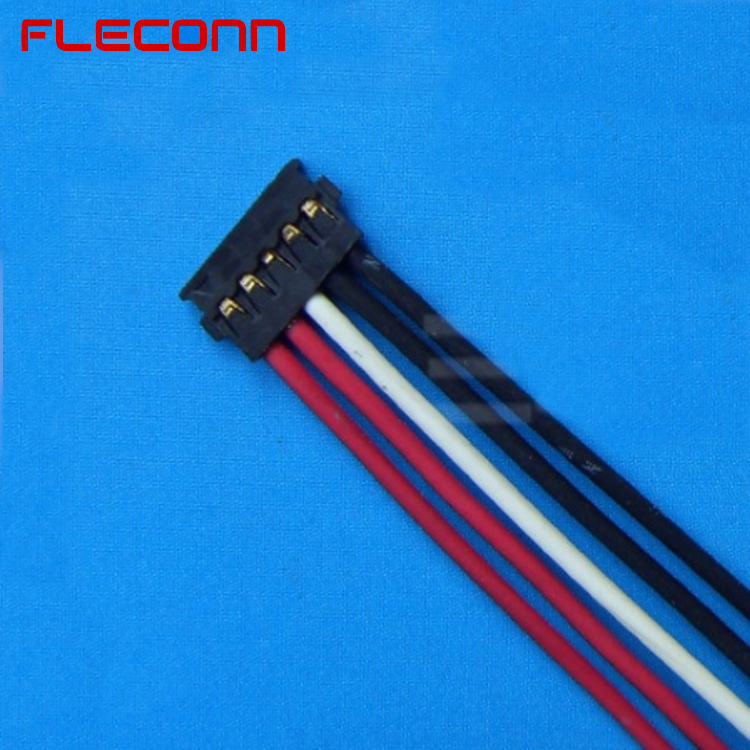

Molex 1.2mm Pitch 78172-0005 5 Pin Battery Wire Harness

Molex 1.2mm Pitch 78172-0005 5 Pin Battery Wire Harness.jpg
