JST 2.0mm Pitch Dual Row 12 Pin PHDR Connector Wire Harness

Send Inquiry Now

JST 2.0mm Pitch Dual Row 12 Pin PHDR Connector Wire Harness

JST 2.0mm Pitch Dual Row 12 Pin PHDR Connector Wire Harness

Part Number:
PHDR-08VS, PHDR-10VS, PHDR-12VS, PHDR-16VS

Keywords:
JST PHDR Connector Wire Harness, JST 2.0mm Pitch Dual Row Wire Harness, 2.0mm Pitch Double Row Wire Harness

Description:
FLECONN can custom JST 2.0mm Pitch Double Dual Row PHD Connector Wire Harness with the housing of PHDR-08VS PHDR-10VS PHDR-12VS PHDR-14VS PHDR-16VS PHDR-18VS PHDR-20VS, PHDR-22VS, PHDR-24VS etc.

General Description:
Pitch: 2.0mm, Current rating: 3A (22AWG), Voltage rating, 250V, Applicable Wire: Conductor size /AWG #28 to #22AWG, Insulation O.D. 0.9mm to 1.5mm, Wire Stype: UL1571, UL1061

Product Description

JST 2.0mm Pitch Dual Row 12 Pin PHDR Connector Wire Harness

Product Description:

FLECONN can custom JST 2.0mm Pitch Double Dual Row PHD Connector Wire Harness with the housing of PHDR-08VS PHDR-10VS PHDR-12VS PHDR-14VS PHDR-16VS PHDR-18VS PHDR-20VS, PHDR-22VS, PHDR-24VS etc.

I. JSTHousing Series

2.0mm Pitch JST PHD series wire to board connector housing

Circuits	Housing
8	PHDR-08VS
10	PHDR-10VS
12	PHDR-12VS
14	PHDR-14VS
16	PHDR-16VS
18	PHDR-18VS
20	PHDR-20VS
22	PHDR-22VS
24	PHDR-24VS
26	PHDR-26VS
28	PHDR-28VS
30	PHDR-30VS
32	PHDR-32VS
34	PHDR-34VS

II. Crimp Terminal

Crimp Terminal: SPHD-002T-P0.5 / SPHD-001T-P0.5

Applicable conductor size: 28AWG - 24AWG / 26AWG - 22AWG

Insulation OD: 0.9mm - 1.5mm / 1.0mm - 1.5mm

III. Product Specifications

1. Electrical Performance:
Rating voltage: 250V AC DC
Rating Current: 3.0A (22AWG)
Applicable Wire: UL1571, UL1061 AWG #28 to #22AWG

2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

IV. Product Pictures

JST 2.0mm Pitch Dual Row 12 Pin PHDR Connector Wire Harness

JST 2.0mm Pitch PHD PHDR-10VS 10 PIN Connector Wire Harness.jpg

JST 2.0mm Pitch PHD PHDR-08VS 8 Pin Connector Wire Harness

JST 2.0mm Pitch PHD PHDR-08VS 8 Pin Connector Wire Harness.jpg

JST 2.0mm Pitch PHD PHDR-22VS 22 Pin Connector Wire Harness

JST 2.0mm Pitch PHD PHDR-22VS 22 Pin Connector Wire Harness.jpg

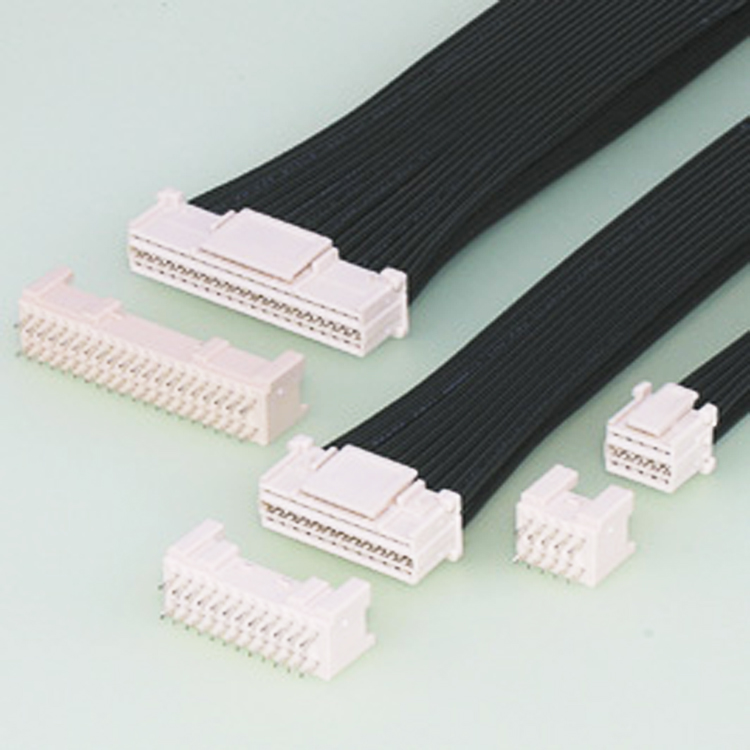

JST 2.0mm Pitch PHD Sereis Connector Wire Harness

JST 2.0mm Pitch PHD Sereis Connector Wire Harness.jpg
