Product Description

M12 4-Pole Male Cable, A-Coding, 180 Degree Straight Molding Cable

FLECONN can custom high quality m12 4-pole male cable, a-coding, 180 degree straight molding cable for sensors and outdoor LED lights.

Product characters for m12 4-pole male cable

Contact Body Type: Male.

Coding Type: A-Coding.

Connector Cable Shape:  straight.

Terminal Connecting Method: solde wire;

Contacts number: 4 pole;

Cable lenght: 3 meters;

Cable Specifications: UL2464 AWG22 * 4C PVC Cable

Technique Specifications for this m12 4-pole a-coding cable

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                    60V            30V

Rated Current                                        4A                                       1A              0.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                        22AWG                               26AWG            28AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Product Pictures for m12 4-pole straight molding cable

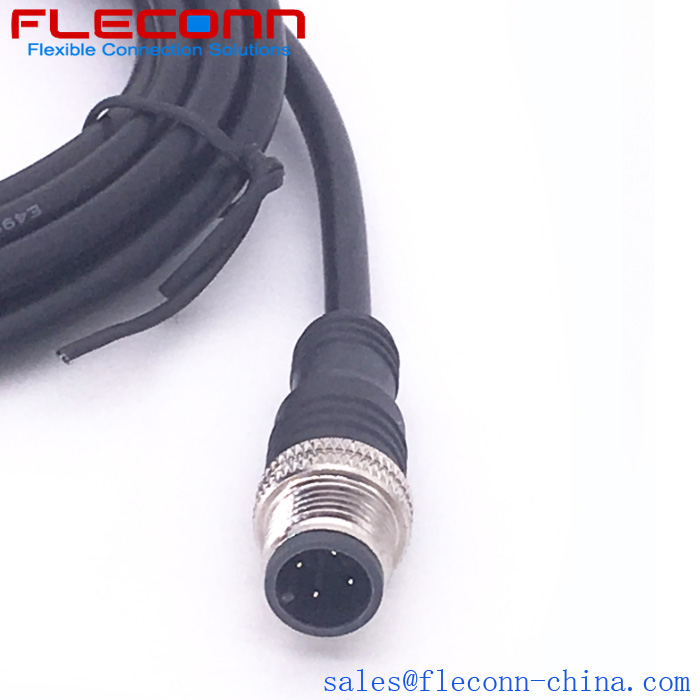

M12 4-Pole Male Cable, A-Coding, 180 Degree Straight Molding Cable
