Product Description

M12 4 Pin straight plug to RS PRO Insulated Crimp Bootlace Ferrule Wire Harness

FLECONN can custom high quality m12 4 pin straight plug to rs pro insulated crimp bootlace ferrule wire harness for various electrical devices.

Product characters for M12 4 Pin Wire Harness

Connector 1: M12 Female Connector

Contact Body Type: Female.

Coding Type: A-Coding.

Connector Cable Shape:  straight.

Terminal Connecting Method: solde wire;

Contacts number: 4 pin;

Connector 2: 3 x Pre-insulated Ferrule Tube Terminals, Nylon insulation, orange;

Model No.: E0508,

Cable lenght: 2 meters;

Cable Specifications: UL2464 AWG22 * 3C PVC Cable

Technique Specifications for this M12 4 Pin Straight Plug

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                    60V            30V

Rated Current                                        4A                                       1A              0.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                        22AWG                               26AWG            28AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

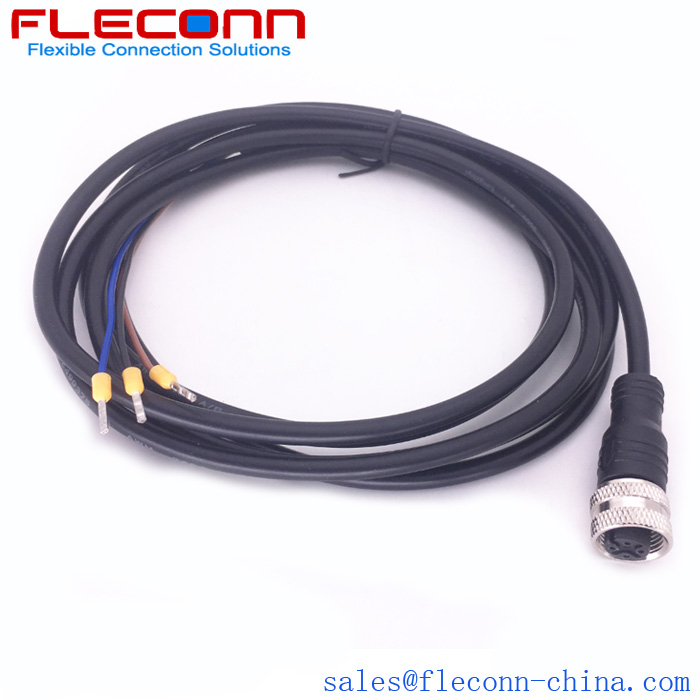

Product Pictures for RS PRO Insulated Crimp Bootlace Ferrule Wire Harness

M12 4 Pin straight plug to RS PRO Insulated Crimp Bootlace Ferrule Wire Harness
