M12 4Pin Female Connector to 22AWG Wire Bootlace Ferrule Cable

Part Number:
M12AF-4P-22A-3C-PVC-2M

Keywords:
M12 4Pin Connector Cable, M12 4Pin Female Connector Cable, M12 Connector to Bootlace Ferrule Cable

Description:
FLECONN can custom m12 4pin female connector to 22awg wire bootlace ferrule cable for automation device connection.

General Description:
Connection body polarity: Female; Coding: A-Coded; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 4 pin; Cable length: 2 meters; Cable Specifications: UL2464 AWG22 * 3C PVC Cable

Product Description

M12 4Pin Female Connector to 22AWG Wire Bootlace Ferrule Cable

FLECONN can custom m12 4pin female connector to 22awg wire bootlace ferrule cable for automation device connection.

Product characters for M12 4Pin Connector Cable

Connector 1: M12 Female Connector

Contact Body Type: Female.

Coding Type: A-Coding.

Connector Cable Shape: straight.

Terminal Connecting Method: solde wire;

Contacts number: 4 pin;

Connector 2: 3 x bootlace ferrules, Nylon insulation, orange;

Model No.: E0508,

Cable lenght: 2 meters;

Cable Specifications: UL2464 AWG22 * 3C PVC Cable

Technique Specifications for this M12 4Pin Female Connector Cable

Number of Contacts 2, 3, 4, 5, 6, 8 12

Rated Voltage 250V 60V 30V

Rated Current 4A 1A 0.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 1.0±0.03 0.8±0.03 0.6±0.03

Wire Gauge 22AWG 26AWG 28AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

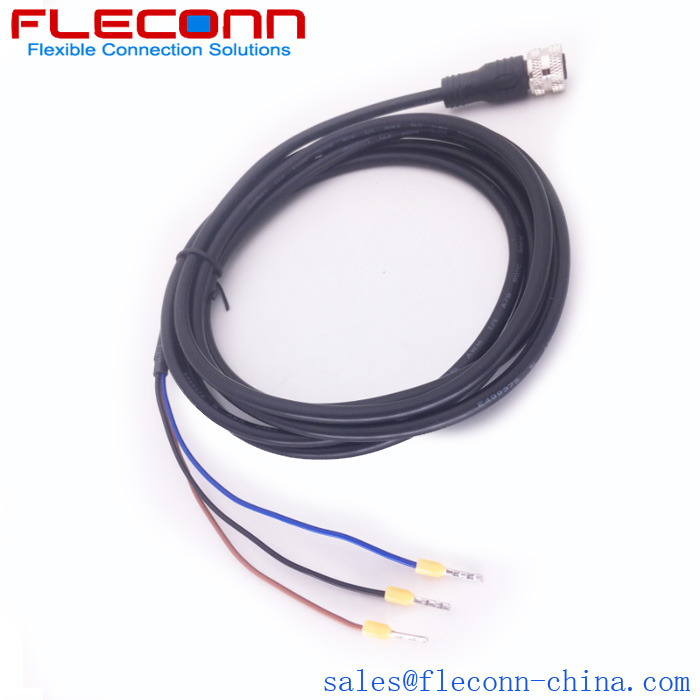

Product Pictures for M12 Connector to Bootlace Ferrule Cable
