Product Description

4Pin A-coded M12 Female Right Angle Cordset 10m PVC Cable

FLECONN can custom 4pin a-coded m12 female right angle cordset 10m pvc cable for automation sensor connection.

Product characters for 4Pin M12 Female Right Angle Cable

Contact Body Type: Female.

Coding Type: A-Code.

Connector Cable Shape:  right angle.

Terminal Connecting Method: solde wire;

Contacts number: 4pin;

Cable lenght: 10 meters;

Cable Specifications: UL2464 AWG22 * 4C PVC Cable

Technique Specifications for this A-coded M12 Female Cordset

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                    60V            30V

Rated Current                                        4A                                       1A              0.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                        22AWG                               26AWG            28AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

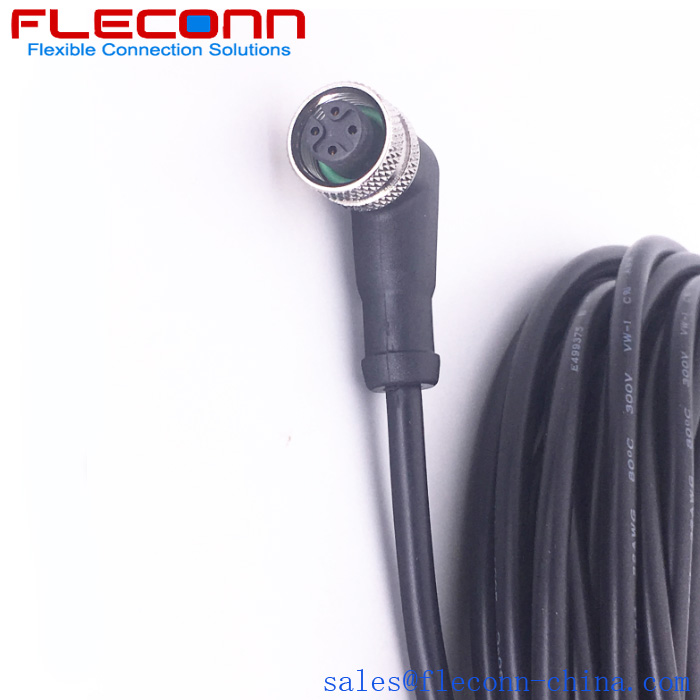

Product Pictures for  M12 Female Right Angle PVC Cable

4Pin A-coded M12 Female Right Angle Cordset 10m PVC Cable
