M12 4 Contact Right Angle Female Cable 10M Long Single-Ended Cordsets

Part Number:
M12AF-RA-04P-22A-10M-PVC-01

Keywords:
m12 4 contact female cable, m12 right angle female cable, m12 4 contact single-ended cordset

Description:
FLECONN can custom high cost performance IP66 IP67 m12 4 contact right angle female cable 10m long single-ended cordsets

General Description:
Connection body polarity:Female; Coding: A-Coded; Socket Type: 90 degree Angle; Terminal Connecting Method: soldering; Contacts number: 4 contact; Cable lenght: 10m; Cable Specifications: UL2464 22AWG * 4C PVC Cable

Product Description

M12 4 Contact Right Angle Female Cable 10M Long Single-Ended Cordsets

FLECONN can custom high cost performance IP66 IP67 m12 4 contact right angle female cable 10m long single-ended cordsets

Product characters for m12 4 contact female cable

Contact Body Type: Female.

Coding Type: A-Coded.

Connector Cable Shape: 90° right angle.

Terminal Connecting Method: soldering;

Contacts number: 4 contact;

Cable lenght: 10m;

Cable Specifications: UL2464 22AWG * 4C PVC Cable

Technique Specifications for this m12 4 contacts 90 degree molded female cable

Number of Contacts 2, 3, 4, 5, 6, 8 12

Rated Voltage 250V 60V 30V

Rated Current 4A 1A 0.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 1.0±0.03 0.8±0.03 0.6±0.03

Wire Gauge 22AWG 26AWG 28AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

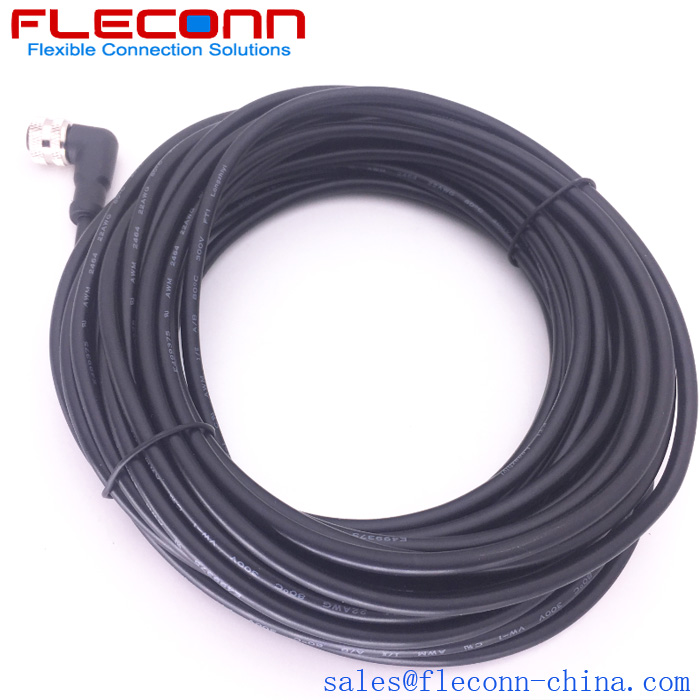

Product Pictures for m12 right angle female cable
