M12 D-Code 4 Pin Female Connector to RJ45 Ethernet Cable
M12DF-RJ45M-GC-1M
M12 D-Code 4 Pin Female Connector, M12 to JR45 Ethernet Cable, M12 D-Code to RJ45 Cable
FLECONN can custom m12 d-code 4 pin female connector to rj45 cable for industry Ethernet and profitnet system.
Product Description
M12 D-Code 4 Pin Female Connector to RJ45 Ethernet Cable
FLECONN can custom m12 d-code 4 pin female connector to rj45 cable for industry Ethernet and profitnet system.
Product Features：
Connector 1 : M12 d-Code Female Connector
Connector 2: RJ45 connector
Cable Specifications: Cat5e
Plug Type: straight molding type
Wiring Method: Soldering
Contacts: 4 Pin
Installation Method: M12 screw mount
Cable Length: 1M
Part Number: M12XF-RJ45M-01M/02M/03M/5M/6M/8M/10M

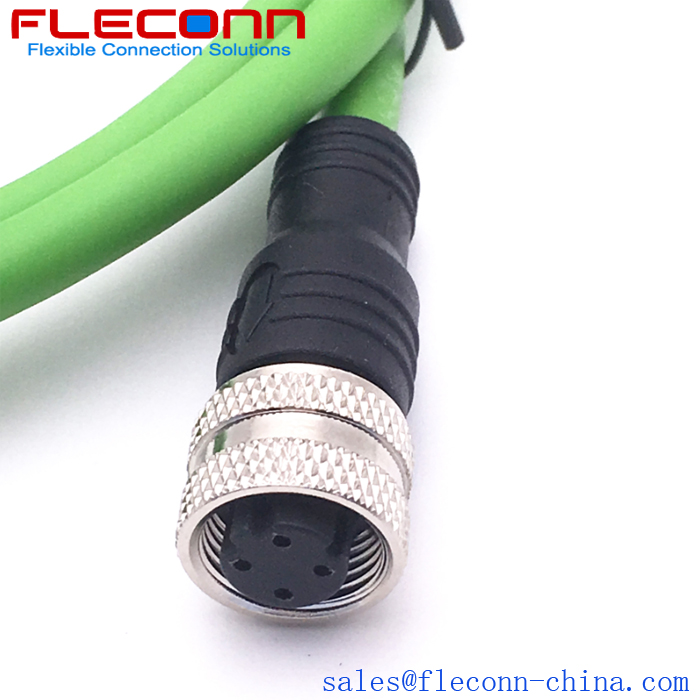

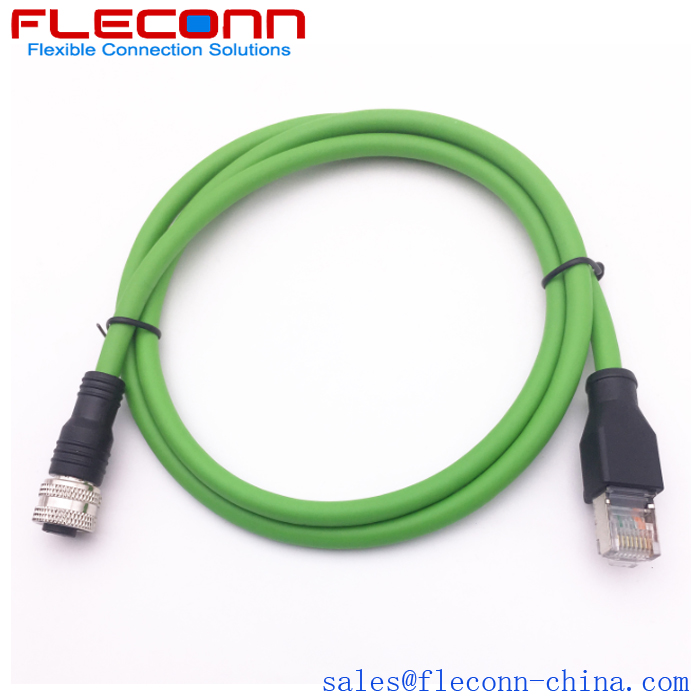

M12 D-Coded Female Connector to RJ45 Ethernet Cable
M12 D-Coded Female Ethernet Cable
Material and specifications
Coupling Threaded coupling
Shell material Brass nickle plated
Insert material PA66+30%GF
Contact material copper(silver /gold plated)
Termination Soldering
Temperature Range -25℃ ～+85℃
Cable diameter ≤ φ5.0-8.0mm
Specification
Number of Contacts 8
Rated Voltage 48V
Rated Current 0.5A
Contact Resistance <5mΩ
Insulation Resistance >100MΩ
Temperature Range -20℃ to +85℃
Degree of Protection IP 67/IP 68 when mated
Mating Times 100 cycles
Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
Cable length customized length by customer's requirement.
