M12 Male Panel Mount Connector to Molex 51021 Series 8P Wire Harness

Send Inquiry Now

M12 Male Panel Mount Connector to Molex 51021 Series 8P Wire Harness

Part Number:
M12AM08P-FF-01-MX-51021-0800-WH

Keywords:
M12 8P Male Connector, M12 8P Panel Mount Connector, M12 connector to Molex 8P Wire Harness

Description:
FLECONN can custom m12 male panel mount connector to molex 51021 series 8p wire harness.

General Description:
Products Type: 8 Pin Connector Wire Harness, P1: M12 8 Pin Rear Mount Connector, P2: Molex 51021-0800 PicoBlade Connector, Wire Guage: UL1571 28AWG 40mm long Wires. Coding: A Code, Contacts Number: 8P.

Product Description

M12 Male Panel Mount Connector to Molex 51021 Series 8P Wire Harness

FLECONN can custom m12 male panel mount connector to molex 51021 series 8p wire harness for the signal and DC power transmition of industry automation system.

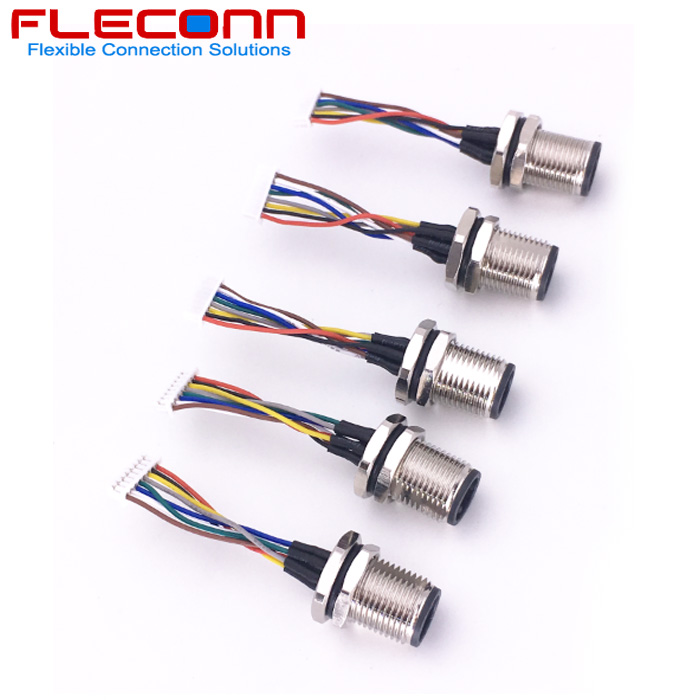

M12 Male Panel Mount Connector to Molex 51021 Series 8P Wire Harness.jpg

Last Product: M12 8 Pin A-Coded Male Panel Mount Connector with Pigtails, fixing thread m12x1

Next Product: M12 8 Position A-Code Male Panel Mount Connector with Pigtail, screwed from front

Product Features：

Products Type: 8 Pin Connector Wire Harness

P1: M12 8 Pin Rear Mount Connector

P2: Molex 51021-0800 PicoBlade Connector

Wire Guage: UL1571 28AWG 40mm long Wires.

Contact number: 8P

Coding: A code

Part Number: M12AM08P-FF-01-MX-51021-0800-WH

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts 8

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.8±0.03

Wire Gauge 28AWG

Single Wire Insulation Material PVC

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
