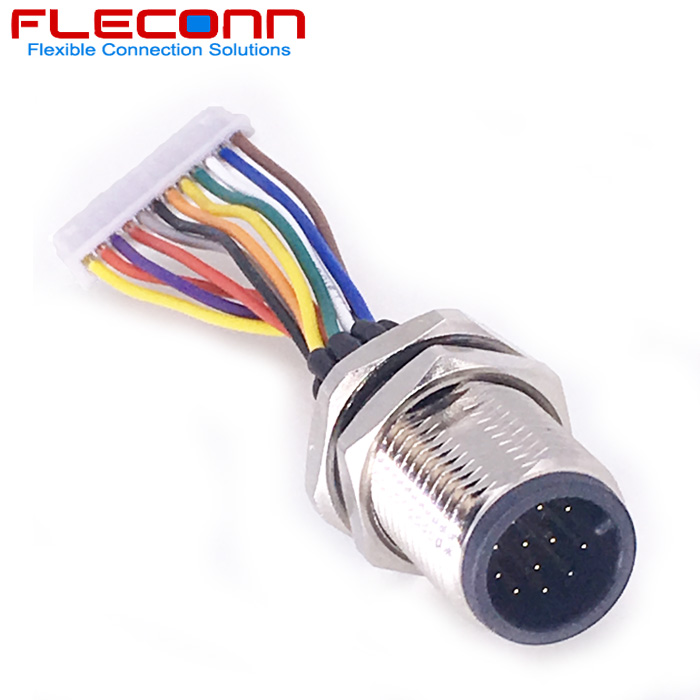

M12 12 Pin Male Connector to Molex 1.25mm Pitch Connector Wire Harness

FLECONN can custom m12 12 pin male connector to molex 1.25mm pitch connector wire harness for the signal and DC power transmition of industry automation system.

Last Product: M12 12 Pin Connector to Molex PicoBlade 12 Circuits Wire Harness with UL1571 28AWG Single Wires

Next Product: M12 12 Pole Male Connector, Front Faston, A-Code, Fixing Thread M12x1

Product Features：

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: straight type

Wiring Method: Soldering

Contacts: 12 Pin

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-12P

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts  12

Rated Voltage 30V

Rated Current 1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 0.6±0.03

Wire Gauge 26AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
