M12 12P Panel Mount Connector to Molex 1.25mm Pitch PicoBlade 51021-1200 Wire Harness

Send Inquiry Now

M12 12P Panel Mount Connector to Molex 1.25mm Pitch PicoBlade 51021-1200 Wire Harness

Part Number:
M12AM12P-FF-01-MX-51021-1200-WH

Keywords:
M12 12P Panel Mount Connector, M12 Mount Connector to Molex 12P Wire Harness,

Description:
FLECONN can custom m12 12p panel mount connector to molex 1.25mm pitch picoblade 51021-1200 wire harness.

General Description:
Products Type: 12Pin Connector Wire Harness P1: M12 Rear Panel Mount Connector. P2: Molex 51021-1200. Coding Type: A Codeing. Contacts: 12P. Installation Method: Rear Mounting.

Product Description

M12 12P Panel Mount Connector to Molex 1.25mm Pitch PicoBlade 51021-1200 Wire Harness

FLECONN can custom m12 12p panel mount connector to molex 1.25mm pitch picoblade 51021-1200 wire harness for the signal and DC power transmition of industry automation system.

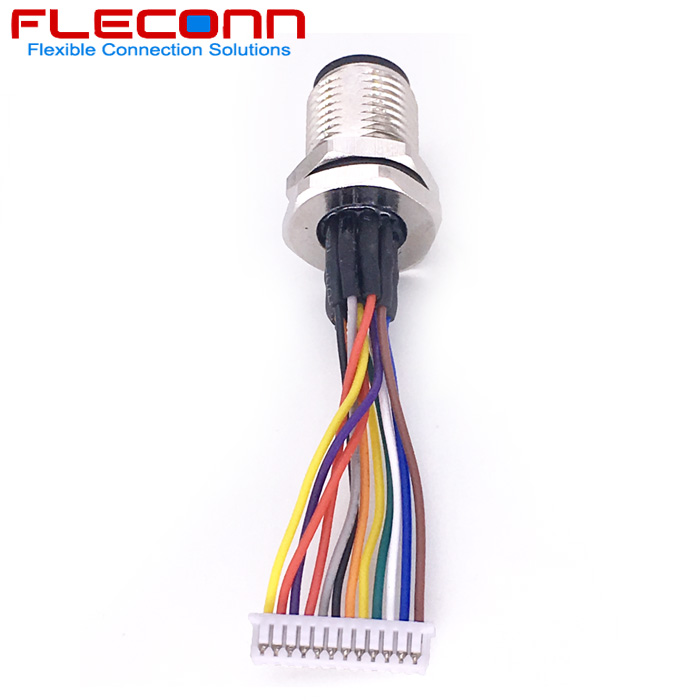

M12 12P Panel Mount Connector to Molex 1.25mm Pitch PicoBlade 51021-1200 Wire Harness.jpg

Last Product: M12 12 Position Male Panel Mount Connector with Pigtails, screwed from front

Next Product: M12 12Pin A Coded Male Panel Mount Connector with Single Wires

Product Features：

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: straight type

Wiring Method: Soldering

Contacts: 12 Contacts

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-12P

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts 12

Rated Voltage 30V

Rated Current 1.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.6±0.03

Wire Gauge 26AWG

Single Wire Insulation Material PVC

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
