Custom Molex 2695 Series KK 254 Connector Wire Harness
2695-N, 2695-NR, 2695-NRP, 2695-NRP-BK
Custom Molex 2695 Series Wire Harness, Molex KK 254 Connector Wire Harness, Molex 2.54mm Pitch Wire Hanress
FLECONN can custom molex 2695 series KK 254 connector wire harness.
Product Description
Custom Molex 2695 Series KK 254 Connector Wire Harness
Product Description:
FLECONN can custom molex 2695 series KK 254 connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
KK 396 Connector Wire Harness
Delivering 7.0A and 600V per circuit in an industry-standard 3.96mm pitch, power application KK 396 connectors are ideal for low- to mid-power wire-to-board and board-to-board applications
I. Housing Series
1.1 Molex 2695Series KK 2.54mm pitch wire-to-board housing for customized wiring harness
| Circuits | 2695-N | 2695-NR | 2695-NRP | |||
| PART NO. | ENG. NO. | PART NO. | ENG. NO. | PART NO. | ENG. NO. | |
| 2 | 22-01-2021 | 2695-2 | 22-01-2027 | 2695-2R | 22-01-3027 | 2695-2RP |
| 3 | 22-01-2031 | 2695-3 | 22-01-2037 | 2695-3R | 22-01-3037 | 2695-3RP |
| 4 | 22-01-2041 | 2695-4 | 22-01-2047 | 2695-4R | 22-01-3047 | 2695-4RP |
| 5 | 22-01-2051 | 2695-5 | 22-01-2057 | 2695-5R | 22-01-3057 | 2695-5RP |
| 6 | 22-01-2061 | 2695-6 | 22-01-2067 | 2695-6R | 22-01-3067 | 2695-6RP |
| 7 | 22-01-2071 | 2695-7 | 22-01-2077 | 2695-7R | 22-01-3077 | 2695-7RP |
| 8 | 22-01-2081 | 2695-8 | 22-01-2087 | 2695-8R | 22-01-3087 | 2695-8RP |
| 9 | 22-01-2091 | 2695-9 | 22-01-2097 | 2695-9R | 22-01-3097 | 2695-9RP |
| 10 | 22-01-2101 | 2695-10 | 22-01-2107 | 2695-10R | 22-01-3107 | 2695-10RP |
| 11 | 22-01-2111 | 2695-11 | 22-01-2117 | 2695-11R | 22-01-3117 | 2695-11RP |
| 12 | 22-01-2121 | 2695-12 | 22-01-2127 | 2695-12R | 22-01-3127 | 2695-12RP |
| 13 | 22-01-2131 | 2695-13 | 22-01-2137 | 2695-13R | 22-01-3137 | 2695-13RP |
| 14 | 22-01-2141 | 2695-14 | 22-01-2147 | 2695-14R | 22-01-3147 | 2695-14RP |
| 15 | 22-01-2151 | 2695-15 | 22-01-2157 | 2695-15R | 22-01-3157 | 2695-15RP |
| 16 | 22-01-2161 | 2695-16 | 22-01-2167 | 2695-16R | 22-01-3167 | 2695-16RP |
II. Crimp Terminal
Crimp Terminal: 2478-1(P909) (08-50-0105) / 2578-(P909) (08-50-0107)
Applicable Wire: 24AWG - 18AWG / 26AWG - 22AWG
Insulation OD: 2.79mm max / 1.65mm max
III. Product Specifications
1. Electrical Performance:
Rating voltage: 600V AC
Rating Current: 7A (18AWG)
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

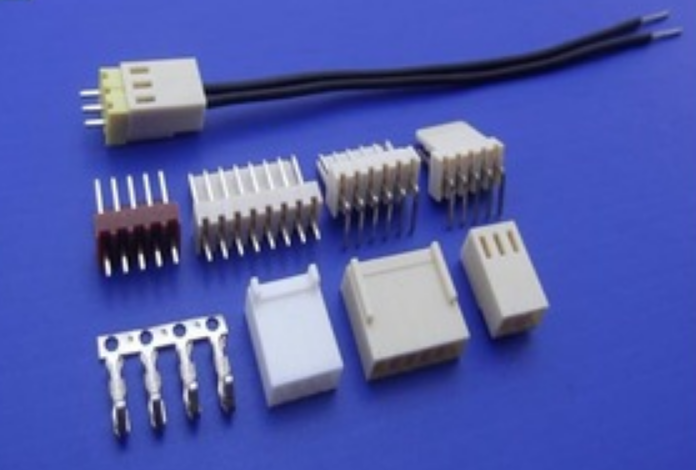

IV. Product Pictures
