JST GH GHR-06V-S 6P 6 Pin Connector Wiring Harness
  • JST GH GHR-06V-S 6P 6 Pin Connector Wiring Harness
Send Inquiry Now

JST GH GHR-06V-S 6P 6 Pin Connector Wiring Harness

Part Number:
GH GHR-06V-S,GH GHR-08V-S, GH GHR-10V-S
Keywords:
6 Pin Connector Wiring Harness, JST 6P Wire Harness, GHR 6 Pin Connector Wire Harness
Description:
FLECONN can custom JST GH 6P 6 Pin Connector Wiring Harness with GHR-06V-S GHR-08V-S GHR-10V-S Housing.
General Description:
Pitch: 1.25mm, Current rating: 1.0A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #30 to #26AWG, Insulation O.D. 0.76 to 1.0mm, Wire Stype: UL1571, UL1061

Product Description

JST GH GHR-06V-S 6P 6 Pin Connector Wiring Harness

Product Description:

FLECONN can custom jst GH series GHR-06V-S 6 Pin connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. JST Housing Series

CircuitsHousing
6GHR-06V-S


II. Crimp Terminal

   Crimp Terminal: SSHL-002T-P0.2
   Applicable conductor size: 30AWG - 26AWG
   Insulation OD: 0.76mm - 1.0mm


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 50V AC DC
   Rating Current: 0.76 - 1.0A
   Applicable Wire: UL1571, UL1061 AWG #30 to #26AWG

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS


IV. Product Pictures

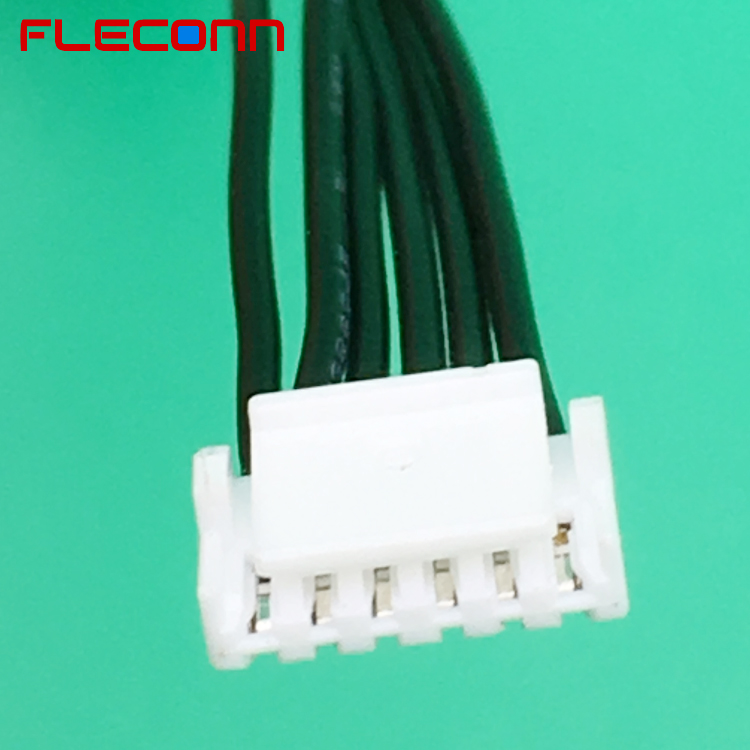

JST GH 6 Pin Connector Wiring Harness

JST GH 6 Pin Connector Wiring Harness.jpg

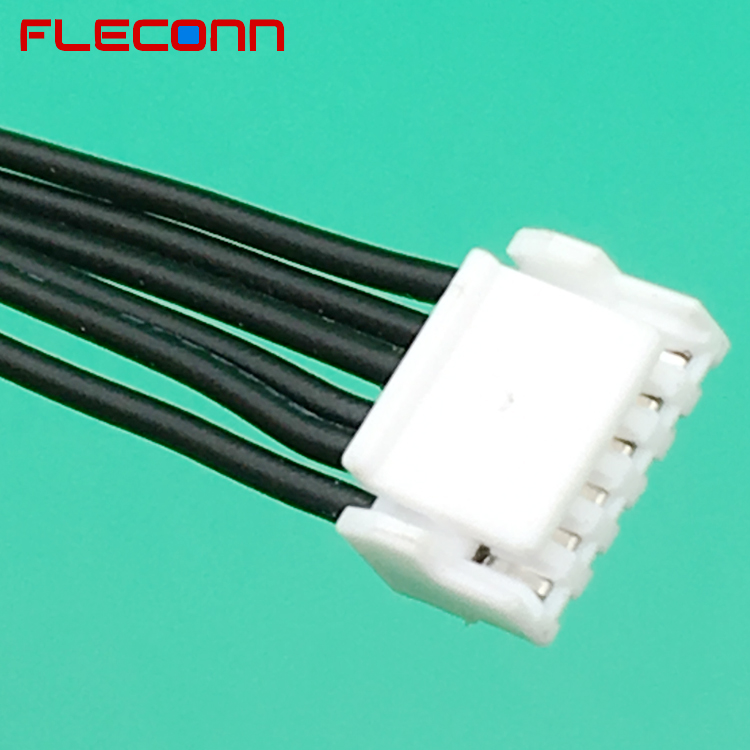

1.25mm Pitch 6P Connector Wiring Harness

1.25mm Pitch 6P Connector Wiring Harness.jpg

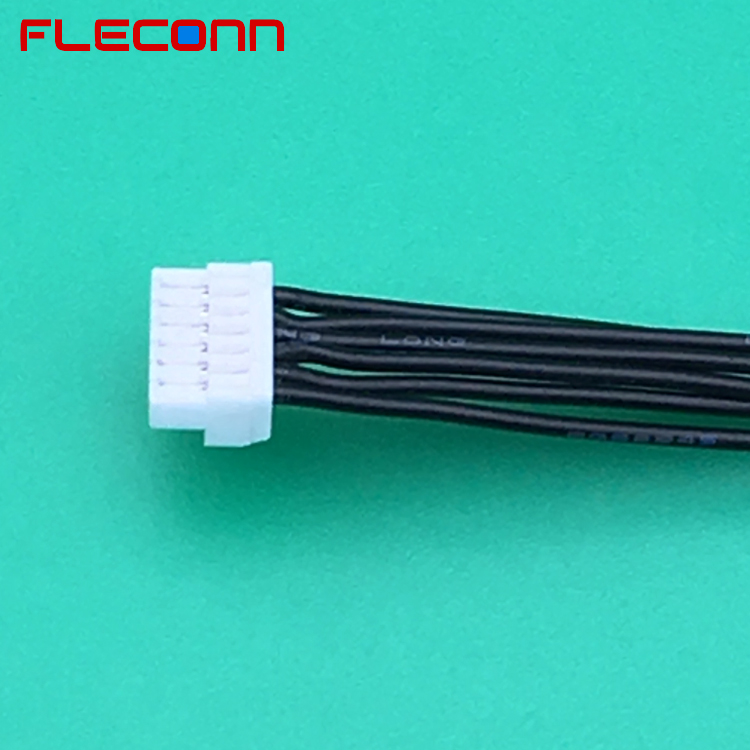

JST GHR 6 Pin Connector Wire Harness

JST GHR 6 Pin Connector Wire Harness.jpg

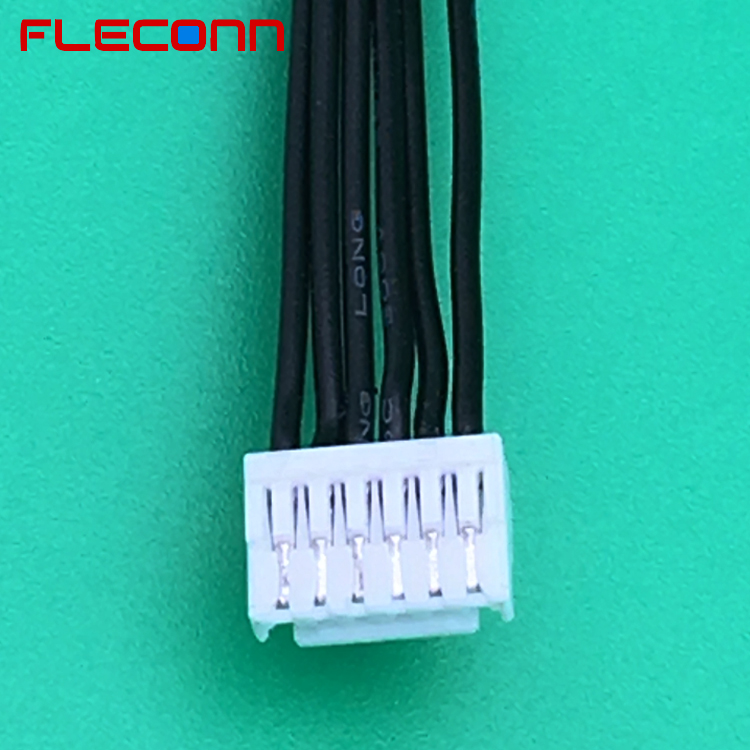

JST 6P 1.25 mm Pitch Wiring Harness

JST 6P 1.25 mm Pitch Wiring Harness.jpg

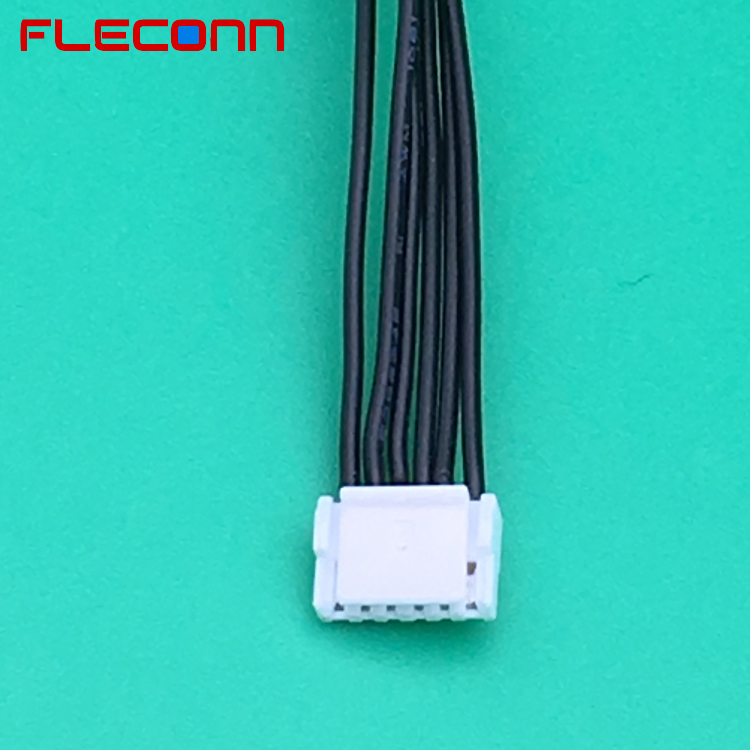

JST GHR-6V-S Connector Wiring Harness

JST GHR-6V-S Connector Wiring Harness.jpg

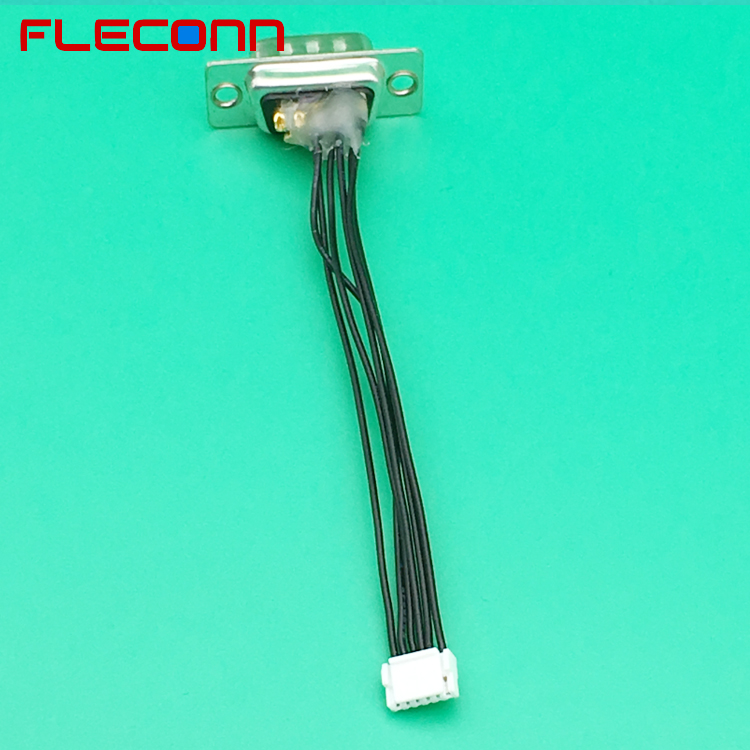

JST GH 6 Pin Connector to DB9 Male Female Connector Wiring Harness

JST GH 6 Pin Connector to DB9 Male Female Connector Wiring Harness.jpg
