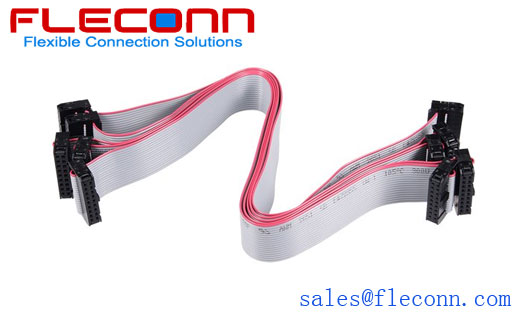

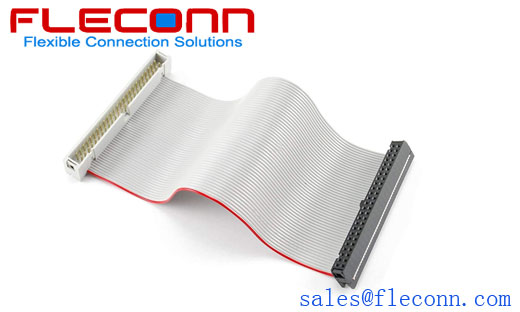

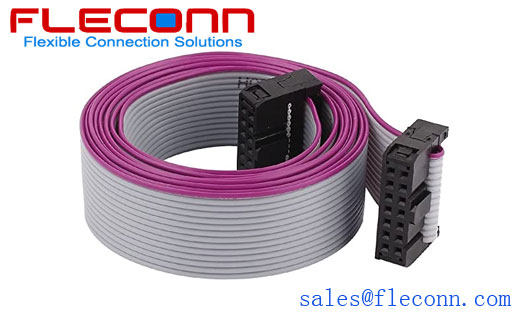

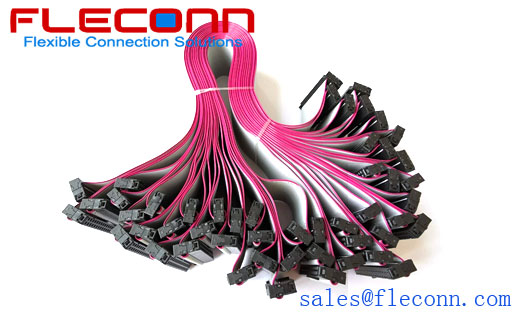

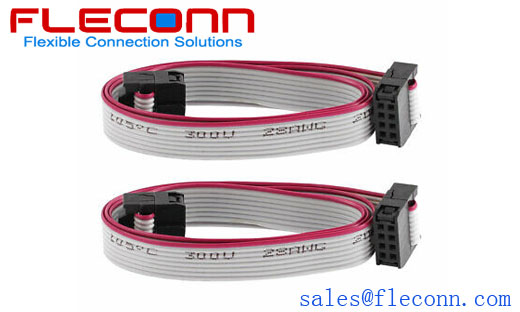

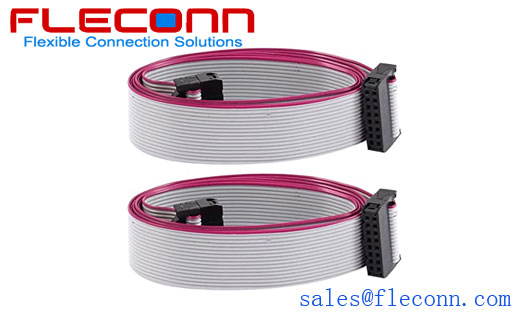

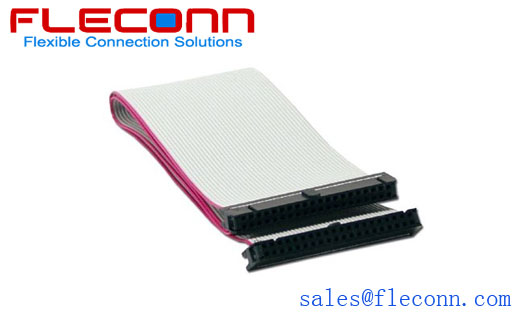

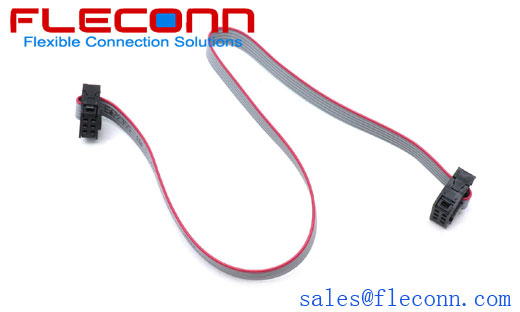

IDC Cable, IDC Flat Ribbon Cable

IDC Cable, IDC Ribbon Cable, IDC Flat Cable

FLECONN, as a idc cable manufacturer, can custom gray 1.27mm pitch 2.54mm pitch connector idc cable, idc ribbon cable and idc flat cable for computer, notebook, server, pad, tablet PC, printer, Industrial Personal Computer, PLC, communications equipment, automotive etc.

Custom IDC Cable, IDC Ribbon Cable, AWM 2651 flat cable with IDC connector

FLECONN can custom 1.27mm pitch 2.54mm pitch 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 40 50 60 64 68 pin male and female IDC Connector Flat Ribbon Cable assemblies for consumer and commercial electronic devices.

The flat cable guide wire core adopts soft structure to ensure the good flexibility of the cable. The insulation and protective layer material adopts butyl polymer to improve the flexibility, anti-corrosion and cold resistance of the cable. The color separation of insulated core provides convenience for laying and installation. At the same time, the coaxial cable can also be made into communication elevator flat cable.

What are the advantages of flat ribbon cable that make it the industry leader?

Circular cable as the existence of cable, the scope of use is very large, it is a traditional cable, can complete the transmission between the electrical. However, with the development of China's industry, circular cable can not meet its needs. At present, new idc ribbon cable has become a new favorite in industrial manufacturing.

At present, China's idc flat cable has been quite large-scale, industrial and technological. As a new backbone, what are the advantages of flat cable, which has laid a position in industrial manufacturing, making more and more industries unable to leave it?

First of all, the advantage of flat ribbon cable is that all cores can be evenly arranged and coexisted, to a certain extent, the layout is more reasonable and fine. At the same time, its orderly arrangement makes its own volume very small, and the occupied space is also small, which can solve the bending problem of the use environment. In the environment of frequent bending, the cable can be folded without kinking.

Secondly, it can meet the special requirements of industrial manufacturing. For example, in port transportation equipment, cables with strong load-bearing strength are needed. The driving cable has an excellent silicone protective insulation sleeve, which can resist the changes of bad weather, but also has certain softness. Strong steel wire can be added inside to increase its own strength, without the interference of current magnetic field.

Finally, the advantages of its overall characteristics are wear-resistant, cold resistant, heat-resistant and oil resistant. It can effectively carry out serial communication signal exchange. Whether it is outdoor or precision instruments, it can achieve the purpose of reducing costs and improving production efficiency. Based on the characteristics and advantages that the circular cable does not have, it is enough to make the flat cable become a necessity in the industrial manufacturing, and the flat cable in China has occupied an important development position in both export and domestic sales.

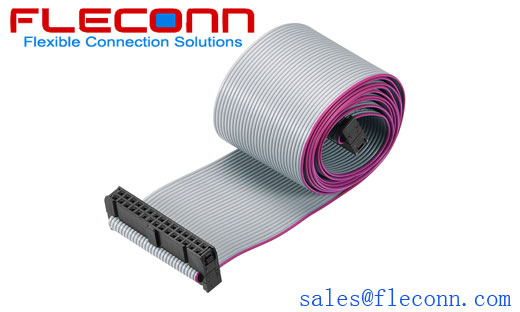

1.27mm ribbon cable

Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are usually used for the connection with the PCB and the internal or external link of the device. Ribbon cables have the best capabilities in terms of compactness and manageability. We can also provide the various types required, such as standard gray, color coded (rainbow) ribbons in the form of laminated or edge bonding, and special products, such as twisted pair (twisted flat), round sheath (round Cut flat)) and shielded ribbon cable. Now, more and more connector types are becoming wider and wider, including standard IDC sockets, D-type, half-pitch D-type, Centronics, half-pitch Centronics, and PCB dual in-line, card edge and transition connectors.

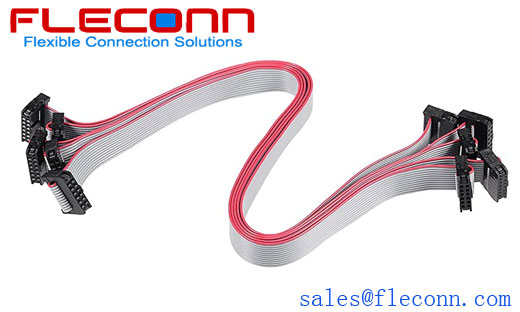

2.54mm Ribbon Cable

IDC ribbon cable assemblies conform to RoHs and can be customized, with pitches of 1.0mm, 1.27mm, and 2.54mm. They are usually used for the connection with the PCB and the internal or external link of the device. Ribbon cables have the best capabilities in terms of compactness and manageability. We can also provide the various types required, such as standard gray, color coded (rainbow) ribbons in the form of laminated or edge bonding, and special products, such as twisted pair (twisted flat), round sheath (round Cut flat)) and shielded ribbon cable. Now, more and more connector types are becoming wider and wider, including standard IDC sockets, D-type, half-pitch D-type, Centronics, half-pitch Centronics, and PCB dual in-line, card edge and transition connectors.

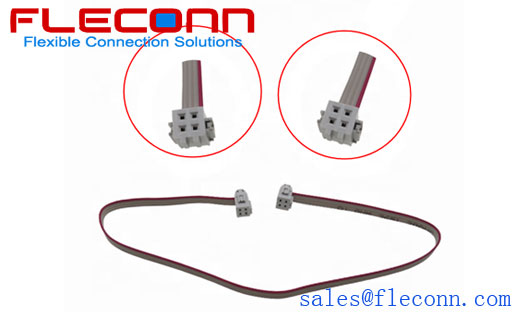

4 Pin Ribbon Cable

6 pin ribbon cable

8 Pin Ribbon Cable

10 Pin Ribbon Cable

12 Pin Ribbon Cable

12-pin IDC ribbon cable assembly, compliant with RoHs, can use M50-3802042, M50-3802542, M50-3800542, M50-3801042, M50-3801342, M50-3801742, M50-3800642, M50-3800742, M50-3800842, etc. custom made. They are usually used for connection with PCB and internal or external links of equipment.

14 Pin Ribbon Cable

16 Pin Ribbon Cable

18 Pin Ribbon Cable

20 Pin Ribbon Cable

The IDC flat ribbon cable connector system provides a modular method of electrical interconnection. The modular design of IDC plugs, sockets, etc. provides a very reliable large-scale termination and a cost-effective way to interconnect PCB or wire-to-board, detachable plug/socket or dual in-line applications. The outstanding features are High contact reliability, long life and low contact resistance.
