Overmolded Wire Harness With Molex 43025-0800, Micro-Fit 3.0 8 Circuit Receptacle
  • Overmolded Wire Harness With Molex 43025-0800, Micro-Fit 3.0 8 Circuit Receptacle
Overmolded Wire Harness With Molex 43025-0800, Micro-Fit 3.0 8 Circuit Receptacle

Overmolded Wire Harness With Molex 43025-0800, Micro-Fit 3.0 8 Circuit Receptacle

Part Number:
OM-43025-0800-WIRE-HARNESS
Keywords:
Overmolded Wire Harness, Molex Micro-Fit (3.0) Receptacle, 43025-0800 8 Circuit
Description:
FLECONN can custom overmolded wire harness with Molex Micro-Fit (3.0) 43025-0800 2x4 8 Pole Receptacle.
General Description:
Molex MICRO-FIT 3.0 Series 4 way x 2 row 8 circuit housing wire harness assembling and overmolding manufacturer in China.

Product Description

Overmolded Cable Harness, 43025-0800 8 Pole Molex Micro-Fit 3.0 Receptacle Overmolded Cable Harness,  8 Circuit Molex Micro-Fit 3.0 mm pitch Connector Overmolded Wire Harness, 43025-0800 2x4 way Molex Micro-Fit 3.0 Cable Assembly

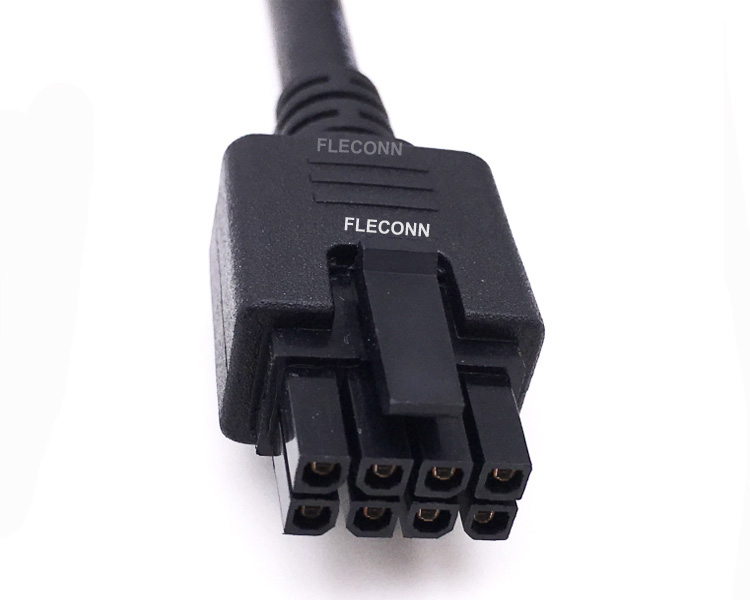

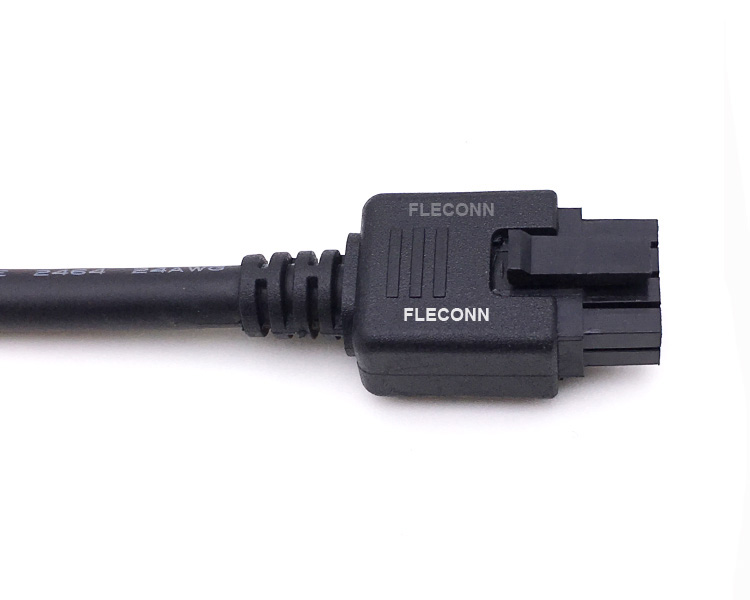

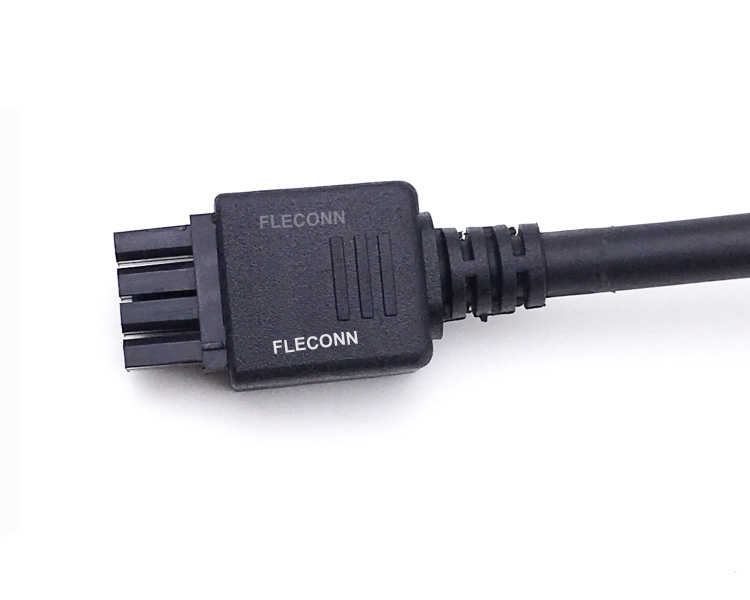

Product Name: Molex MICRO-FIT 3.0 Series 4x2 8 circuit overmolded wire harness

  1. 1. Component Statements:

    1.1 Connector

    Connector Gender:Female

    Housing: Molex 43025-0800 or replacement

    Termination: 43030-0001 or replacement


  2. 2. Cable:UL2464 24AWG*8C multi-core molding cable

    Cable Construction Items:

    2.1 Conductor

    Sectional Area AWG/mm 11/0.16±0.008TS

    material  Tinned Copper

    Sectional Area mm² 0.22

    Stranded Diameter mm 0.61

    2.2 Insulation

    Material PVC

    The average thickness mm 0.245

    Minimum Guage mm 0.21

    Color Red, Black, Yellow, White, Green, Orange, Blue,Brown

    Insulation Diameter mm 1.1±0.1

    2.3 Shielding Covering

    Screen Mode /

    Sectional Area AWG/ mm /

    Material /

    Total Diameter mm /

    2.4 Jacket

    Material PVC

    The average thickness mm 0.95

    Minimum Guage mm 0.81

    Color Black

    Overall Diameter mm 5.5±0.15

  3. 3. Overmolding

    Material PVC

    Plastic Hardness: 45P

    Color: Black

  4. 4. Electrical Performance:

    Rating voltage: 300V AC

    Rating Current: 5A

  5. 5. Mechanical Performance:

    5.1 overmolded side can withstand 5kgf axial tensile force for one minute without physical damage

    5.2 overmolded side can pass the bending test in 100 cycles at each

  6. 6. Temperature

    operating temperature, fixed installation: -40 to 80c deg.

Service: Wiring Harness OEM

Certificate: CE, RoHS
