Molex Micro-fit 3.0, 12 Pin Overmolded Cable Assemblies

Send Inquiry Now

Molex Micro-fit 3.0, 12 Pin Overmolded Cable Assemblies

Molex Micro-fit 3.0, 12 Pin Overmolded Cable Assemblies

Part Number:
MX-12P-3.0PH-C01

Keywords:
Molex Micro-fit 3.0, 12 Pin Connector Cable, Overmolded Cable Assemblies,

Description:
FLECONN can custom molex micro-fit 3.0 12 pin overmold connector cable for device and equipment's sensor and actuator power and signal transmission.

General Description:
Connector Series: Molex Micro-fit 3.0; Circuit Number: 12 Position / Pin / Pos / Pol; Wire Gauge: UL2464 24AWG*12C; Product Name: 12 Pin Overmolded Cable Assemblies

Product Description

Molex Micro-fit 3.0, 12 Pin Overmolded Cable Assemblies

FLECONN can custom molex micro-fit 3.0 12 pin overmold connector cable for device and equipment's sensor and actuator power and signal transmission.

I. Housing Series

1.1 Molex micro fit 43025 Series 3.0mm pitch wire-to-wire and wire-to-board receptacle housing

Circuits	Housing
12	43025-1200

II. Crimp Terminal

Crimp Terminal: 43030-0001

Applicable Wire: UL2464 24AWG*12C High Flexible Cable

Cable OD: 7.2mm

III. Product Specifications

1. Electrical Performance:
Rating voltage: 600V AC
Rating Current: 1.5A (24AWG)

2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

IV. Product Pictures

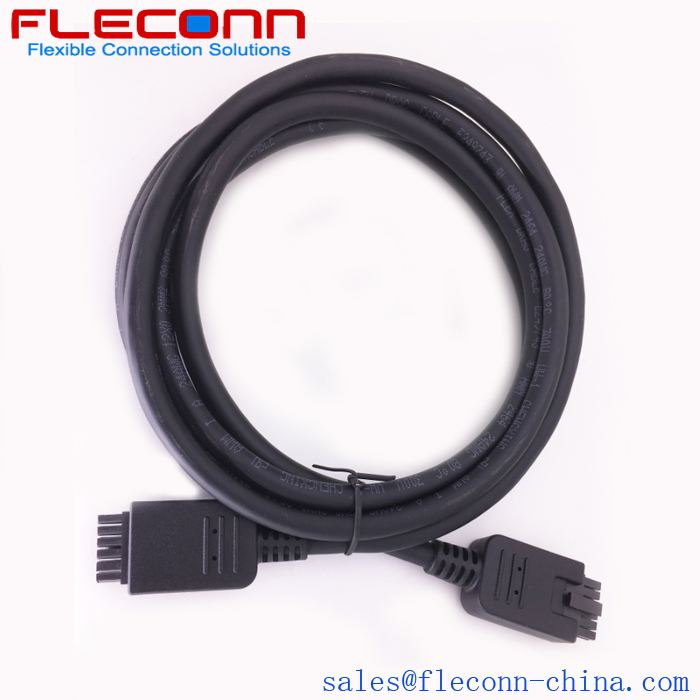

Molex Micro-fit 3.0 12 Pin molded Cable Assemblies and overmold wire harness

MMolex Micro-fit 3.0 12 Pin molded Cable Assemblies and overmold wire harness

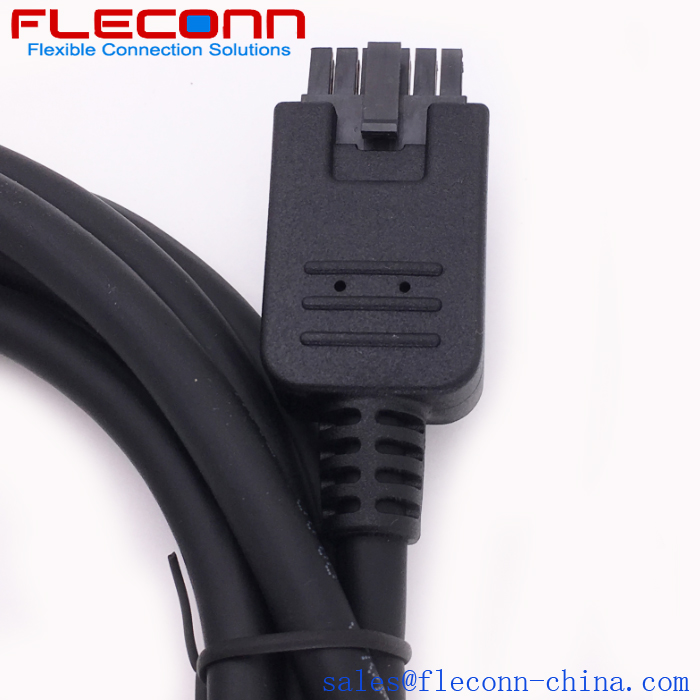

Molex microfit 3.0 Connector Cable

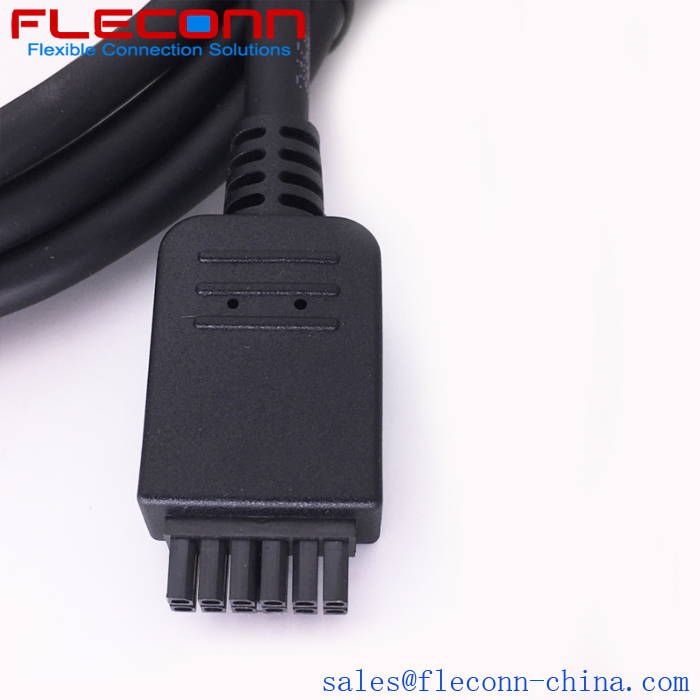

molex Micro fit 3.0 12 Circuit Overmolded Cable

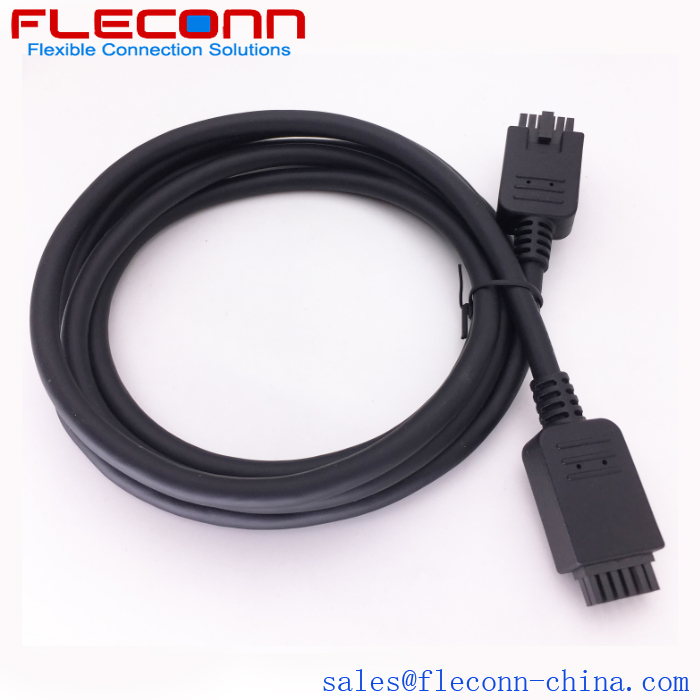

Molex microfit 3.0

Molex microfit 3.0.jpg

Molex Micro fit 3.0

Molex Micro fit 3.0.jpg
