Product Description:
FLECONN can assemble hirose df11 series connector wire harness with 2mm pitch double-row df11-12ds-2c 12 pin socket for device's power and signal transmission.
I. Features:
2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
1. Space-saving on Board Realized
2. Broad Variation
3. Applicable Wire Covers Wide Range
4. The ID Type Connector Achieves Connection Work
II. Housing Series
1.1 Hirose DF11 Series 2.0mm pitch wire-to-board dual row socket housing
Circuits | Housing |
4 | DF11-04DS-2C |
6 | DF11-06DS-2C |
8 | DF11-08DS-2C |
10 | DF11-10DS-2C |
12 | DF11-12DS-2C |
14 | DF11-14DS-2C |
16 | DF11-16DS-2C |
18 | DF11-18DS-2C |
20 | DF11-20DS-2C |
22 | DF11-22DS-2C |
24 | DF11-24DS-2C |
26 | DF11-26DS-2C |
28 | DF11-28DS-2C |
30 | DF11-30DS-2C |
32 | DF11-32DS-2C |
III. Crimp Terminal
Crimp Terminal: DF11-2428SCF
Applicable Wire: UL 1007 24-28AWG
Insulation OD: 0.9-1.45mm
IV. Product Specifications
1. Electrical Performance:
Rating voltage: 250V AC DC
Rating Current: 0.5-2A (18AWG)
2. Temperature
operating temperature, fixed installation: -40 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

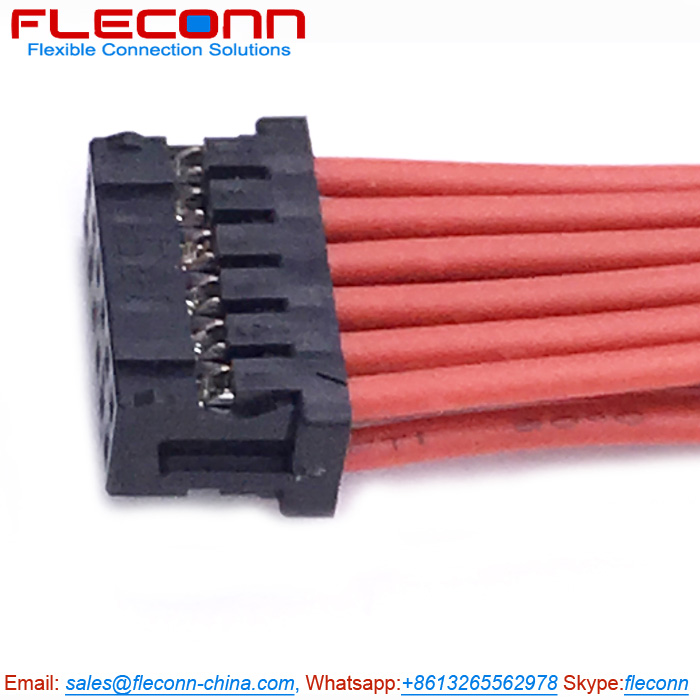

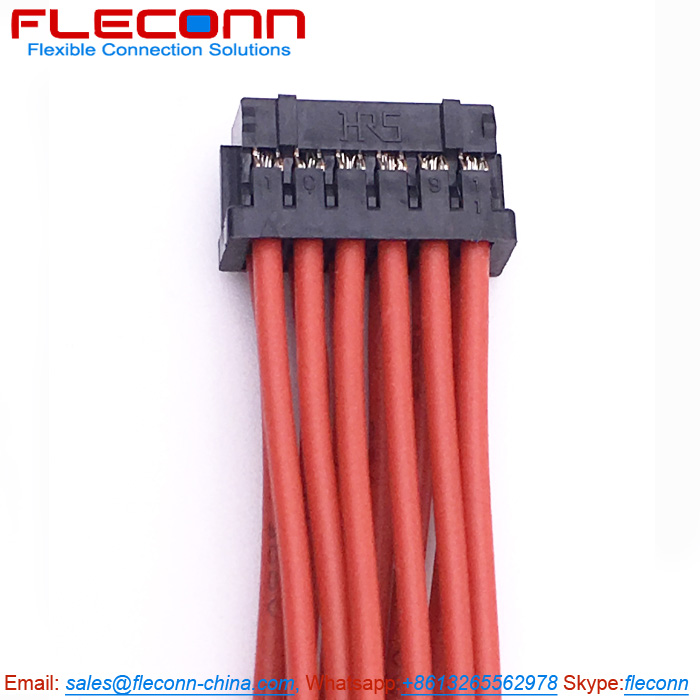

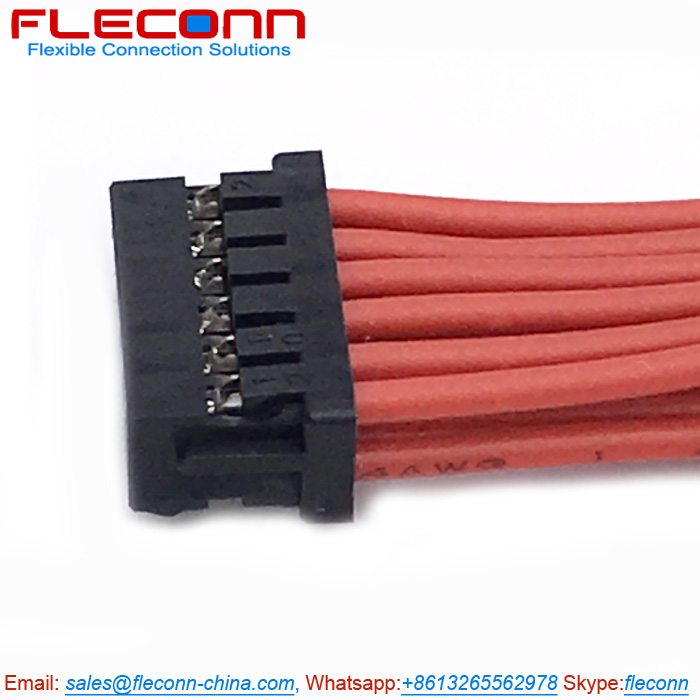

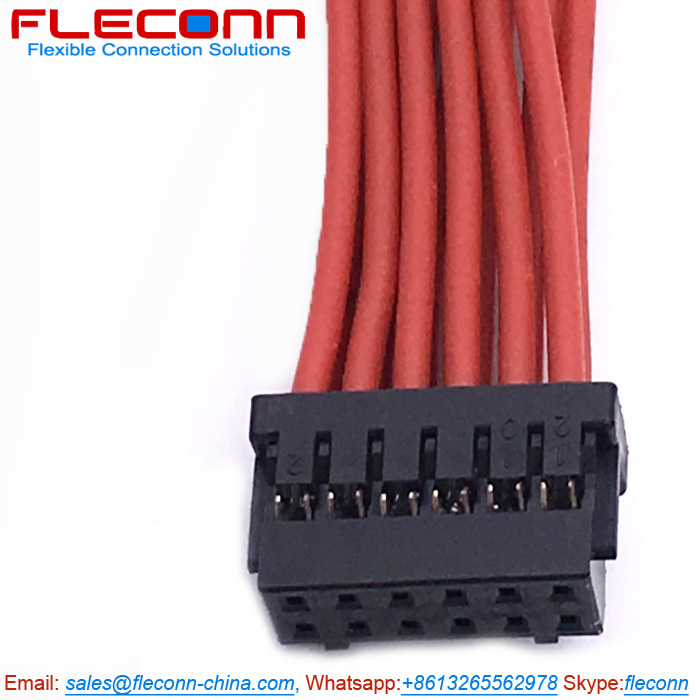

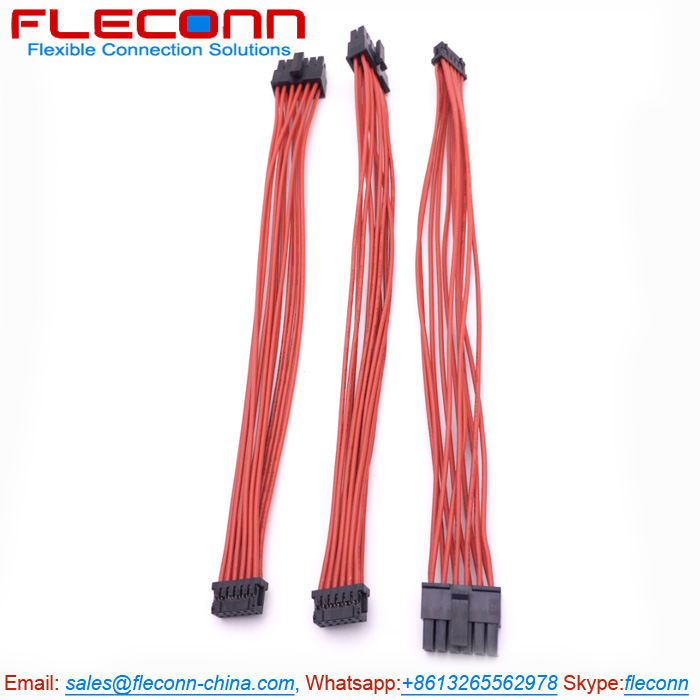

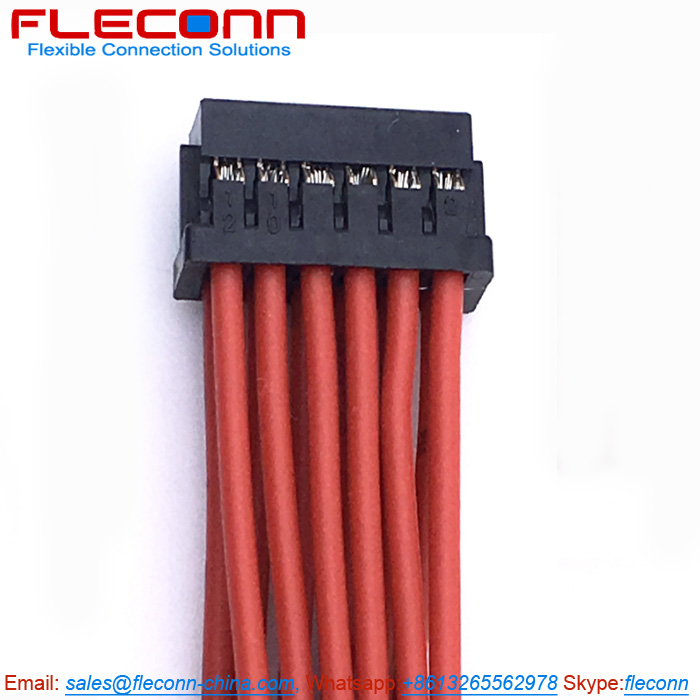

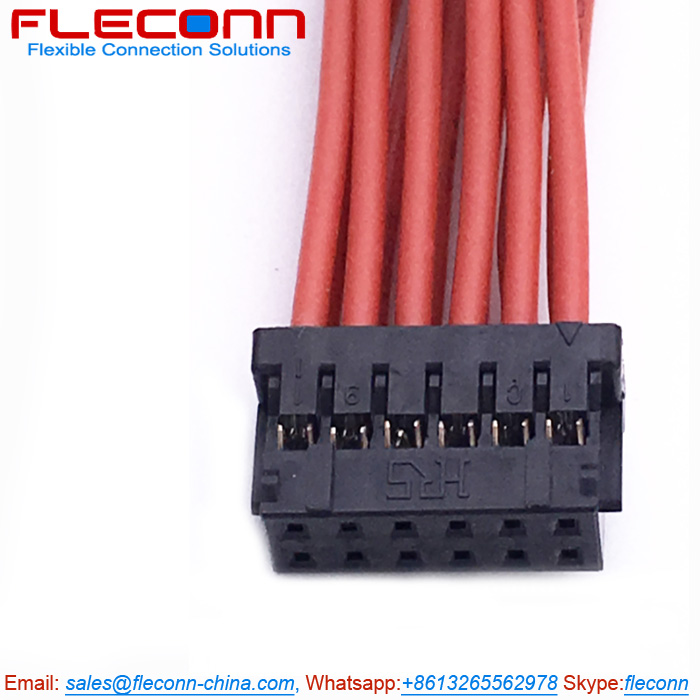

V. Product Pictures
