M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating
  • M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating
M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating

M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating

Part Number:
M8-F-A-PM-04
Keywords:
M8 4 Pin Connector, M8 4 Pin Female Connector, M8 4 Pin Female Panel Mount Connector
Description:
FLECONN can supply m8 4 pin female panel mount connector ip67 waterproof rating.
General Description:
Contact Body Type: Female. Coding Type: A Code. Plug Type: 180 degree straight type. Wiring Method: Soldering. Contacts number: 4 pin. Installation Method: Front Panel Mount, Rear Faston.

Product Description


M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating

FLECONN can provide m8 4 pin female panel mount connector ip67 waterproof rating for industry automation sensor systems.

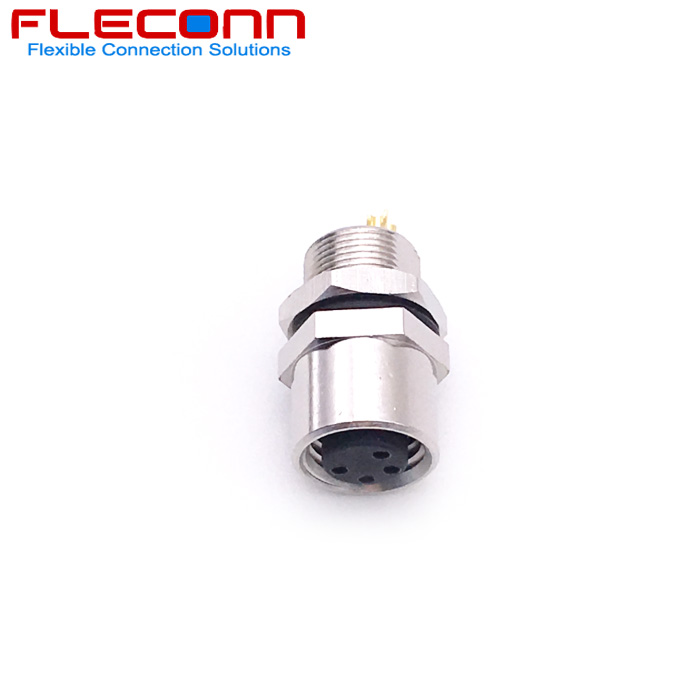

M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating.jpg

Next Product: M8 4 Pole Female Front Panel Mount Sensor Connector, Screwed from Rear


Product Features:

Products Type: M8 Circular Connector

Contact Body Type: Female

Coding Type: A Code

Plug Type: 180 degree straight type

Assembly Method: Soldering

Contacts number:  4 Pin

Installation Method: Rear Panel Mount

Part Number:M8-F-A-PM-04


The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm


Specification

Number of Contacts                   3,         4,        5,               6,       8

Rated Voltage                                      60V                           30V

Rated Current                                       4A                            1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                      0.8±0.03

Wire Gauge                                         24AWG                       26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated


Related Products with Rear Fastening Connector

M8 Panel Mount Connector Manufacturer and Supplier in China

IP67 Waterproof Circular M8 Connector, overmoulded M8 Cable

FLECONN can supply 3 4 5 6 8 pin pole male and female IP67 waterproof circular M8 connector, overmoulded M8 cable for small sensor and actuator
