M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails
  • M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails
M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails

M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails

Part Number:
M12-M-A-P2-6P
Keywords:
M12 6 Pin A Code Connector, M12 6 Pin Rear Panel Mount Connector, M12 6 Pin Panel Mount Connector with Pigtails
Description:
FLECONN can supply m12 6 pin a code male rear panel mount connector with pigtails.
General Description:
Products Type: M12 Rear Panel Mount Connector. Contact Body Type: Male. Coding Type: A Code. Contacts number: 6 Pin. Installation Method: Front Faston, Mounting Thread M12X1.

Product Description


M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails

FLECONN can supply m12 6 pin a code male rear panel mount connector with pigtails for the signal and DC power transmition of industry automation system.

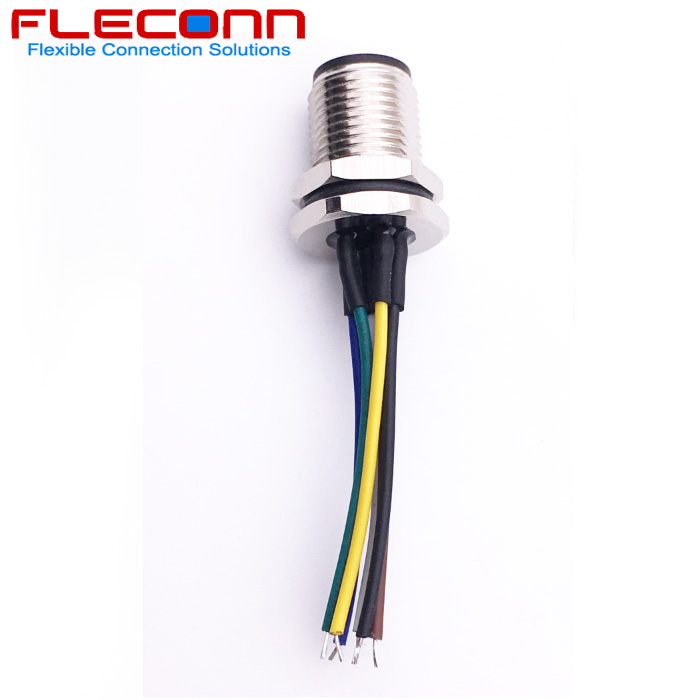

M12 6 Pin A Code Male Rear Panel Mount Connector with Pigtails.jpg

Last Product: M12 6Pin A-Coded Male Panel Mount Connector with UL1007 24AWG Single Wires

Next Product: M12 6 Position Male Straight Panel Mount Connector with Pigtails


Product Features:

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A Code

Plug Type: straight type

Wiring Method: Soldering

Contacts: 6 Pin

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-6P


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃


Specification

Number of Contacts  6

Rated Voltage 120V

Rated Current 3A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 1.0±0.03

Wire Gauge 24AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
