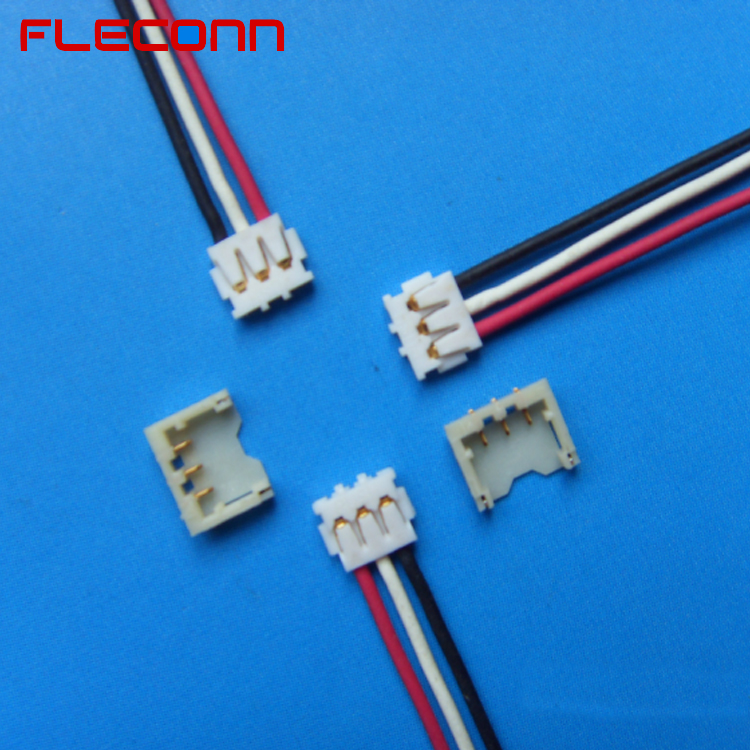

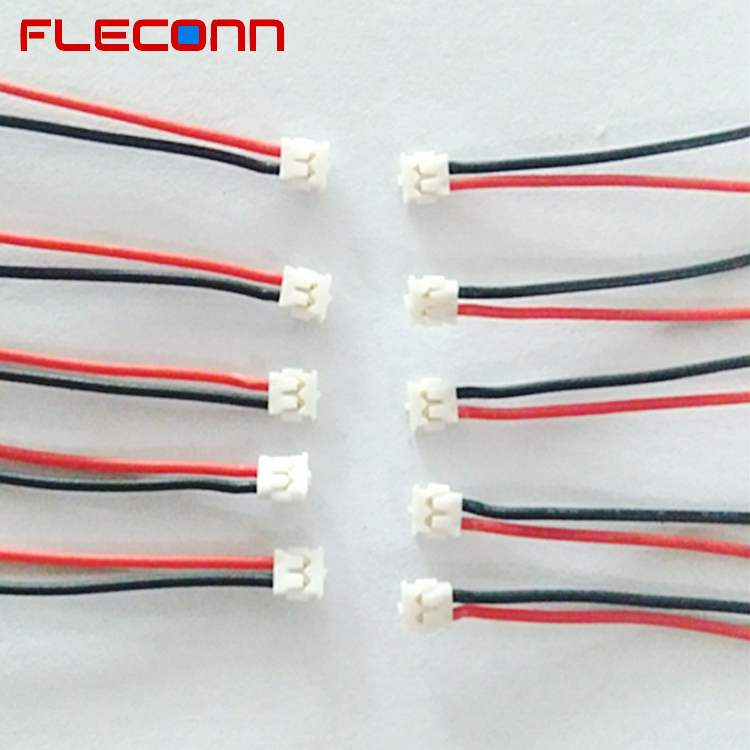

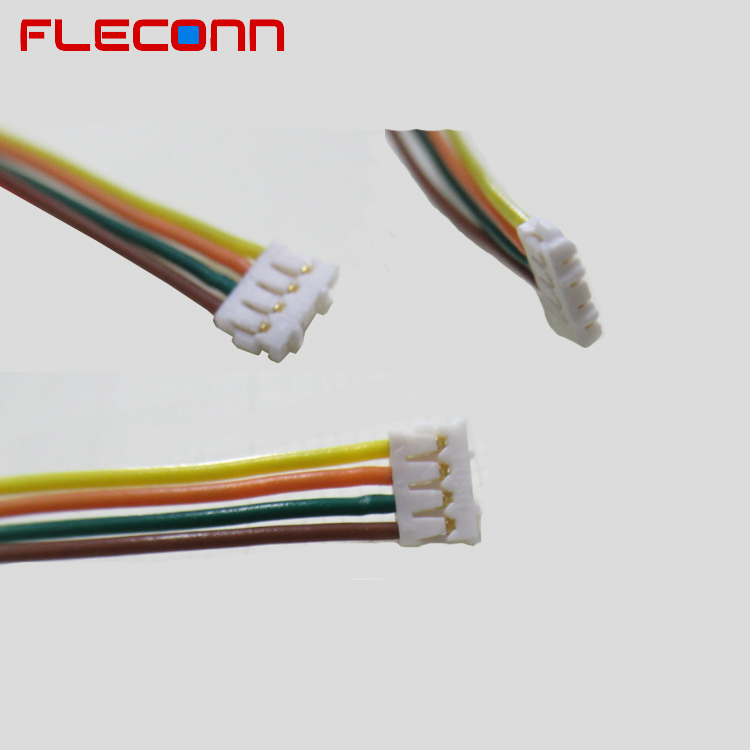

1.2mm Pitch 2 3 4 5 Pin JST ACH Connector Wire Harness for DC Power Supply

Part Number:
ACHR-02V-S, ACHR-03V-S, ACHR-04V-A-S, ACHR-05V-A-S

Keywords:
JST ACH connector wire harness, 1.2 mm Pitch dc power supply wire harness, 1.2mm pitch jst wire harness

Description:
FLECONN can custom 1.2mm Pitch 2 3 4 5 Pin JST ACH Connector Wire Harness for DC Power Supply.

General Description:

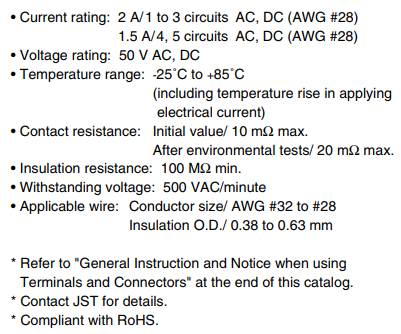

Pitch: 1.2mm, Current rating: 2A/1to3-circuit (AWG#28) 1.5A/4,5-circuit (AWG#28), Voltage rating, 50V, Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.38 to 0.63mm, Wire Stype: UL1571, UL1061

Product Description

1.2mm Pitch 2 3 4 5 Pin JST ACH Connector Wire Harness for DC Power Supply

Product Description:

FLECONN can custom jst ACH series connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

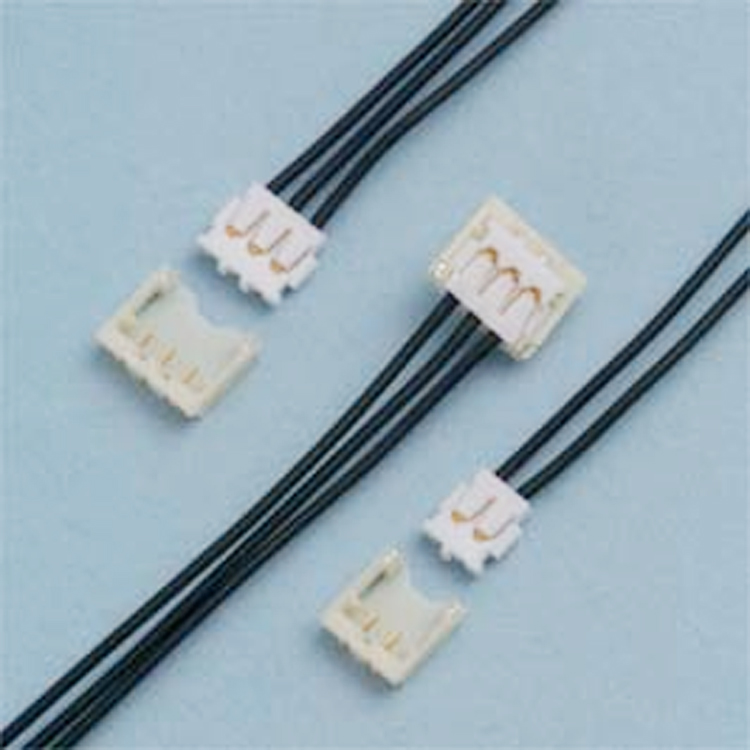

I. JST Housing Series
