Hirose DF13 Series, 8 Pin Wire Harness, DF13-8S-1.25C, 1.25mm Pitch Connector
  • Hirose DF13 Series, 8 Pin Wire Harness, DF13-8S-1.25C, 1.25mm Pitch Connector
Hirose DF13 Series, 8 Pin Wire Harness, DF13-8S-1.25C, 1.25mm Pitch Connector

Hirose DF13 Series, 8 Pin Wire Harness, DF13-8S-1.25C, 1.25mm Pitch Connector

Part Number:
WH-HRS-DF13-8S-1.25C-01
Keywords:
Hirose 8 Pin Wire Harness, HRS 1.25mm Pitch Wiring Harness, Hirose DF13 Series Wire Harness
Description:
FLECONN can custom wire harness assembly with Hirose 1.25mm pitch DF13 series 8 way connector for LED operating lamp control.
General Description:
Connector Housing: DF13-8S-1.25C; Crimp terminal: DF13-2630SCF; Series: DF13; Number of Positions: 8 Way; Contact Pitch: 1.25mm; Wire Size: AWG 32 30 28 26 Available

Product Description


Hirose DF13 Series, 8 Pin Wire Harness, DF13-8S-1.25C, 1.25mm Pitch Connector

FLECONN can custom wire harness assembly with Hirose 1.25mm pitch DF13 series 8 way connector for LED operating lamp control.


Product Name:Hirose DF13-8S-1.25C 8 Pin Wire Harness

Series:DF13

Connector Type: Socket

Cable Assembly: Yes

Number of Positions: 8

Number of Rows (Interface): 1


Product Pictures:

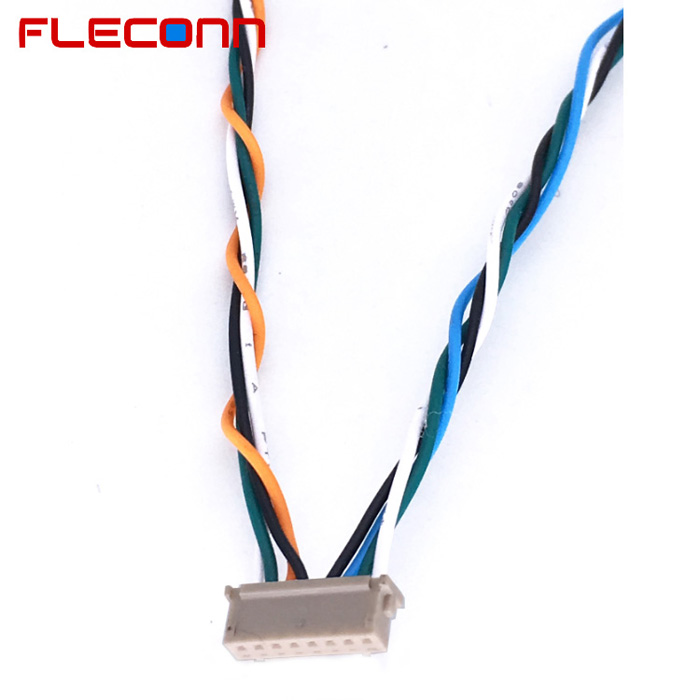

Hirose 1.25mm Pitch 8 Pin Wire Harness Assembly

Hirose 1.25mm Pitch 8 Pin Wire Harness Assembly

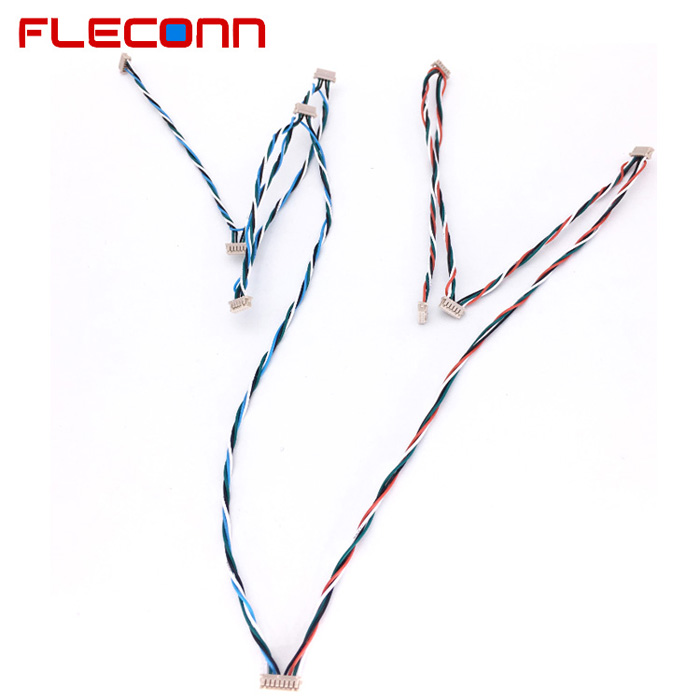

Hirose HRS DF13-8S-1.25C 8 Positions Wire Harness

Hirose HRS DF13-8S-1.25C 8 Positions Wire Harness.jpg

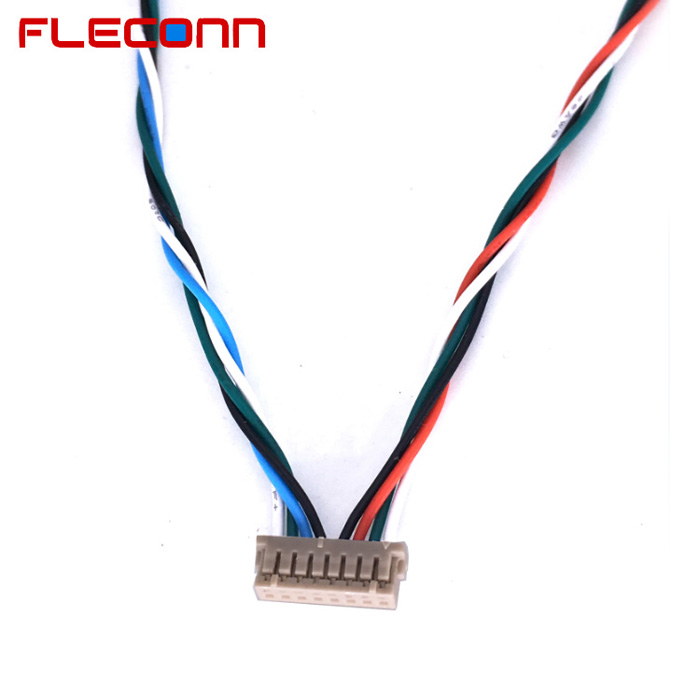

Hirose 1.25mm Pitch 8 Way Wire Harness

Hirose 1.25mm Pitch 8 Way Wire Harness.jpg

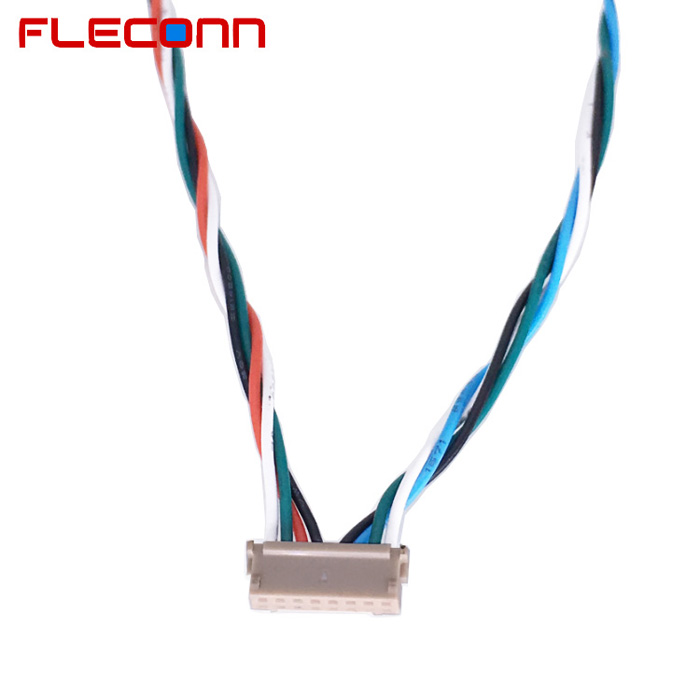

Hirose HRS DF13 Series Connector Wire Harness

Hirose HRS DF13 Series Connector Wire Harness.jpg

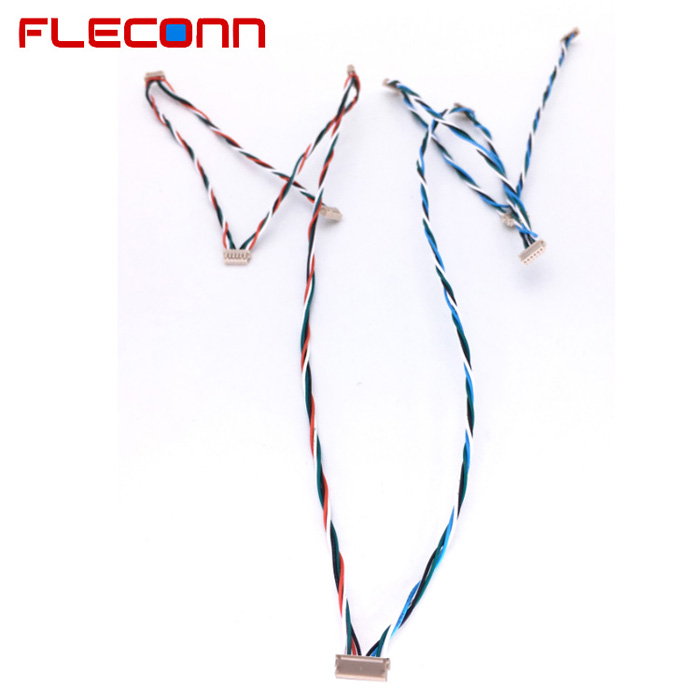

Hirose 1.25mm Pitch Wire to Board Wiring Harness

Hirose 1.25mm Pitch Wire to Board Wiring Harness.jpg

Hirose 8Pin Connector Wire Harness for LED Operating lamp Control

Hirose 8Pin Connector Wire Harness for LED Operating light Control board.jpg

Detailed Specifications

Last Updated On Nov. 25, 2017

Product information

Part No.DF13-8S-1.25C

CL No.CL0536-0007-0-00

Basic information

Connector TypeSocket

Cable AssemblyNo

Number of Positions8

Number of Rows (Interface)1

Mounting Pitch1.25 mm

Contact Pitch1.25 mm

Rated Current1 A

Rated Voltage (AC)AC 150 V

Mounting SideStandard on-Board

Wire Termination MethodCrimping

Recommended Wire TypeDiscrete wire

Recommended Wire Size (AWG)AWG 32 to 26

Operating Temperature-35 to 85 ℃

Glow Wire CompliantYes


Mechanical Specifications

Locking StyleFriction

Housing ColorBeige

Staggered LeadNo

KeyNo

Metal ShieldsNo


Electrical Specifications

Withstanding voltage500 V Max.

Dimensional Information

Connector Length11.65 mm

Connector Width3.2 mm

Connector Height4 mm

UL Style Wire/CableUL 1571, 1061

Wire Insulation Diameter0.520 to 1.000 mm
