M12 Male to Female Cable and Cordset, 3 Pin IP67 Waterproof Connector
  • M12 Male to Female Cable and Cordset, 3 Pin IP67 Waterproof Connector
M12 Male to Female Cable and Cordset, 3 Pin IP67 Waterproof Connector

M12 Male to Female Cable and Cordset, 3 Pin IP67 Waterproof Connector

Part Number:
M12-M-F-C03
General Description:

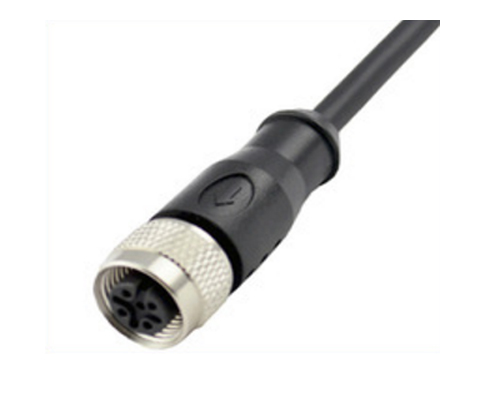

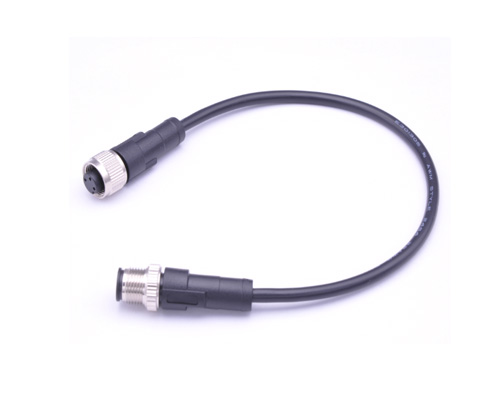

This is M12 male to female extension cable. The connectors are 3 pin A Coded IP67 waterproof protection and can be used in harsh industrial environment..

Product Description

M12 connectors conform to IEC 61076-2-104

Product Features:

Products Type: M12 Cordset

Contact Body Type: Male to Female

Coding Type: A Coding, B Coding.

Plug Type: 180 degree straight type

Wiring Method: Soldering

Contacts: 3 position

Part Number:M12-M-F-C03


Dimensions Drawing



The hole place arranges(Comply with the needle direction)



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ5.0-8.0mm


Specification

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                     60V             30V

Rated Current                                        4A                                        2A             1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                         22AWG                               22AWG              26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
