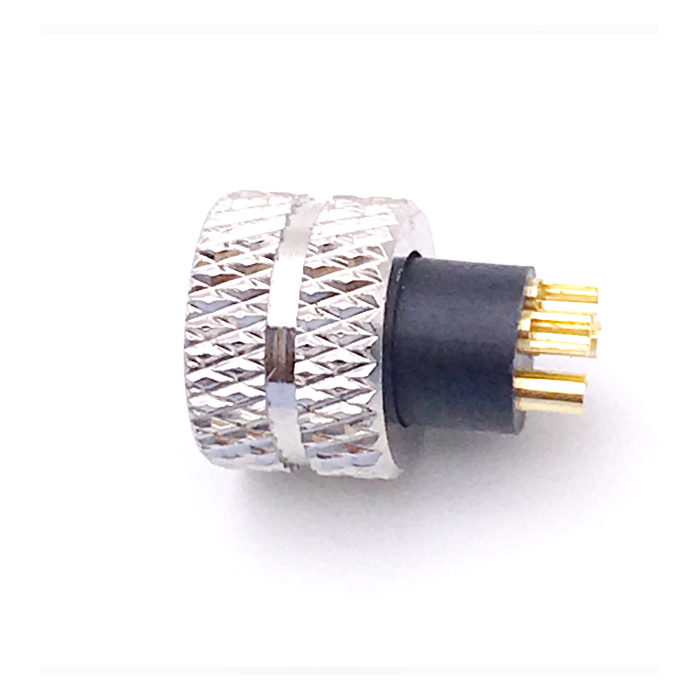

M8 Molding Type Connector, Solder Terminal, Female Cable Socket, 2 3 4 5 6 8 Pos
  • M8 Molding Type Connector, Solder Terminal, Female Cable Socket, 2 3 4 5 6 8 Pos
M8 Molding Type Connector, Solder Terminal, Female Cable Socket, 2 3 4 5 6 8 Pos

M8 Molding Type Connector, Solder Terminal, Female Cable Socket, 2 3 4 5 6 8 Pos

Part Number:
M8-F-A-M-03/04/05/06
Keywords:
M8 Connector, Molding Type, Female Socket
Description:
M8 female cable connector is widely applied in the fields of industry automation system, robots, various machine internal and external wiring.
General Description:
Products Type: M8 Round Connector. Contact Body Type: Female. Coding Type: A Coding. Plug Type: 180° straight type. Assembly Method: Overmolding. Contacts: 3 pin 4 pin 5 pin 6 pin.

Product Description

M8 connectors conform to IEC 61076-2-101

Product Features:

Products Type: M8 Circular Connector

Contact Body Type: Female

Coding Type: A Coding

Plug Type: 180 degree straight type

Wiring Method: Soldering

Contacts: 3 pin 4 pin 5 pin 6 pin

Installation Method: M8 Screw Locking

Part Number:M8-F-A-M-03/04/05/06


Dimensions Drawing



The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm


Specification

Number of Contacts                   3,         4,        5,               6,       8

Rated Voltage                                      60V                           30V

Rated Current                                       4A                            1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                      0.8±0.03

Wire Gauge                                         24AWG                       26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
