Product Description

M12 4 Position Right Angle Female Cordset with 10m UL2464 22AWG x 4C PVC Cable

FLECONN can custom overmolded m12 4 position right angle female cordset with 10m ul2464 22awg x 4c pvc cable for sensors and actuators.

Product characters for M12 4 Position Right Angle Cable

Contact Body Type: Female.

Coding Type: A-Code.

Connector Cable Shape:  90° right angle.

Terminal Connecting Method: solde wire;

Contacts number: 4 pin;

Cable lenght: 10 meters;

Cable Specifications: UL2464 AWG22 * 4C PVC Cable

Technique Specifications for this M12 Right Angle Female Cordset

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                    60V            30V

Rated Current                                        4A                                       1A              0.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                        22AWG                               26AWG            28AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Product Pictures for UL2464 22AWGX4C M12 Cable

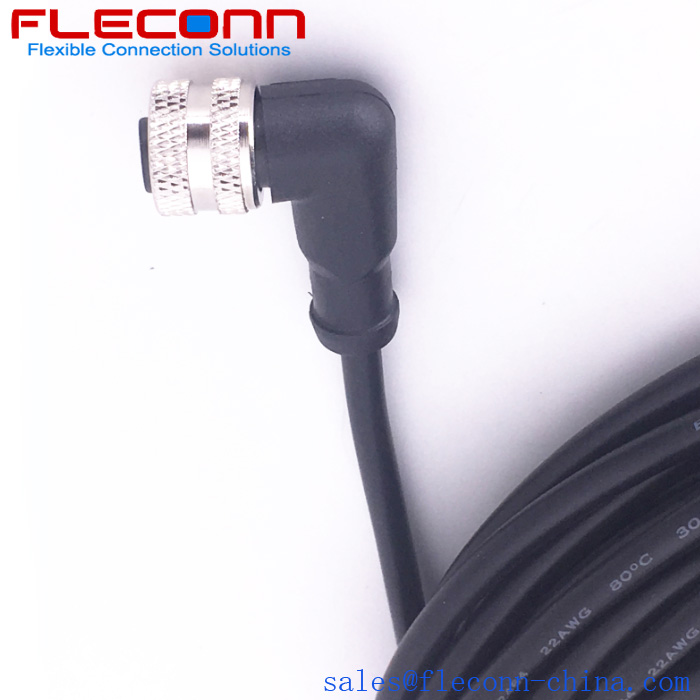

M12 4 Position Right Angle Female Cordset with 10m UL2464 22AWG x 4C PVC Cable
