M12 Cable Assembly

m12 Cable, m12 cable assembly, cable m12
FLECONN can custom overmolded A-Code B-Code D-Code X-Code 3 pos 4 pin 5 pin 8 pin 12 position male and female m12 connector cable assemblies for industry automation, sensor and actuator systems, DeviceNet, IO link and Profibus, Interbus, Industrial Ethernet, Machine Vision Camera, Industrial Camera, Profinet, Ethernet/IP and EtherCat, Motor, Frequency-convertors, motor operated switches, PSUs connection solutions. These molded m12 cable & Cordsets have four molding types such as straight, right angle, T-shape and Y-shape.

With the rapid development of industrial automation technology, automation system integrated more and more equipments, including sensors, actuators, etc. These devices need to have a stable and reliable cable to provide power supply and signal transmission, and need to work in the complex environment and with the function of waterproof, dustproof, corrosion resistant. M12 cables are rapidly developed in the case of growing demand.

M12 connector cable can be divided into soldering type, screw terminal type according to the connection methods. According to assembly methods, it can be divided into assembly type,molding type, panel mounting type. According to encoding mode, it can be divided into A-coding, B-coding, C-coding, D-coding, P-coding, S-coding, T-coding, X-coding. According to the shape, it can be divided into 180 degree straight M12 cable, 90 degrees right angled M12 connector cable, M12 T shape cables, M12 Y shape cables. At the same time it is also classified as two types of shielded and unshielded M12 cable. According to the pin or core number, there are 3 pin, 4 pin, 5 pin, 8 pin, 12 pin or 3 pole, 4 pole, 5 pole, 8 pole, 12 pole. The material of M12 cable jacket has PUR, PVC and so on.

FLECONN can custom M12 cable assemblies with different types and cable length from our customer requirements. Our products conform to the norms of RoHS, CE, UL and with good quality, reasonable price, fast delivery time.


M12 Cable Cordset Catalogue for Sensor, Acuator, Automation, Industry Ethernet Applications

M12 Connector Cable IP67 Waterproof Testing Video

M12 Extension Cable with 3 4 5 8 Pin Male to Female Connectors

M12 Extension Cable with 3 4 5 8 Pin Male to Female Connectors

Connector 1: m12 male plug; Connector 2: m12 female socket; Coding: A-Code, B-Code, D-Code, X-code; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 3 4 5 8 Pin; Cable length: 1 meter, 3ft;
M12 A-code 4 Pin Male 90 Degree Right Angle Cable

M12 A-code 4 Pin Male 90 Degree Right Angle Cable

Connector 1: m12 male plug, Coding: A-Code; Shape: 90 degree angle; Terminal Connecting Method: soldering; Contacts number: 4 Pin; Cable length: 1m, 3ft; Cable Specifications: UL2464 22AWG PVC Cable
M12 A-Code 4P RA Single Ended Cable Assembly

M12 A-Code 4P RA Single Ended Cable Assembly

Connector 1: m12 male plug, Coding: A-Coded; Shape: 90 degree angle; Terminal Connecting Method: soldering; Contacts number: 4P; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG PVC Cable
M12 4 Pin Female Right Angle Cable with Upper-Right Corner 45 Degree Keyway

M12 4 Pin Female Right Angle Cable with Upper-Right Corner 45 Degree Keyway

Connector 1: m12 female socket, Coding: A-Code; Shape: right angled; Terminal Connecting Method: soldering; Contacts number: 4 Pin; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG PVC Cable
M12 4P Female Right Angle Single Ended Cable Assembly

M12 4P Female Right Angle Single Ended Cable Assembly

Connector 1: m12 female socket, Coding: A-Coded; Shape: 90 degree angle; Terminal Connecting Method: soldering; Contacts number: 4 Pin; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG PVC Cable

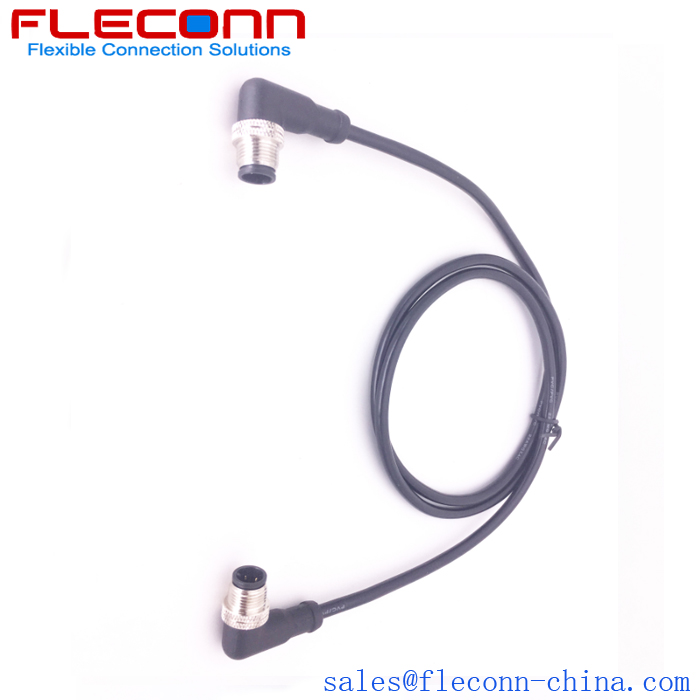

M12 4-Poles Male Right Angle To Male Right Angle Double-Ended Cable Sensor Cordset

M12 4-Poles Male Right Angle To Male Right Angle Double-Ended Cable Sensor Cordset

Plug 1 & 2: m12 male connector, Coding: A-Coded; Shape: 90 degree angle; Terminal Connecting Method: soldering; Contacts number: 4-poles; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG PVC Cable
M12 Male To Male Double Ended Cable, Right Angle, A-Coded 3p 4p 5p 8p Connector Cable

M12 Male To Male Double Ended Cable, Right Angle, A-Coded 3p 4p 5p 8p Connector Cable

Plug 1 & 2: m12 male connector, Coding: A-Coded; Shape: right angle; Terminal Connecting Method: soldering; Contacts number: 3P 4P 5P 8P; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG 24AWG 26AWG 28AWG PVC Cable
M12 Male to M12 Female Cable, 3 4 5 8 Pin, Right Angle, A-Code, 1M

M12 Male to M12 Female Cable, 3 4 5 8 Pin, Right Angle, A-Code, 1M

Plug 1: m12 male connector, plug 2: m12 female Socket: Coding: A-Code; Shape: right angled; Terminal Connecting Method: soldering; Contacts number: 3 4 5 8 pins; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG 24AWG 26AWG 28AWG PVC Cable
M12 A-Coded 4 Pin Female to Female Right Angle Double Ended Cable Assembly

M12 A-Coded 4 Pin Female to Female Right Angle Double Ended Cable Assembly

Plug 1 & 2: M12 Female Socket: Coding: A-Coded; Shape: right angle; Terminal Connecting Method: soldering; Contacts number: 4 positions; Cable length: 1 meter, 3ft; Cable Specifications: UL2464 22AWG X 4C PVC Cable
M12 Male to M12 Male Cable, Straight to Straight, 4 5 8 Positions

M12 Male to M12 Male Cable, Straight to Straight, 4 5 8 Positions

Connector 1 &2 : m12 straight male plug: Coding: A Coded, B Coded, D Coded; Shape: straight; Contacts number: 3 4 5 8 12 pin; Cable length: 3M
M12 Male to Female Cable, 4 5 8 Pin, Straight to Right Angle Connector Cable

M12 Male to Female Cable, 4 5 8 Pin, Straight to Right Angle Connector Cable

Connector 1: m12 straight male plug: Connector 2: m12 right angle female socket: Coding: A-Coding, B-Coding, D-Coding; Contacts number: 4 5 8 pin; Cable length: 3M; Cable Specifications: UL2464 22AWG X 4C/5C 28AWG X 8C PVC Cable
M12 4 Pin Male to Female Straight Cable, A-Coded Aviation Plug to Socket Cordset

M12 4 Pin Male to Female Straight Cable, A-Coded Aviation Plug to Socket Cordset

Connector 1: m12 straight male plug: Connector 2: m12 straight female socket: Coding: A-Code, B-Code, D-Code; Shape: straight; Contacts number: 4 pin; Cable length: 3M; Cable Specifications: UL2464 22AWG X 4C PVC Cable
M12 Female to Female Cable, 4 Pin Straight to Straight Connector Cable

M12 Female to Female Cable, 4 Pin Straight to Straight Connector Cable

Connector 1 & 2: M12 Female Socket: Coding: A-Coded, B-Coded, D-Coded; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 4 pin/5 pin; Cable length: 3M; Cable Specifications: UL2464 22AWG X 4C/5C PVC Cable
M12 4 5 Position Female Right Angle to Female Right Angle Cable

M12 4 5 Position Female Right Angle to Female Right Angle Cable

Connector 1 & 2: M12 Female Socket: Coding: A-Coded, B-Coded, D-Coded; Shape: right angle; Terminal Connecting Method: soldering; Contacts number: 4 pin/5 pin; Cable length: 1M; Cable Specifications: UL2464 22AWG X 4C/5C PVC Cable
M12 to M12 Cable, 4 Pin Female to Female, Right Angle to Right Angle Cordset

M12 to M12 Cable, 4 Pin Female to Female, Right Angle to Right Angle Cordset

Plug 1 & 2: M12 Female Socket: Coding: A-Coded; Shape: right angle; Terminal Connecting Method: soldering; Contacts number: 4 pin; Cable length: 1 meter, 10ft; Cable Specifications: UL2464 22AWG X 4C PVC Cable
M12 3 4 5 6 8 12 Pin Male Cable, A-Coded, Straight, PVC Jacket Cable

M12 3 4 5 6 8 12 Pin Male Cable, A-Coded, Straight, PVC Jacket Cable

Connection body polarity: Male; Coding: A-Coded; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 3 4 5 6 8 12 Pin available; Cable length: 3 meter; Cable Specifications: UL2464 AWG22 X **C PVC Cable
M12 4Pin Cable, A-Code, Male, Straight Overmolding Cable

M12 4Pin Cable, A-Code, Male, Straight Overmolding Cable

Connection body polarity: Male; Coding: A-Code; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 4pin; Cable length: 3 meter; Cable Specifications: UL2464 AWG22 * 4C PVC Cable
M12 4 Pin Male Cable, Straight Plug To Free End Cordset, 1M 2M 3M 5M

M12 4 Pin Male Cable, Straight Plug To Free End Cordset, 1M 2M 3M 5M

Connection body polarity: Male; Coding: A-Coded; Shape: straight; Terminal Connecting Method: soldering; Contacts number: 4 Pin; Cable length: 1m 2m 3m 5m available; Cable Specifications: UL2464 AWG22 * 4C PVC Cable
