M8 5 Pos Position Female Panel Mount Connector with Solder Cups

FLECONN can m8 5 pos position female panel mount connector with solder cups for industry automation sensor systems.

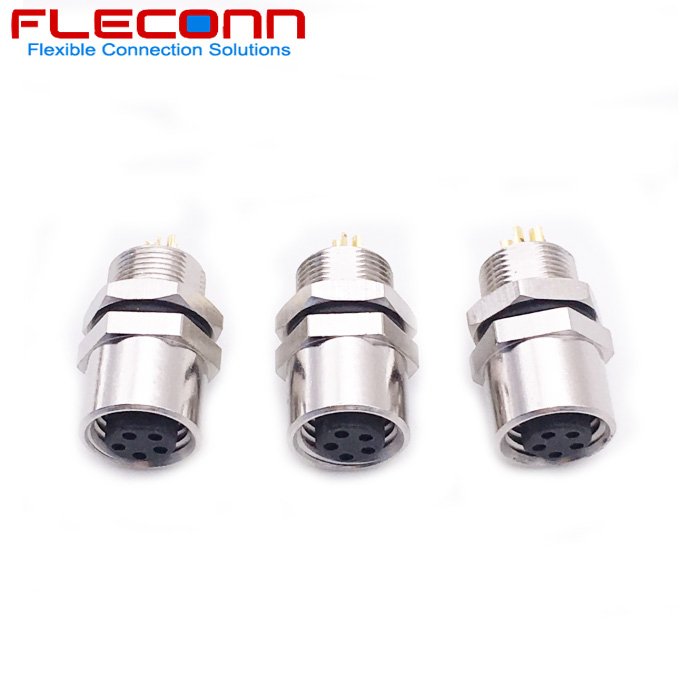

M8 5 Pos Position Female Panel Mount Connector with Solder Cups.jpg

Last Product: M8 5Pin Female Panel Mount Connector, Fixing Thread M8 x 0.5

Next Product: M8 Female Panel Mount Receptacle, 5 Contacts, Rear Faston Metal Nut


Product Features:

Products Type: M8 Circular Connector

Contact Body Type: Female

Coding Type: A Coding

Plug Type: 180 degree straight type

Assembly Method: Soldering

Contacts number:  5 Position / Pos

Installation Method: Rear Panel Mount

Part Number:M8-F-A-PM-05


The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm


Specification

Number of Contacts                   3,         4,        5,               6,       8

Rated Voltage                                      60V                           30V

Rated Current                                       4A                            1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                      0.8±0.03

Wire Gauge                                         24AWG                       26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
