Product Description

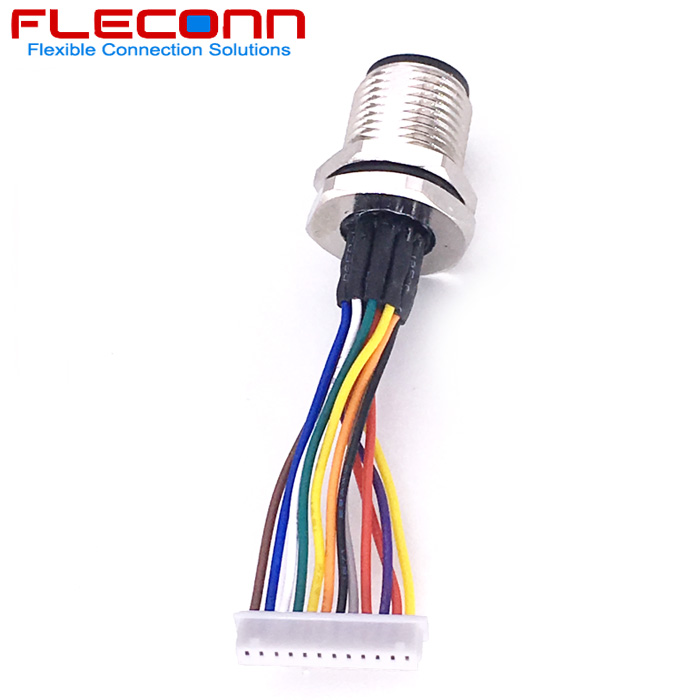

M12 12 Pole Male Connector, Front Faston, A-Code, Fixing Thread M12x1

FLECONN can supply m12 12 pole male connector with front faston a-code panel mount installation for the signal and DC power transmition of industry automation system.

Last Product: M12 12 Pin Male Connector to Molex 1.25mm Pitch Connector Wire Harness

Next Product: M12 12 Pos Rear Mount Connector with Mounting Thread M12X1

Product Features：

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A-Code

Plug Type: straight type

Wiring Method: Soldering

Contacts: 12 Pole

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-12P

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts  12

Rated Voltage 30V

Rated Current 1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 0.6±0.03

Wire Gauge 26AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
