Product Description

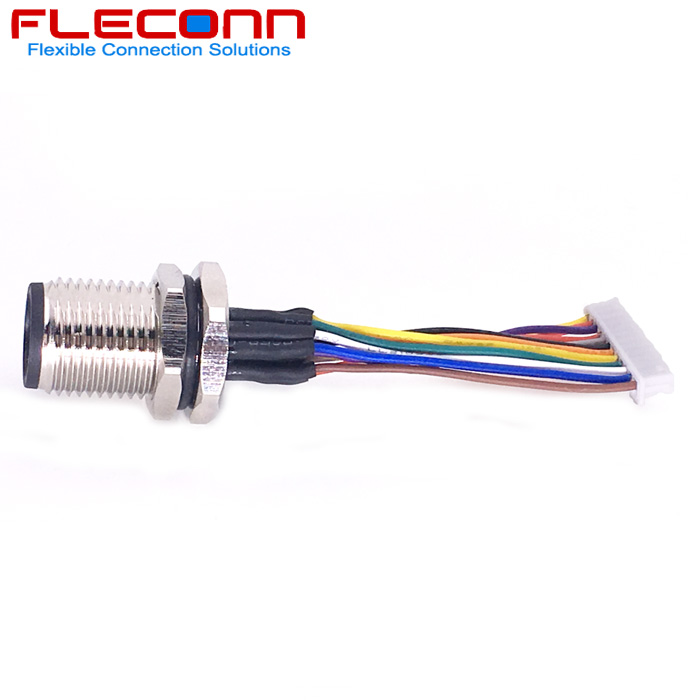

M12 12 Position Male Panel Mount Connector with Pigtails, screwed from front.

FLECONN can supply m12 12 position male panel mount connector with pigtails for the signal and DC power transmition of industry automation system.

Last Product: M12 12 Pos Rear Mount Connector with Mounting Thread M12X1

Next Product: M12 12P Panel Mount Connector to Molex 1.25mm Pitch PicoBlade 51021-1200 Wire Harness

Product Features：

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: straight type

Wiring Method: Soldering

Contacts: 12 Positions

Installation Method: screwed from front.

Part Number: M12-M-A-P2-12P

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts  12

Rated Voltage 30V

Rated Current 1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 0.6±0.03

Wire Gauge 26AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
